41
 




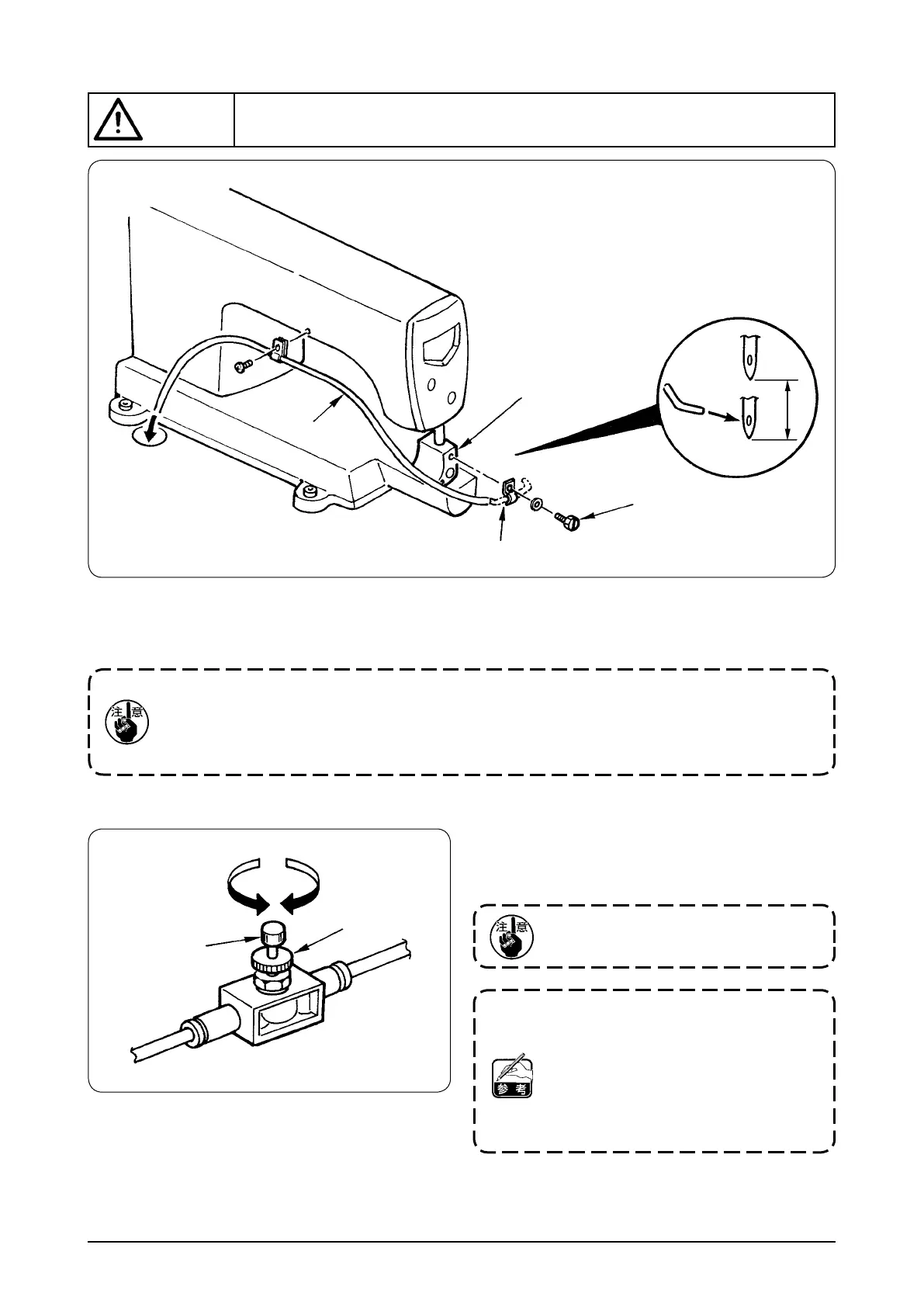

1) 押え台
1
に針冷却パイプ(組)
2
をねじ
3
で取り付けます。
2) 針冷却パイプの先端は、針棒上死点から 10 mm 下がった位置の針穴に向くように調整してください。
3) 針冷却パイプのエアーチューブ
4
はテーブルの穴 A を通して、スピードコントローラに接続します。




 
1) ロック用ナット
1
をゆるめ、ツマミ
2
を回して、
冷却用エアーの強さを調整します。
縫いに影響を与えない範囲で調整してください。

1


  





1
2



3
1
4
2
