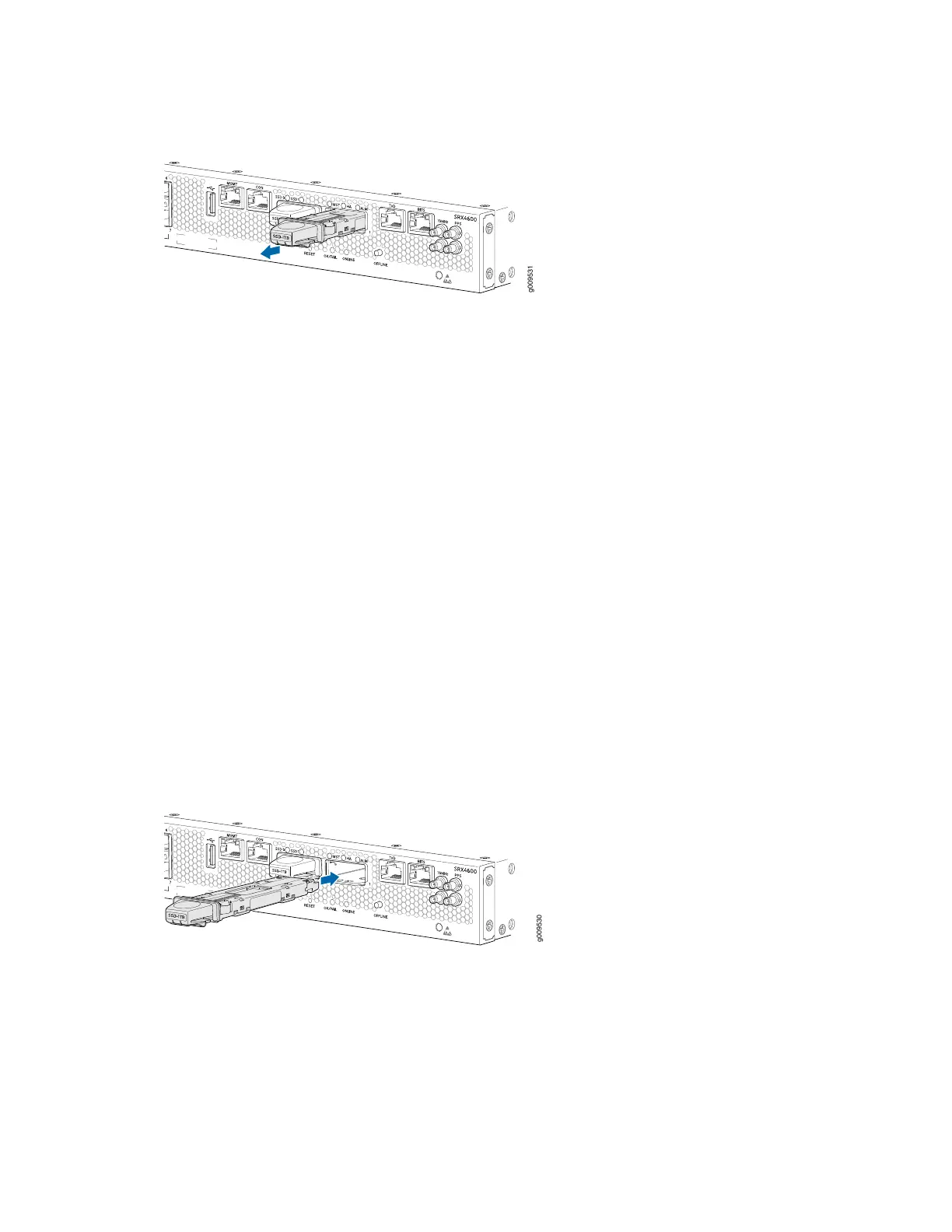

Figure 40: Removing an SSD
Installing an SSD in an SRX4600 Services Gateway
You need to power off the SRX4600 Services Gateway to install a SSD into the services gateway.
Ensure that you have the following equipment available:
•
ESD grounding strap
To install an SSD, see (Figure 41 on page 102):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on
the chassis.
2. Hold the SSD by its handle and slide it gently into its slot until the tab below the handle locks into the
SSD slot.
3. Follow the procedure in “Creating a Bootable USB Flash Drive to Install Junos OS on an SRX4600
Services Gateway” on page 103 if the new SSD has no Junos OS installed on it.
Figure 41: Installing the SSD
102
