Juniper SRX4600

Locating the Serial Number ID Labels on SRX4600 Services Gateway Power Supplies
The power supplies installed in an SRX4600 services gateway are field-replaceable units (FRUs). For each
FRU, you must remove the FRU from the services gateway chassis to see the FRU serial number ID label.
•
AC power supply—The serial number ID label is on the top of the AC power supply. See
Figure 47 on page 143.

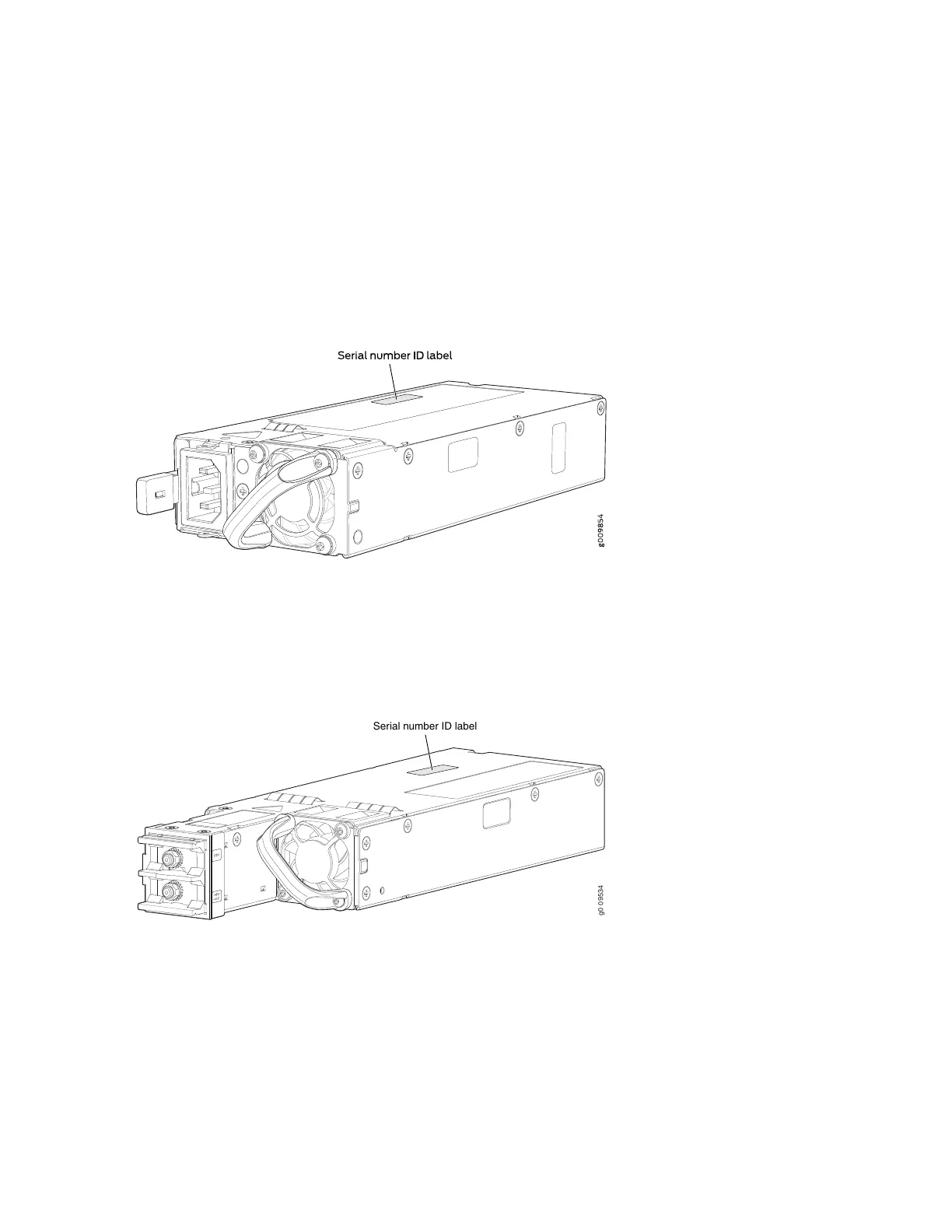

Figure 47: SRX4600 Services Gateway AC Power Supply Serial Number Location
•
DC power supply—The serial number ID label is on the top of the DC power supply. See
Figure 48 on page 143.
Figure 48: SRX4600 Services Gateway DC Power Supply Serial Number Location
g0 0 9534
Serial number ID label
Locating the Serial Number ID Labels on SRX4600 Services Gateway Fan Modules
The five fan modules installed in an SRX4600 Services Gateway are field-replaceable units (FRUs). For
each FRU, you must remove the FRU from the services gateway chassis to see the FRU serial number ID
label.
143
