Juniper SRX4600

2. Connect the other end of the Ethernet cable to the console server (see Figure 26 on page 72) or
management console (see Figure 27 on page 72).

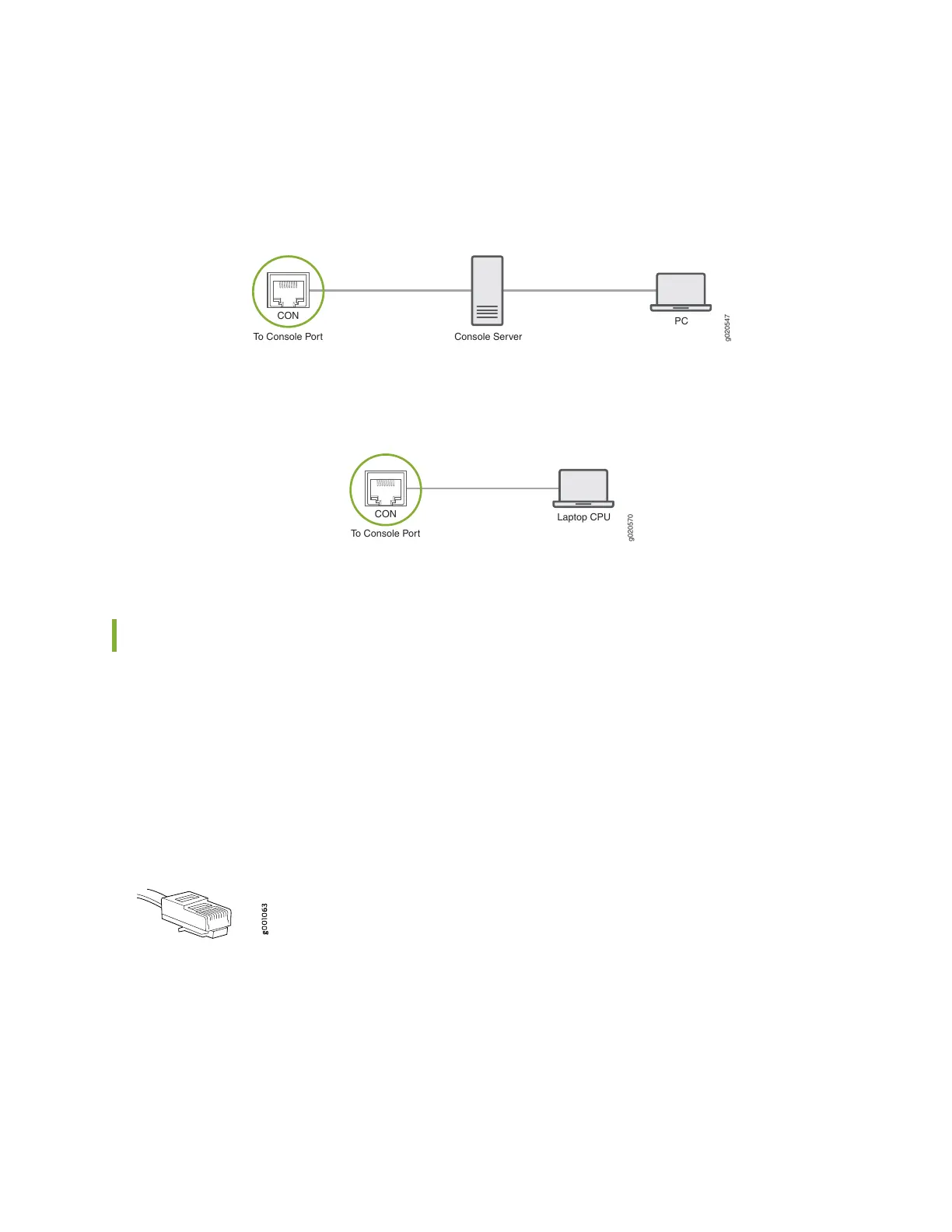

Figure 26: Connecting a Device to a Management Console Through a Console Server
g020547
PC
To Console Port Console Server
CON
Figure 27: Connecting a Device Directly to a Management Console
g020570
Laptop CPU
To Console Port
CON
Connecting a Device to a Network for Out-of-Band Management
You can monitor and manage these devices by using a dedicated management channel. Each device has
a management port to which you can connect an Ethernet cable with an RJ-45 connector. Use the
management port to connect the device to the management device.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. Figure 28 on page 72
shows the RJ-45 connector of the Ethernet cable supplied with the device.
Figure 28: RJ-45 Connector on an Ethernet Cable
To connect a device to a network for out-of-band management (see Figure 29 on page 73):
1. Connect one end of the Ethernet cable to the management port (labeled MGMT or ETHERNET) on
the device.
2. Connect the other end of the Ethernet cable to the management device.
