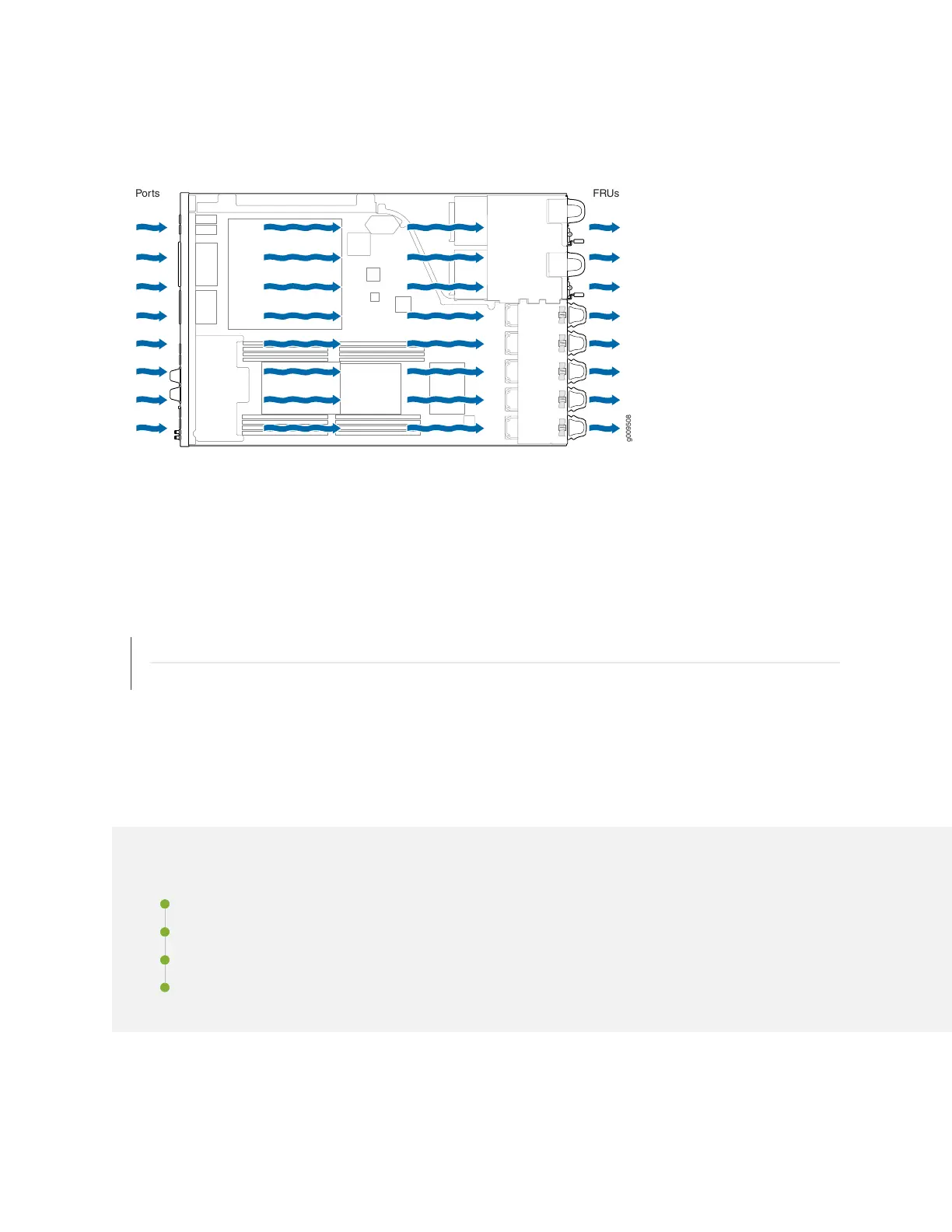

Figure 14: Airflow Through Chassis
The airflow out (AFO) fan modules draw air through vents on the front of the services gateway chassis
and exhaust the air through the back of the chassis.
RELATED DOCUMENTATION
Clearance Requirements for Airflow and Hardware Maintenance for SRX4600 Services Gateways | 49
Maintaining the SRX4600 Cooling System | 85
SRX4600 Power System
IN THIS SECTION
Understanding the SRX4600 Services Gateway Power Supply | 36
SRX4600 Services Gateway AC Power Supply Specifications | 39
SRX4600 Services Gateway AC Power Cord Specifications | 40
SRX4600 Services Gateway DC Power Supply Specifications | 41
