2. Position the grounding lug over the protective earthing terminal on the side of the chassis, which is
visible through the mounting bracket.
3. Secure the grounding lug to the protective earthing terminal with the two washers and screws. See
Figure 30 on page 75.

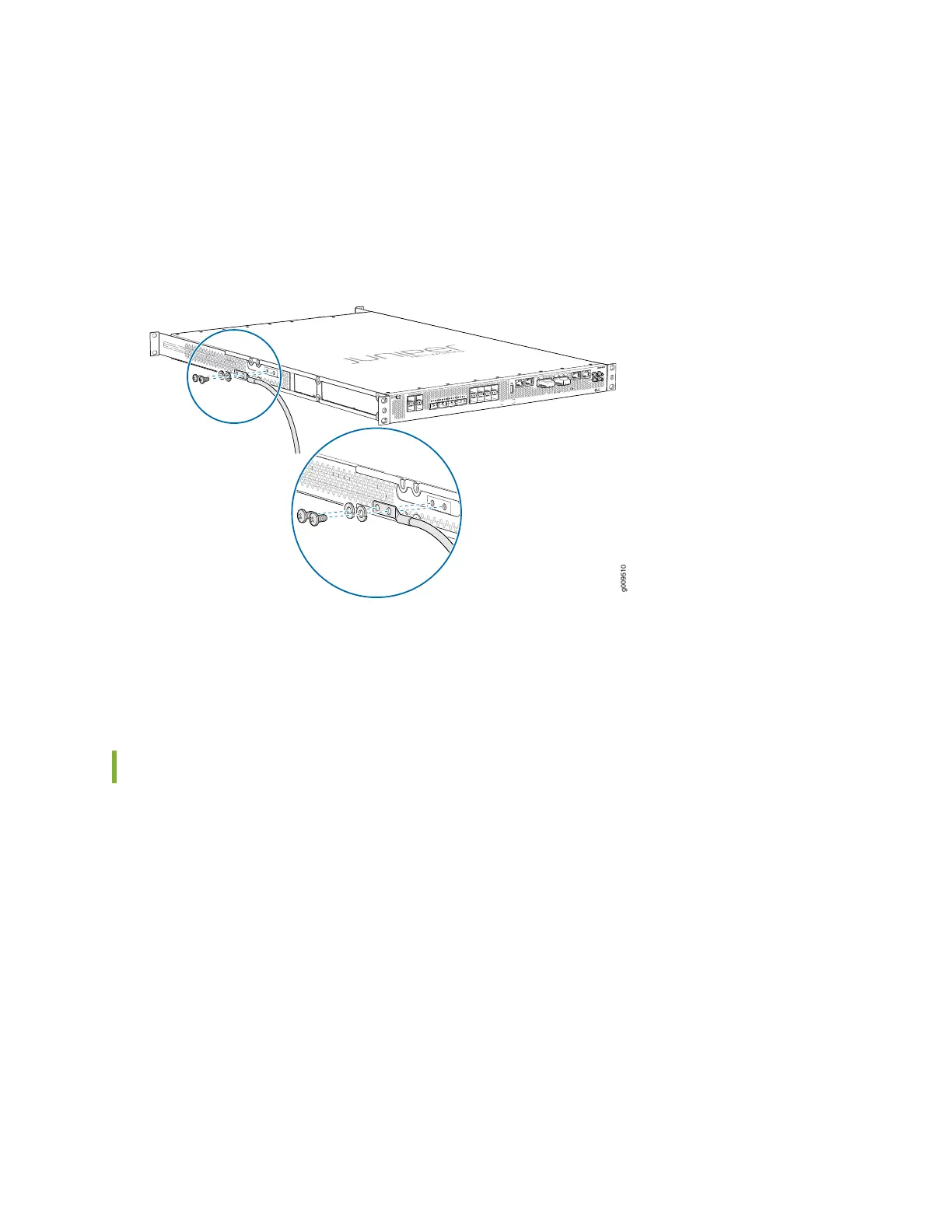

Figure 30: Connecting a Grounding Cable to an SRX4600 Services Gateway
4. Dress the grounding cable and ensure that it does not touch or block access to other device components
and that it does not drape where people could trip over it.
Connecting AC Power to an SRX4600 Services Gateway
The SRX4600 Services Gateway is shipped from the factory with two power supplies. Each power supply
is a field-replaceable unit (FRU). You can install replacement power supplies without powering off the
services gateway or disrupting the services gateway function.
Ensure that you have a power cord appropriate for your geographical location available to connect AC
power to the services gateway.
Before you begin connecting AC power to the services gateway:
•
Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage
(see “Prevention of Electrostatic Discharge Damage” on page 181).
•
Ensure that you have connected the services gateway chassis to earth ground.
