Performance Tests 1
Keysight 53210A/53220A/53230A Assembly Level Service Guide 57

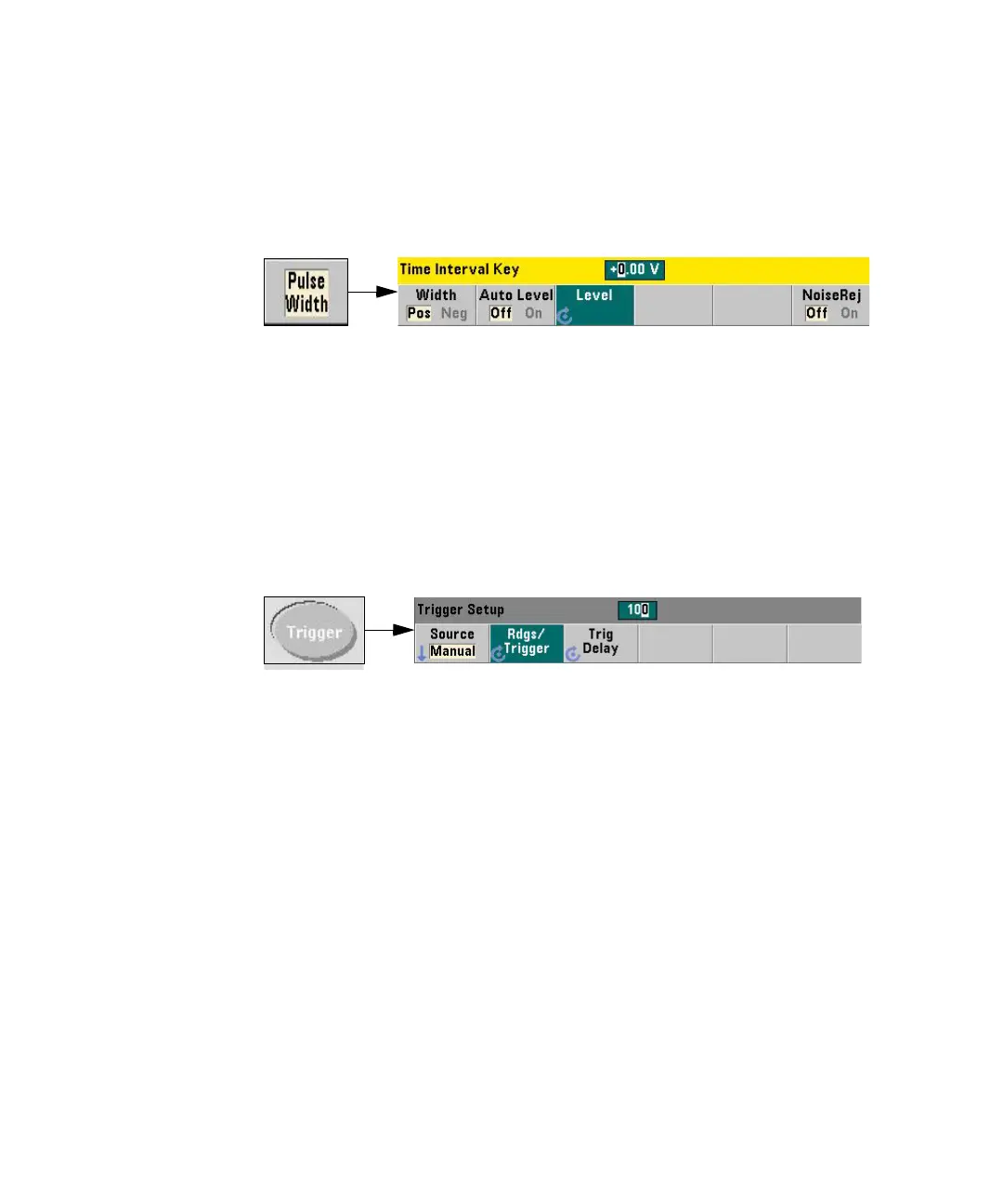

4 Press the Pulse Wid th softkey.
– The following softkeys are displayed:
5 Press and set:
–Set width: pos
–auto level: Off
– Input level: +0.00 V
– Set noise rejection: Off
6 Press the Trigger key.
Front panel display shows:
7 Press and set:
–Source: Manual
– Wait For Trig is displayed
– Rdgs/Trigger: 100
–Trig Delay: 0 Seconds
