1 Performance Tests
58 Keysight 53210A/53220A/53230A Assembly Level Service Guide

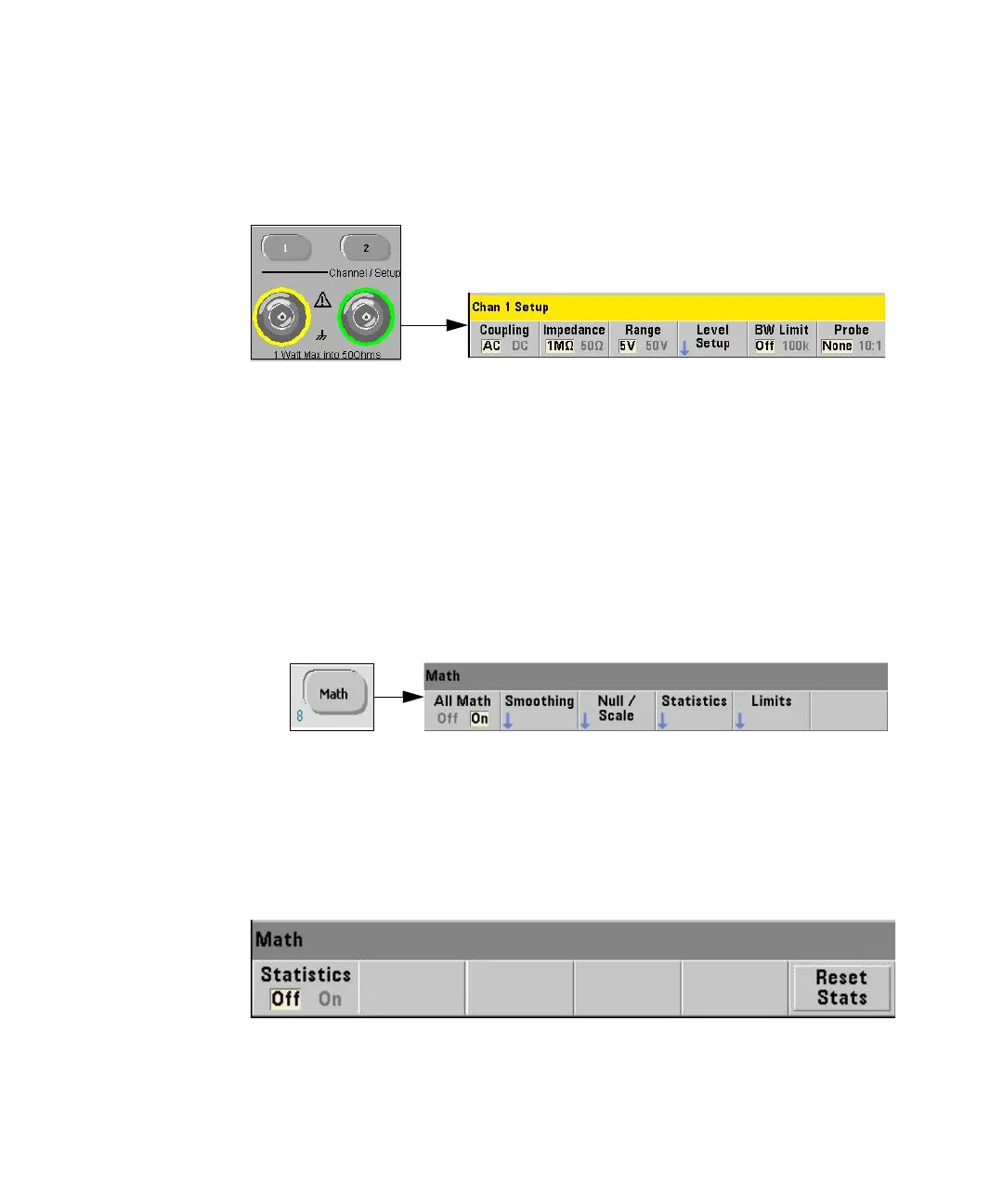

8 Press the Channel 1 key:
– The Channel 1 Setup softkeys are displayed:
9 Press and set:
– Coupling: DC
– Input Impedance: 50 Ω
– Range: 5 V
–BW Limit: OFF
10 Press the Math key.
– The following softkeys are displayed:
11 Press and set:
–All math: On
12 Press the Statistics softkey:
–The Statistics softkeys are displayed:
