106 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide
11 Triggers
Rise/Fall Time Trigger
On DSOX1200-Series oscilloscopes, the Rise/Fall Time trigger looks for a rising or
falling transition from one level to another level in greater than or less than a
certain amount of time.
1 Press the [Trigger] key.
2 In the Trigger menu, press the Trigger Type softkey.
3 Press the Trigger Type softkey; then, turn the Entry knob to select Rise/Fall Time.
4 Press the Source softkey, and turn the Entry knob to select the input channel
source.

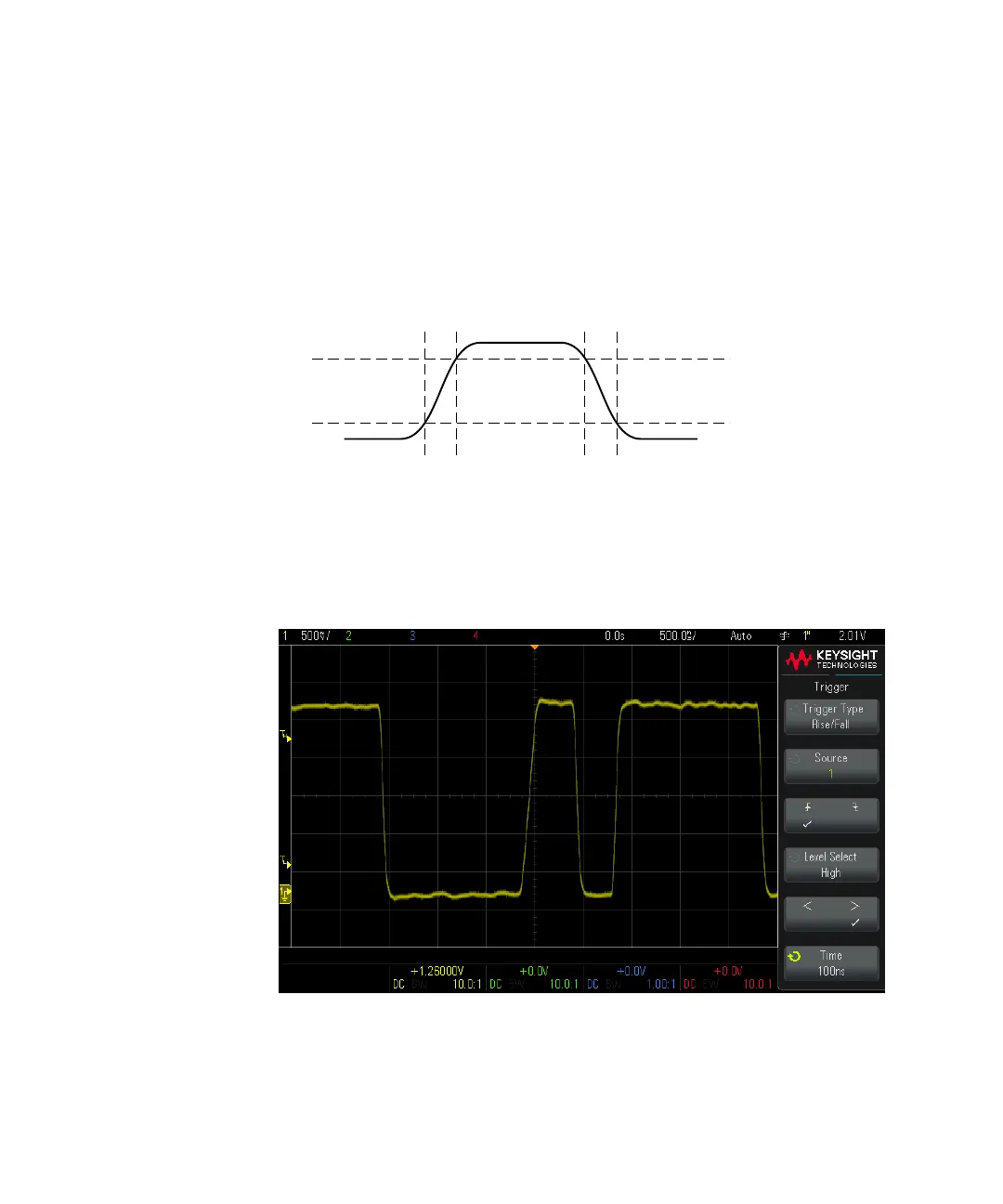

High level
Low level
Rising edge time Falling edge time
