6 Math Waveforms

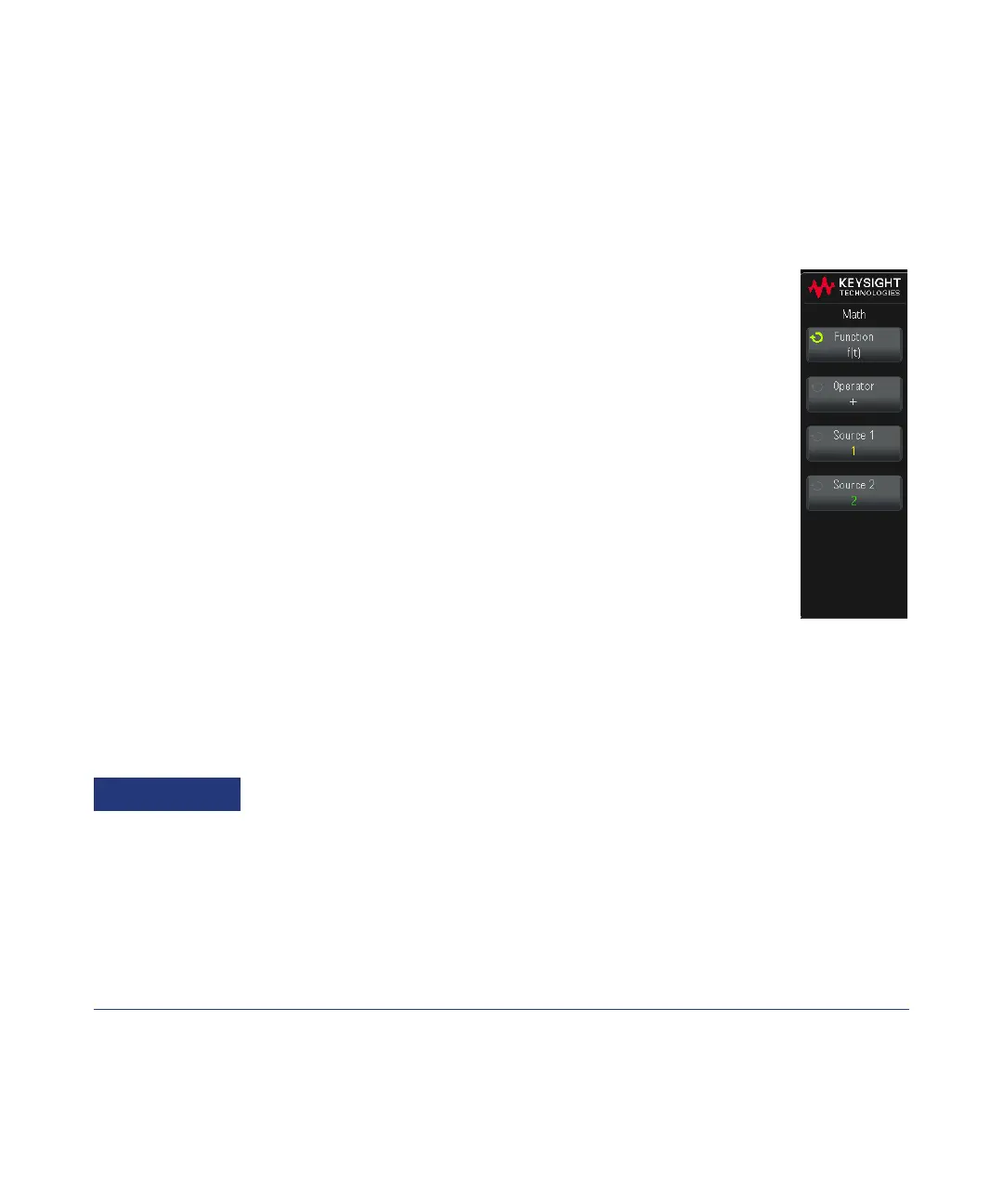

To display math waveforms
1 Press the [Math] key on the front panel to display the waveform Math menu.
2 If f(t) is not already shown on the Function softkey, press the
Function sofkey and select f(t): Displayed.
3 Use the Operator softkey to select an operator or transform.
For more information on the operators, transforms, or filters,
see:
• "Math Operators" on page 68
• "Math Transforms" on page 70
• "Math Filters" on page 74
4 Use the Source 1 softkey to select the analog channel on
which to perform math. You can rotate the Entry knob or
repetitively press the Source 1 softkey to make your selection.
If you choose a transform function (FFT) the result is
displayed.
5 If you select an arithmetic operator, use the Source 2 softkey
to select the second source for the arithmetic operation. The
result is displayed.
6 To re-size and re-position the math waveform, see "To adjust the math
waveform scale and offset" on page 67.
Math Operating Hints
If the analog channel or math function is clipped (not fully displayed on screen) the resulting
displayed math function will also be clipped.
Once the function is displayed, the analog channel(s) may be turned off for better viewing of
the math waveform.
The vertical scaling and offset of each math function can be adjusted for ease of viewing and
measurement considerations.
The math function waveform can be measured using [Cursors] and/or [Meas].
