Web Interface 23

Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 257

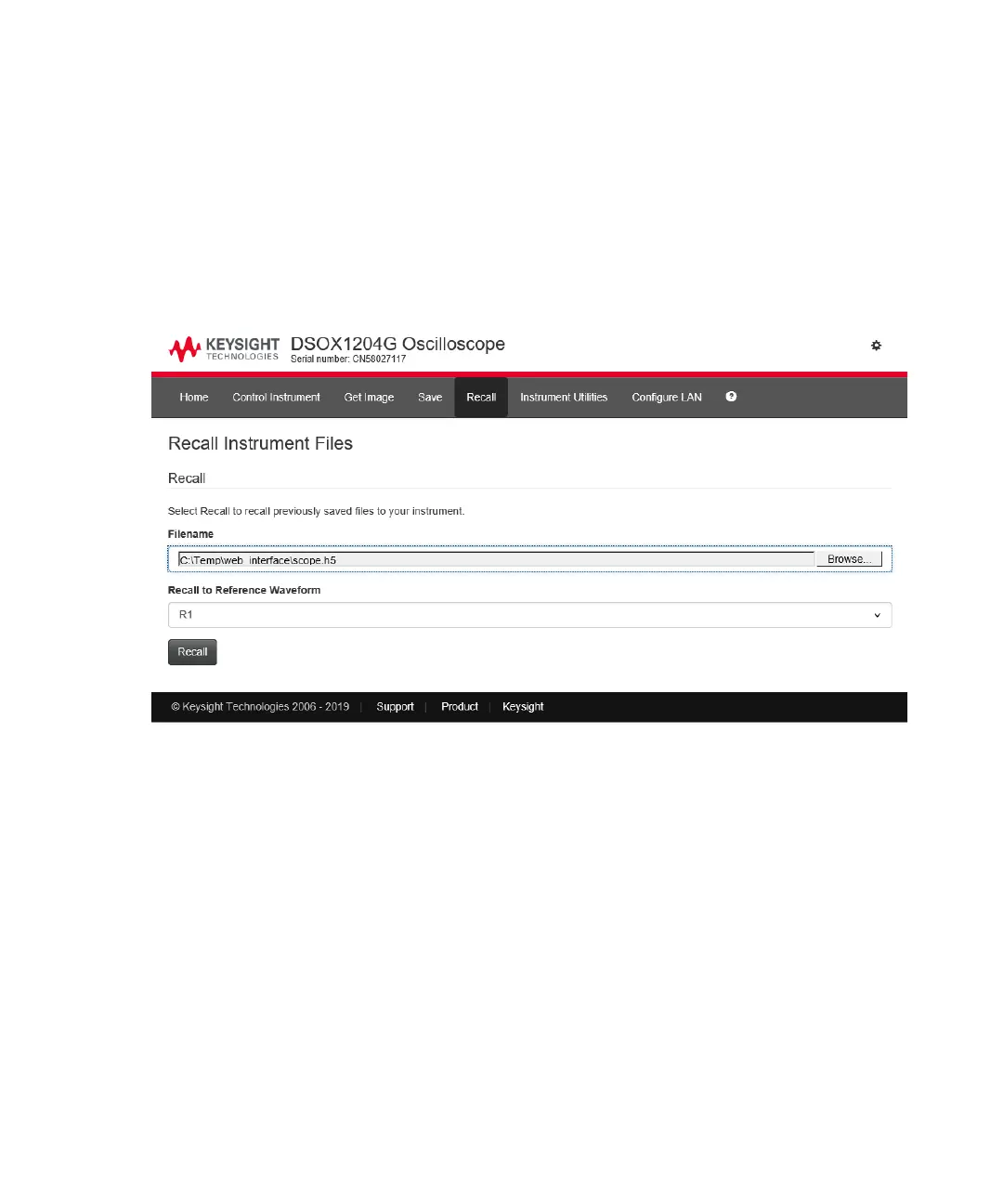

3 On the Recall page:

a Click Browse....

b In the "Choose file" dialog, select the file you want to recall; then, click Open.

c When recalling reference waveform data files, select the Recall to Reference

Waveform option.

d Click Recall.

Identification Function

The Identification web interface feature is useful when trying to locate a specific

instrument in a rack of equipment.

1 Access the oscilloscope's web interface (see "Accessing the Web Interface" on

page 250).

2 When the oscilloscope's web interface Home tab is displayed, select the Enable

front panel identification indicator check box.

An "Identify" message is displayed on the oscilloscope.
