Utility Settings 22
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 243
Performing Service Tasks

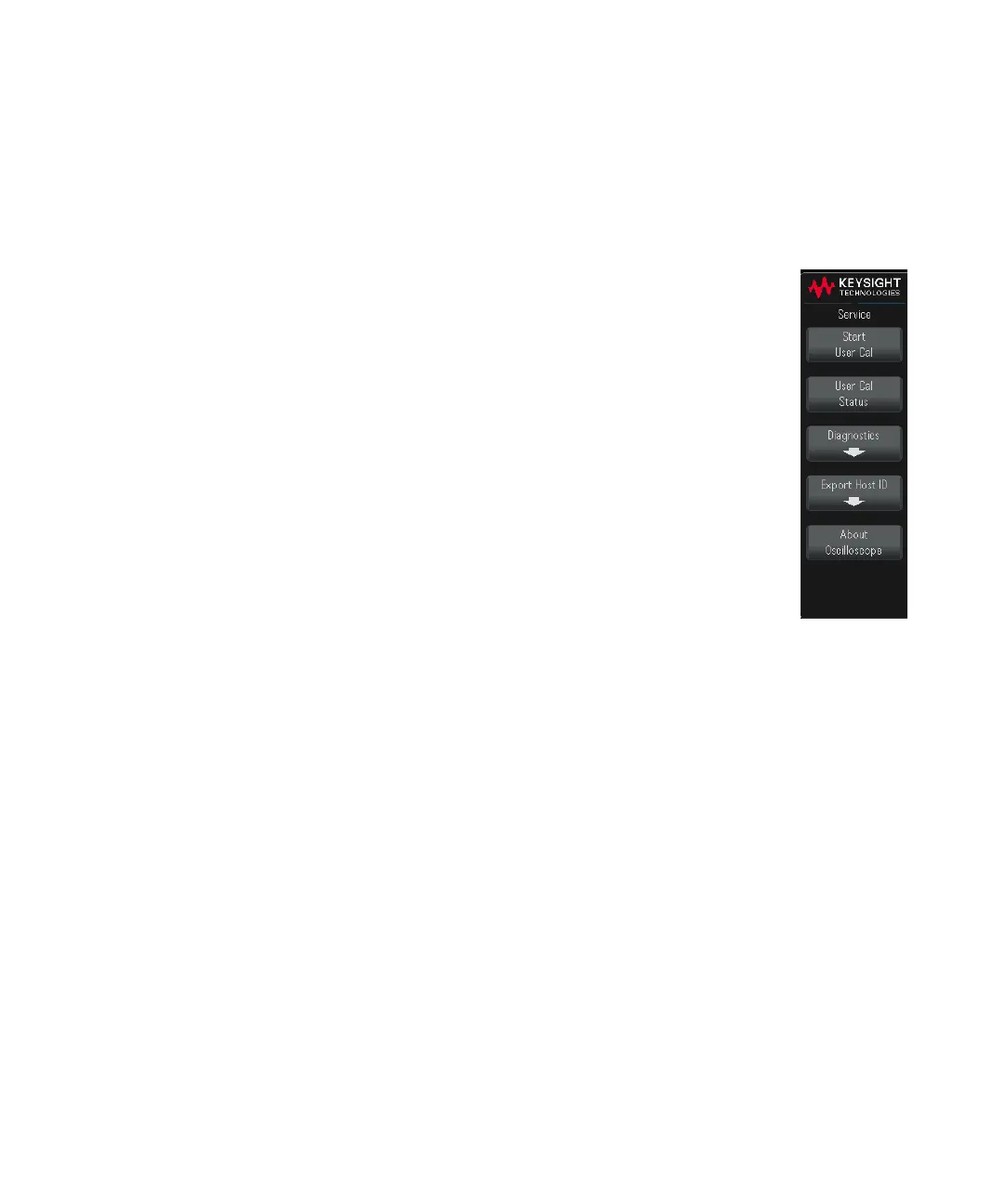

The Service menu (under [Utility] > Service) lets you perform service-related tasks:
• "To perform user calibration" on page 243
• "To perform hardware self test" on page 244
• "To perform front panel self test" on page 244
• "To export crash log files" on page 244
• "To display oscilloscope information" on page 245
• "To display the user calibration status" on page 245
For other information related to oscilloscope maintenance and
service, see:
• "To clean the oscilloscope" on page 245
• "To check warranty and extended services status" on page 245
• "To contact Keysight" on page 246
• "To return the instrument" on page 246
To perform user calibration
User Calibration performs an internal self-alignment routine to optimize the signal
path in the oscilloscope. The routine uses internally generated signals to optimize
circuits that affect channel sensitivity, offset, and trigger parameters.
User Cal should be performed:
• Every five years or after 10000 hours of operation.
• When the ambient temperature of the oscilloscope is >10 °C different than
when the last User Cal was performed.
• When you want to maximize the measurement accuracy.
Performing User Cal will invalidate your Certificate of Calibration. If NIST (National
Institute of Standards and Technology) traceability is required, perform the
"Performance Verification" procedure in the Keysight InfiniiVision 1200 X-Series
Oscilloscopes Service Guide using traceable sources.
To perform user calibration:
