300 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide

27 LIN Triggering and Serial Decode

• If the total frame count exceeds the length specified in the standard, TFM will

appear red (LIN 1.3 only).

• For LIN 1.3 a wakeup signal is indicated by WAKE in blue. If the wakeup signal

is not followed by a valid wakeup delimiter a wakeup error is detected and

displayed as WUP in red.

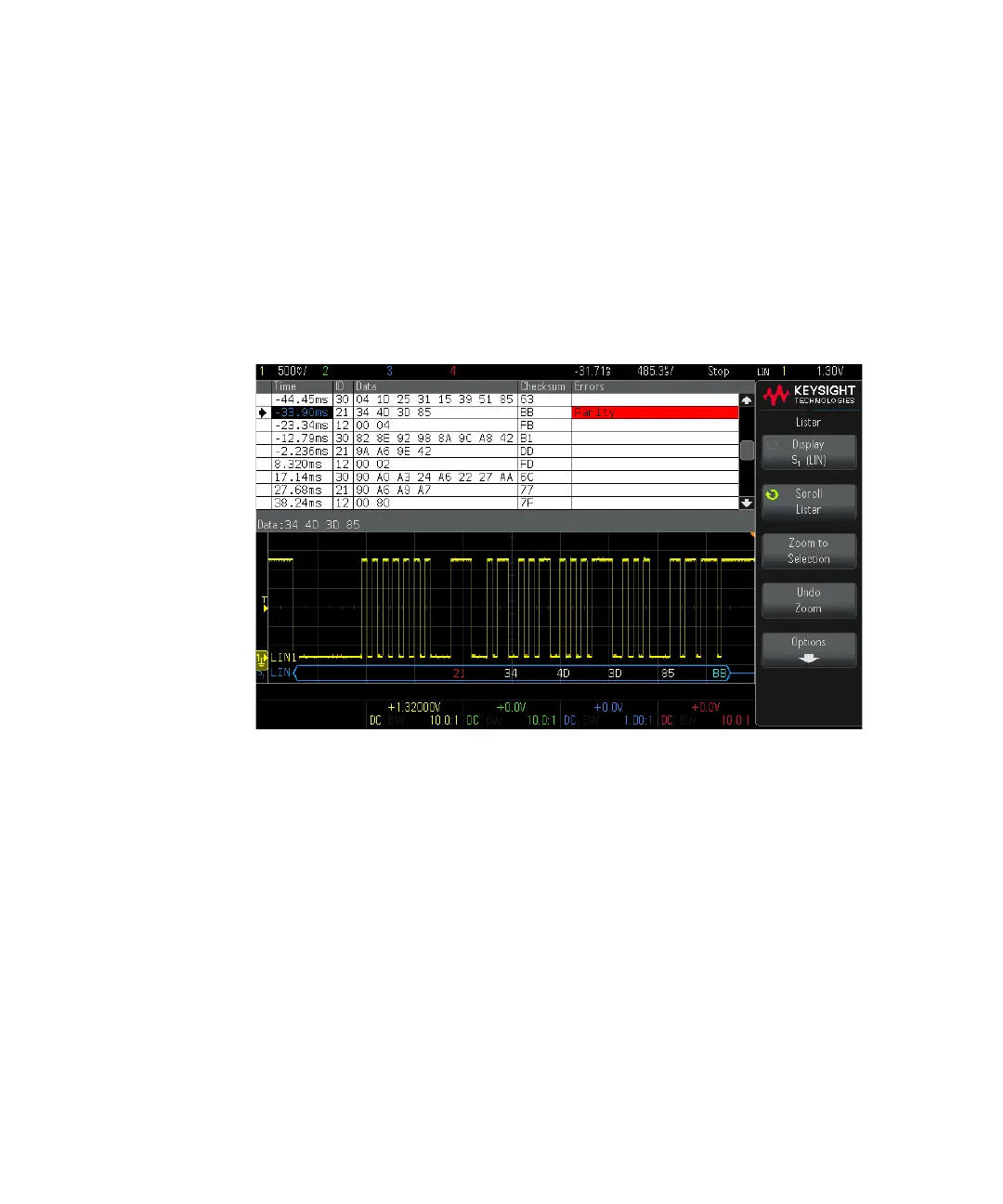

Interpreting LIN Lister Data

In addition to the standard Time column, the LIN Lister contains these columns:

• ID — frame ID.

• Data — (LIN 1.3 only) data bytes.

• Checksum — (LIN 1.3 only).

• Data and Checksum — (LIN 2.0 only).

• Errors — highlighted in red.

Aliased data is highlighted in pink. When this happens, decrease the horizontal

time/div setting and run again.
