16 Mask Testing

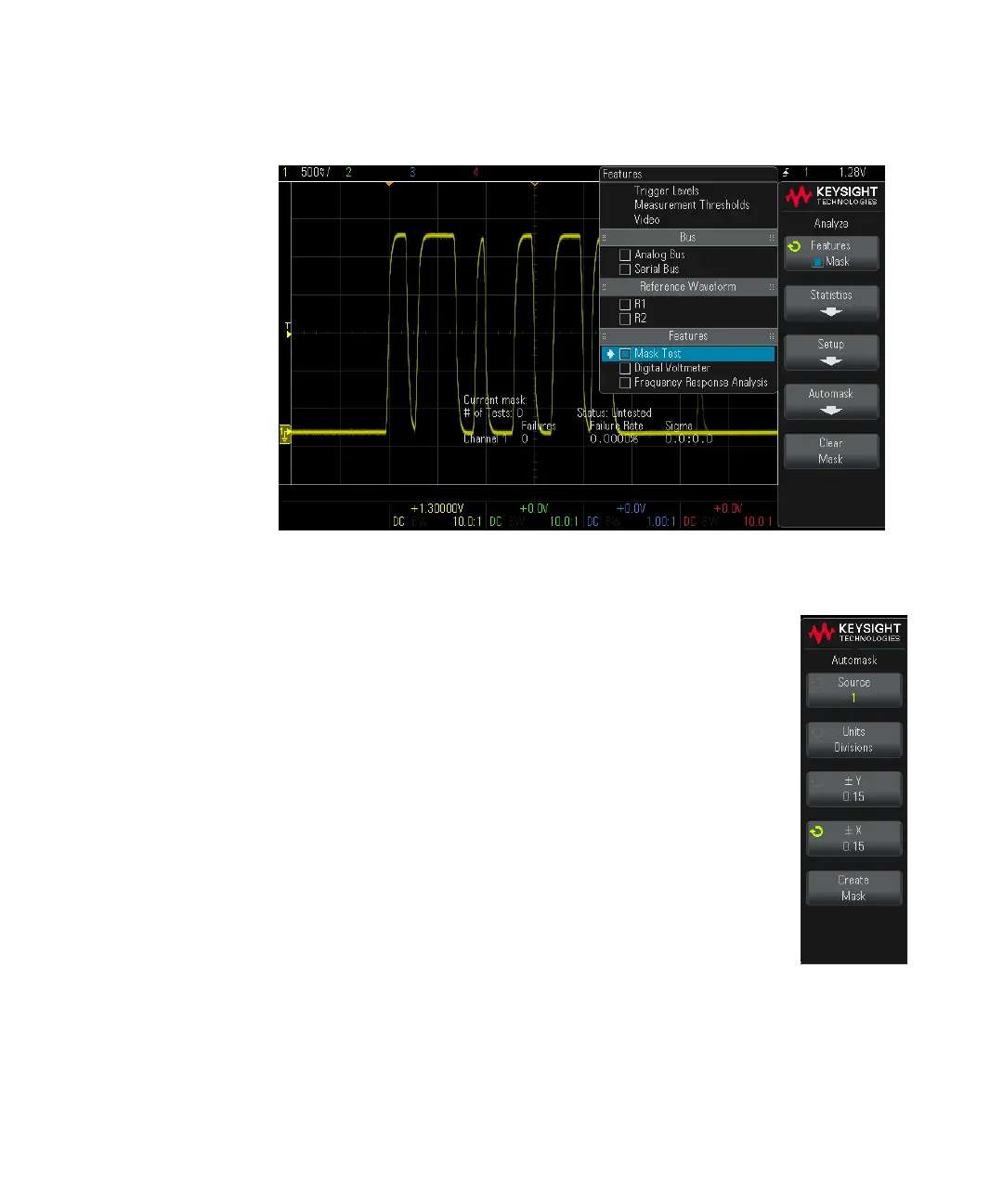

5 Press Automask.
6 In the Automask menu, press the Source softkey and ensure
the desired analog channel is selected.
7 Adjust the mask's horizontal tolerance (± Y) and vertical
tolerance (± X). These are adjustable in graticule divisions or
in absolute units (volts or seconds), selectable using the Units
softkey.
8 Press the Create Mask softkey.
The mask is created and testing begins.
Whenever the Create Mask softkey is pressed the old mask is
erased and a new mask is created.
