3.2.1.1.1.3 Connection
KLEA may perform measurements with three dierent connection types.
• 3 phase – 4 wire connection
• 3 phase – 3 wire connection
• Aron connection
Inside Network menu, press up and down keys to select Connection. Press OK key and
the above connection types will appear on the screen. Select the connection type and
press OK to finish the setting.
Settings->Setup->Network
CTR 10
VTR 1.0
Connection 3phase 4wire
Demand period 15 min
Power unit Kilo
3phase 4wire
3phase 3wire
Aron

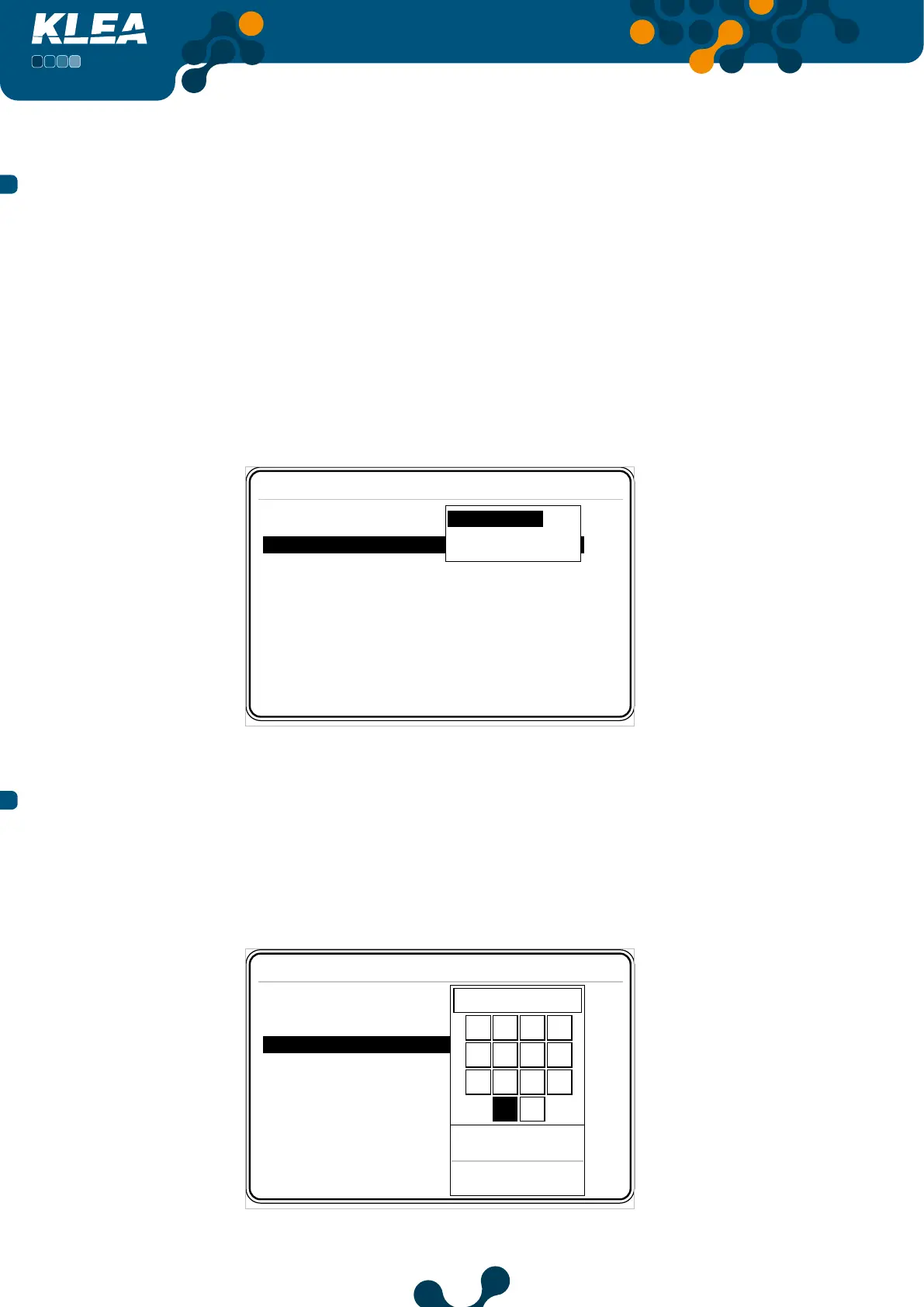

Fig. 3-16 Connection
3.2.1.1.1.4 Demand Period
Inside Network menu, press up and down keys to select (highlight) ‘Demand period’
menu item. When ‘Demand period’ is selected, press OK key and KLEA virtual keyboard
will appear on the screen. Demand period can be adjusted between 1 - 60 minutes.
(For Virtual Keyboard Refer to 3.1.4 E.g.)
Settings->Setup->Network
CTR 1
VTR 1.0
Connection 3phase 4wire
Demand period 15 min
Power unit Kilo
15
Low limit
1
High limit
60
1 2 3 4
5 6 7 8
9 0 . -
ok clr
Fig. 3-17 Demand Period
