SECTION 3 MENUS
Time
Waveform
D
C
B
A
Amplitude
High limit
Hysteresis %
Low limit
Hysteresis %

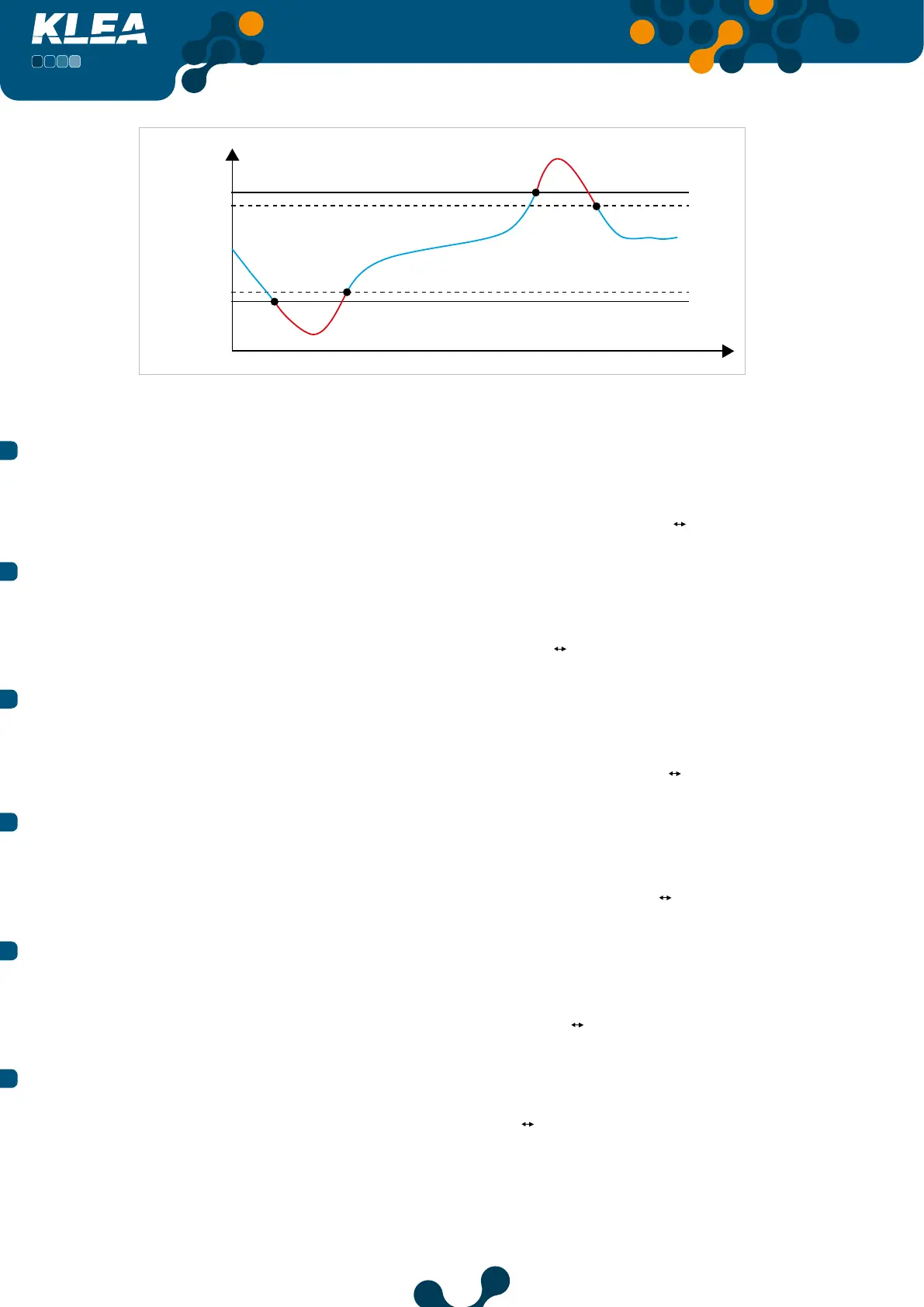

Fig. 3-52 Alarm Example
3.2.1.1.8.2 V(L-L) Menu
Alarm for phase-to-phase voltages is adjusted in this submenu. V(L-L) settings are the
same as V(L-N). Low and high limit values can be adjusted between 0 2600000).
3.2.1.1.8.3 Current Menu
Alarm for current is adjusted in this submenu. Current settings are the same as V(L-N).
Low and high limit values can be adjusted between 0 30000).
3.2.1.1.8.4 P Menu
Alarm for active power is adjusted in this submenu. P settings are the same as V(L-N).
Low and high limit values can be adjusted between: -100000000000 10000000000)
3.2.1.1.8.5 Q Menu
Alarm for reactive power is adjusted in this submenu. Q settings are the same as V(L-N).
Low and high limit values can be adjusted between: -10000000000
10000000000)
.
3.2.1.1.8.6 S Menu
Alarm for apparent power is adjusted in this submenu. S settings are the same as V(L-N).
Low and high limit values can be adjusted between: 0.0
10000000000)
.
3.2.1.1.8.7 CosØ Menu
Alarm for cosØ is adjusted in this submenu. cosØ settings are the same as V(L-N). Low
and high limit values can be adjusted between: 0
1).
