SECTION 3 MENUS
When measure is KLEA S tot.=1485000VAr, the result will be as follows,
AO1-GND =[
10-(-10)
x(1485000-(1400x1000)] + (-10) = -5.75V
(1800-1400)x1000
When measure is KLEA V1(L-N)=1695000VA , the result will be as follows,
AO1-GND =[
10-(-10)
x(1695000-(1400x1000)] + (-10) = 4,75V
(1800-1400)x1000
3.2.1.1.6.2 Output 2 Menu
Analog output 2 settings are the same as Output1. Analog output gives output from
AO2- GND pins.
3.2.1.1.6.3 Output 3 Menu
Analog output 3 settings are the same as Output1. Analog output gives output from
AO3- GND pins
3.2.1.1.6.4 Output 4 Menu
Output 4 Menu Settings ve kullanımı, Output 1 Menu ile aynıdır. Analog Output ,
AO4-GND üzerinden alınır.
3.2.1.1.7 Communication Menu
KLEA implements ModeBUS over serial line with RTU mode. In this menu, settings
related with Modebus RTU are accomplished.
V1
V2
V3
V
V
V
A
A
A
I1
I2
I3
17:22
0.0
0.0
220.0
5.0
5.0
5.0
V
1 2 3
I
1 2
1 2 E
Setup
Date / Time
System info
Password
Restart
Default settings
Settings
Measure
Meters
Alarms Analysis
Network
Device
Energy
Digital input
Digital output
Communication
Alarm
Clear

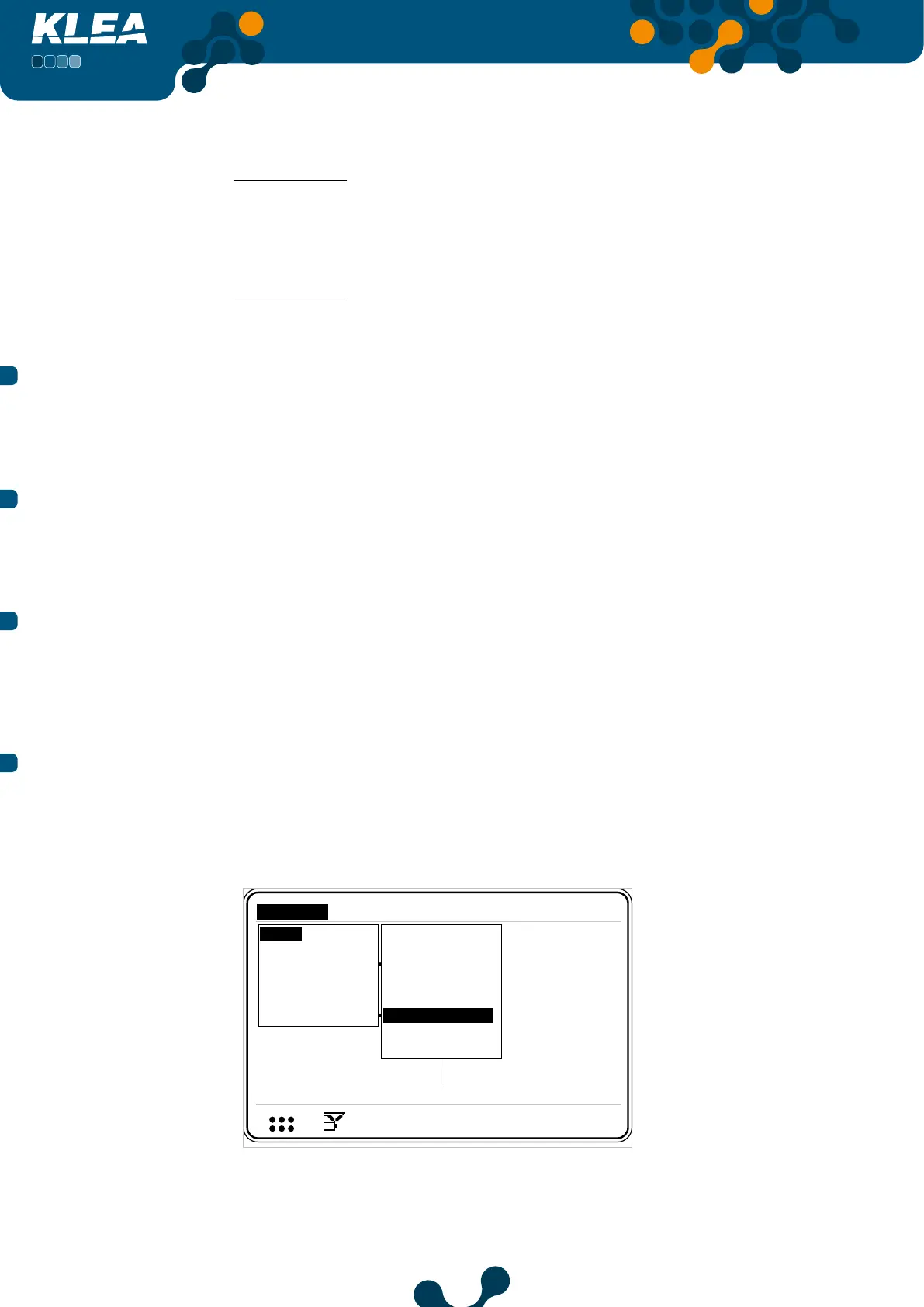

Fig. 3-44 Communication Menu
