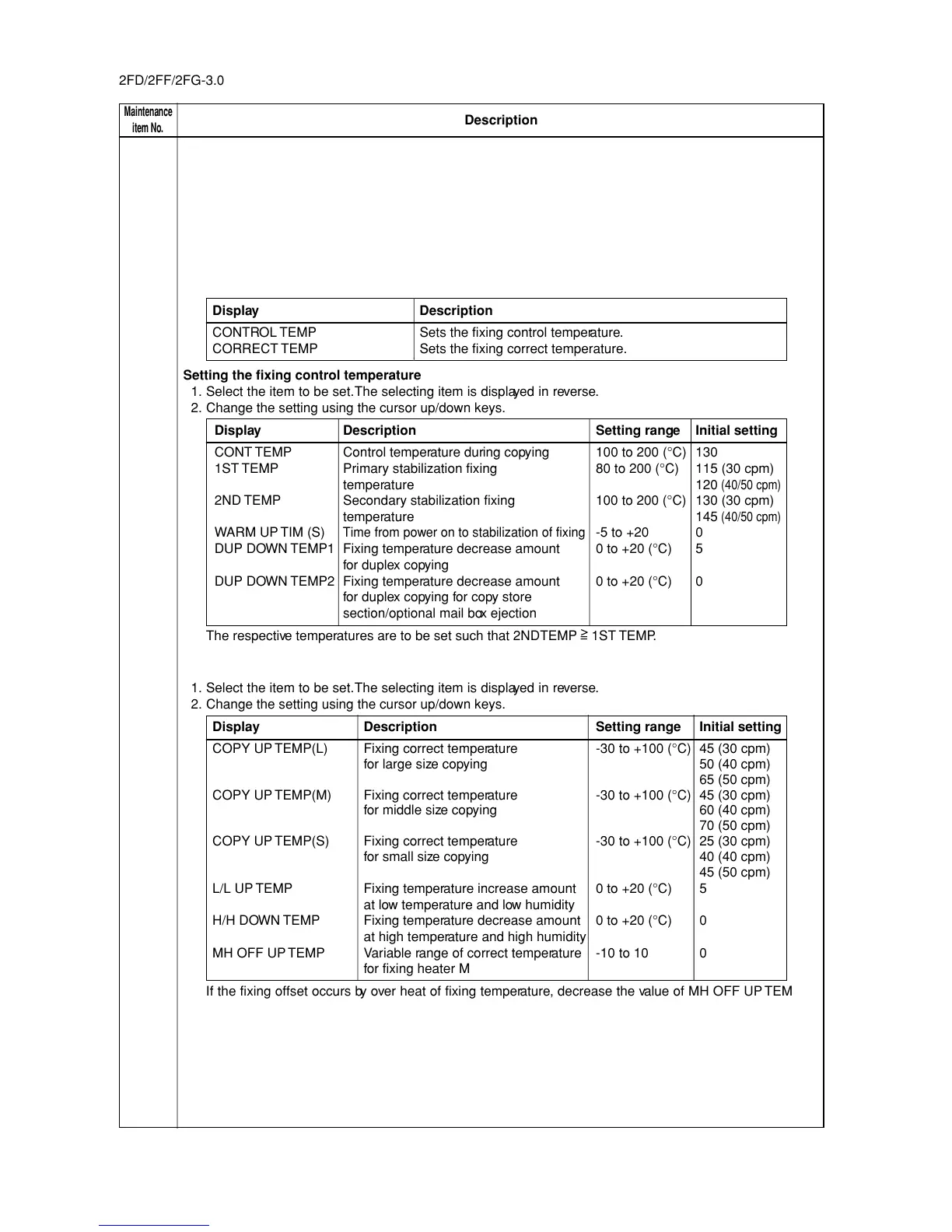

U161 Setting the fixing control temperature
Description
Changes the fixing control temperature.
Purpose
Normally no change is necessary. However, can be used to prevent curling or creasing of paper, or solve a
fixing problem on thick paper.
Method
1. Press the start key. The screen for selecting an item is displayed.
2. Select the item to be set and press the start key. The screen for executing each item is displayed.
Display Description
CONTROL TEMP Sets the fixing control temperature.
CORRECT TEMP Sets the fixing correct temperature.
Setting the fixing control temperature
1. Select the item to be set. The selecting item is displayed in reverse.
2. Change the setting using the cursor up/down keys.
Display Description Setting range Initial setting
CONT TEMP Control temperature during copying 100 to 200 (°C) 130
1ST TEMP Primary stabilization fixing 80 to 200 (°C) 115 (30 cpm)
temperature 120
(40/50 cpm)
2ND TEMP Secondary stabilization fixing 100 to 200 (°C) 130 (30 cpm)
temperature 145
(40/50 cpm)
WARM UP TIM (S) Time from power on to stabilization of fixing -5 to +20 0
DUP DOWN TEMP1 Fixing temperature decrease amount 0 to +20 (°C) 5
for duplex copying
DUP DOWN TEMP2 Fixing temperature decrease amount 0 to +20 (°C) 0
for duplex copying for copy store
section/optional mail box ejection
The respective temperatures are to be set such that 2ND TEMP
>
=
1ST TEMP.
3. Press the start key. The value is set.
Setting the fixing correct temperature
1. Select the item to be set. The selecting item is displayed in reverse.
2. Change the setting using the cursor up/down keys.
Display Description Setting range Initial setting
COPY UP TEMP(L) Fixing correct temperature -30 to +100 (°C) 45 (30 cpm)
for large size copying 50 (40 cpm)
65 (50 cpm)
COPY UP TEMP(M) Fixing correct temperature -30 to +100 (°C) 45 (30 cpm)
for middle size copying 60 (40 cpm)
70 (50 cpm)
COPY UP TEMP(S) Fixing correct temperature -30 to +100 (°C) 25 (30 cpm)
for small size copying 40 (40 cpm)
45 (50 cpm)
L/L UP TEMP Fixing temperature increase amount 0 to +20 (°C) 5
at low temperature and low humidity
H/H DOWN TEMP Fixing temperature decrease amount 0 to +20 (°C) 0
at high temperature and high humidity
MH OFF UP TEMP Variable range of correct temperature -10 to 10 0
for fixing heater M
If the fixing offset occurs by over heat of fixing temperature, decrease the value of MH OFF UP TEMP to
lower the temperature of fixing heater M.
3. Press the start key. The value is set.
Interrupt copy mode
While this maintenance item is being performed, copying from an original can be made in interrupt copy mode.
Completion
Press the stop/clear key at the screen for selecting an item. The screen for selecting a maintenance item No. is
displayed.
