Kyocera KM-4035

1-3-4
2FD/2FF/2FG-3.0

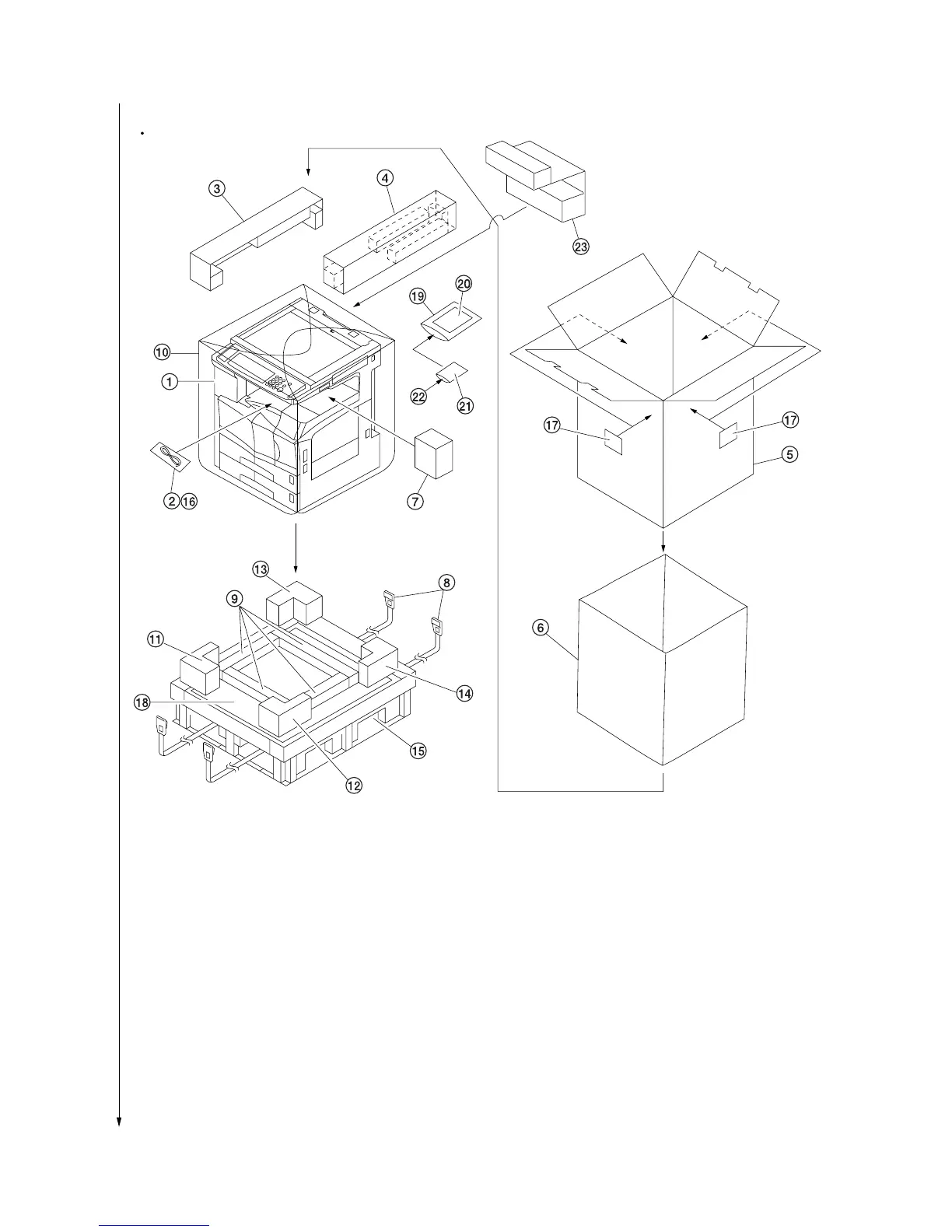

Figure 1-3-2b Unpacking
1 Copier
2 Power cord
3 Upper left pad
4 Upper right pad
5 Outer case
6 Inner frame
7 Eject spacer
8 Belts
9 Bottom pad
0 Machine cover
! Front left pad
@ Front right pad
# Rear left pad
$ Rear right pad
% Skid
^ Plastic bag
& Bar code labels
* Bottom spacer
( Plastic bag
) Operation guide
⁄ Plastic bag
¤ M3 x 8 screws
‹ Spacer
Caution: Place the machine on a level surface.
230 V specifications
