2-1-8 Eject and switchback sections
The eject and switchback sections eject paper on which fixing has ended with the eject roller that is rotated by forward
rotation of the eject motor.
In duplex copying, paper is turned over by reverse rotation of the eject motor. When paper is transferred to the job
separator or the internal finisher, the feedshift solenoid (FSSOL) is turned on to activate the feedshift guide to switch the
paper transfer path.

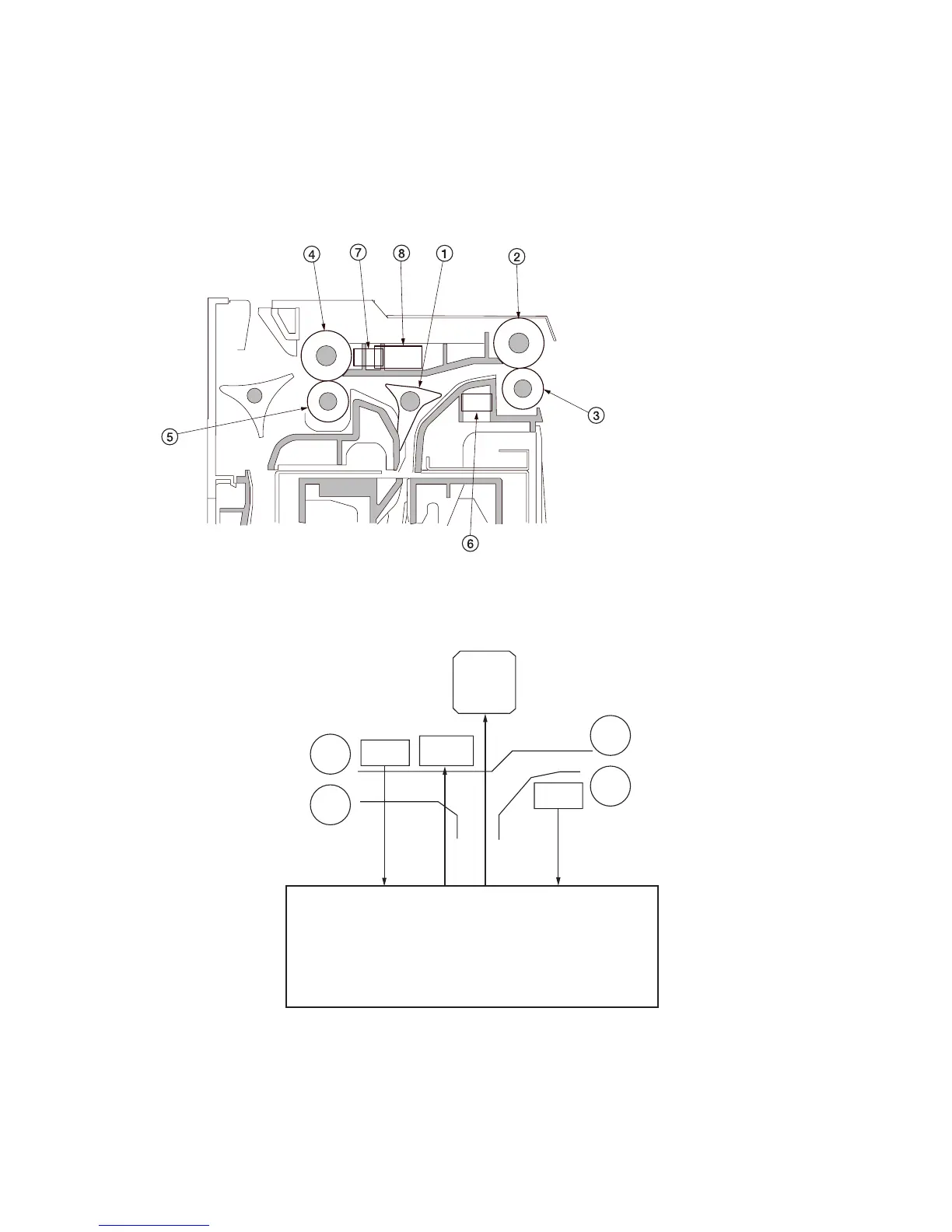

Figure 2-1-26 Eject and switchback sections
YC16-A5
YC16-B11-
YC16-B14
YC16-A1-
YC16-A2
YC16-A11
MPCB
ESW
EM
FSSW
FSSOL
Figure 2-1-27 Eject and switchback sections block diagram
1 Feedshift guide
2 Eject roller
3 Eject pulley
4 Switchback roller
5 Switchback pulley
6 Eject switch (ESW)
7 Feedshift switch (FSSW)
8 Feedshift solenoid (FSSOL)
