1-3-8 Installing the sheet-through document processor (option)
Preparation

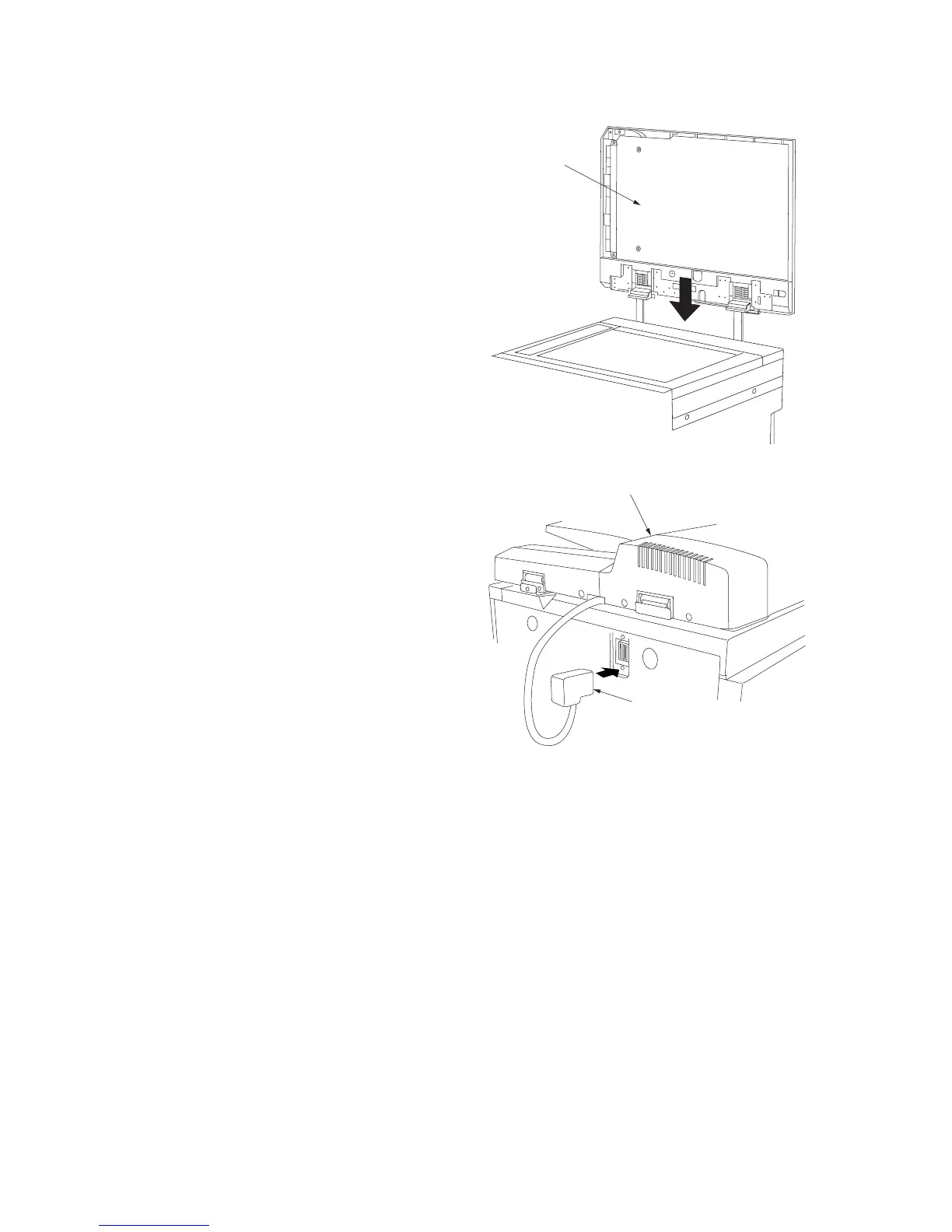

1. Insert the DP into the copier.
Figure 1-3-71
Figure 1-3-70
2. Connect the connector of the DP to the
copier.
3. Insert the copier power plug to the wall outlet
and turn the power switch on.
4. Place the original on the DP and make a test
copy. Check the operation and the copy
image.
5. If the copy image is different from the original,
run the following adjustment.
•
Maintenance item U070 (sub-scan line
adjustment) (see page 1-4-25)
•
Maintenance item U071 (leading edge
timing adjustment) (see page 1-4-26)
•
Maintenance item U072 (center line
adjustment) (see page 1-4-27)
