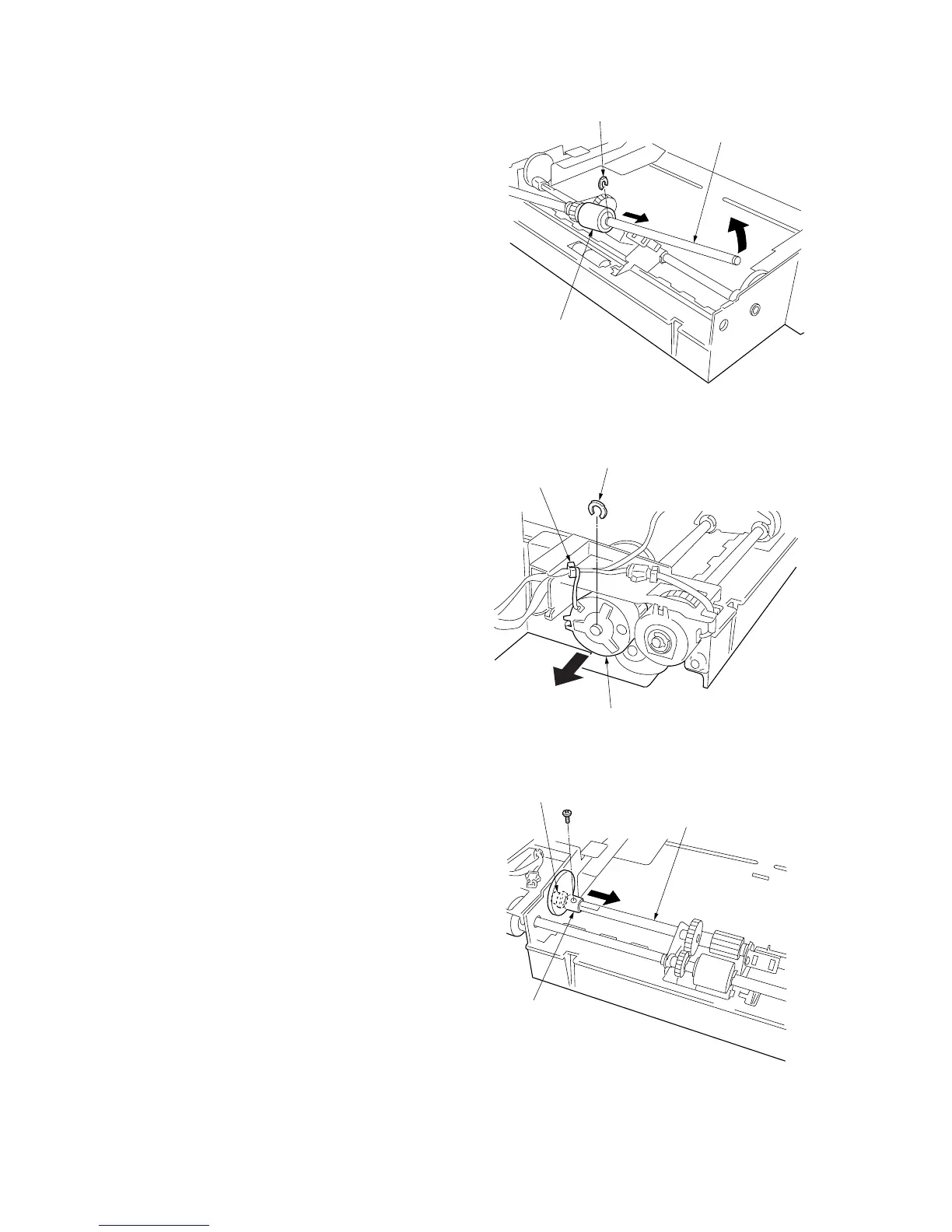

8. Raise the bypass paper feed shaft as shown
in the illustration, remove the stop ring, and
then remove the bypass paper feed pulley.
Caution:
• When fitting the bypass paper feed pulley, keep
the blue end of the paper feed toward the
machine rear.
Figure 1-6-13
• Removing the bypass forwarding pulley
9. Remove the wire of the bypass paper feed
clutch from the clamp.
10. Remove the stop ring and bypass paper feed
clutch.
• When refitting, insert the cutout in the
bypass paper feed clutch over the stopper
on the copier.
Figure 1-6-14
11. Remove the screw from the cam at the rear
of the bypass forwarding pulley shaft and
move the cam and the bushing toward the
inner side.
Figure 1-6-15
Stop ring
Bypass paper feed pulley
Bypass paper feed shaft
Bypass paper feed clutch
Stop ring
Clamp
Bushing
Bypass forwarding pulley shaft
Cam
