1-3-5 Installing the paper feeder (option)
Preparation

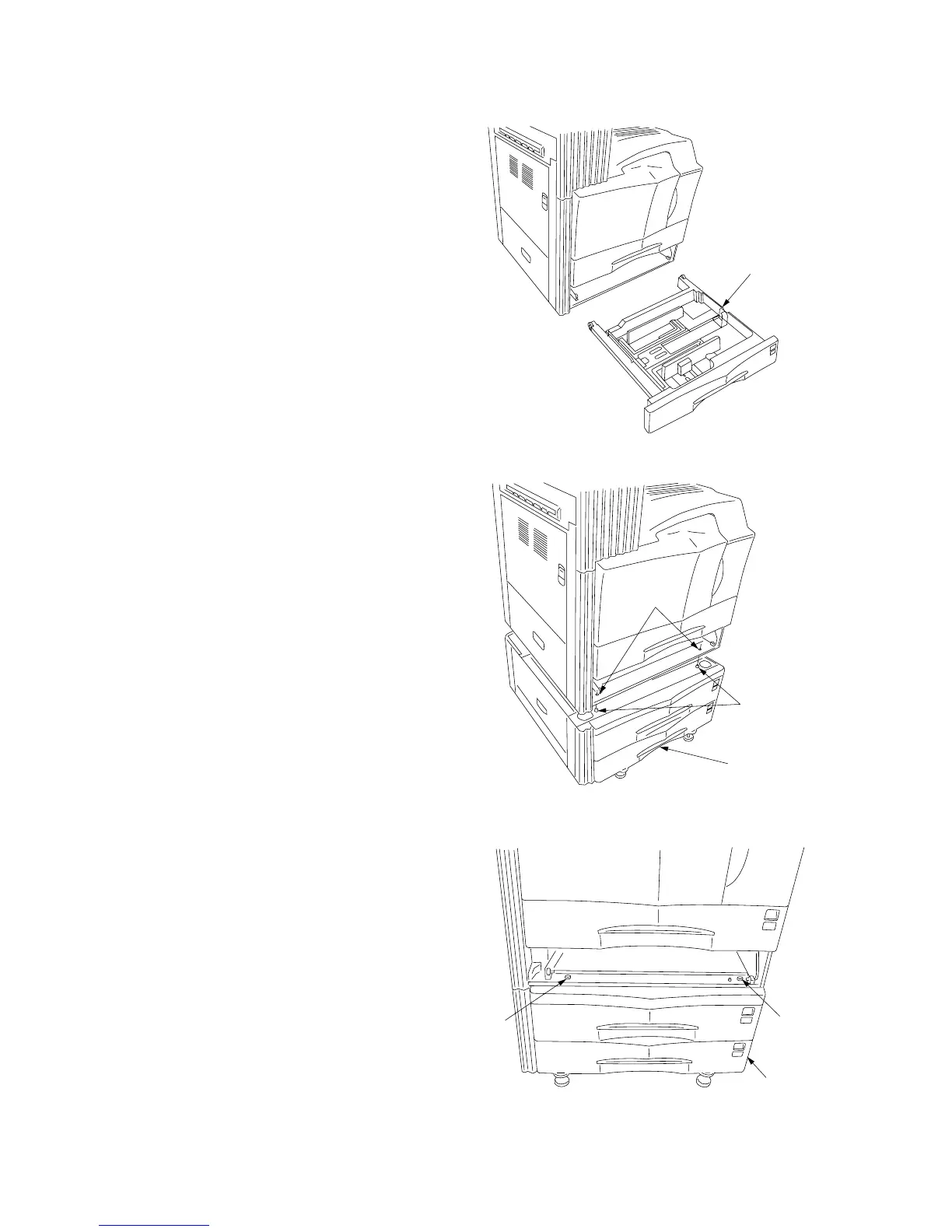

1. Remove the lower drawer from the copier.
Figure 1-3-18
Figure 1-3-19
Figure 1-3-20
2. Place the copier on top of the paper feeder
with the positioning pins at the front left and
right of the paper feeder aligned with the
holes in the base of the copier.
3. Secure the copier to the paper feeder using
the two pins.
4. Refit the lower drawer to the copier.
Lower drawer
Pins
Holes
Paper feeder
Paper feeder
Pin
Pin
