2FD/2FF/2FG
1-3-12

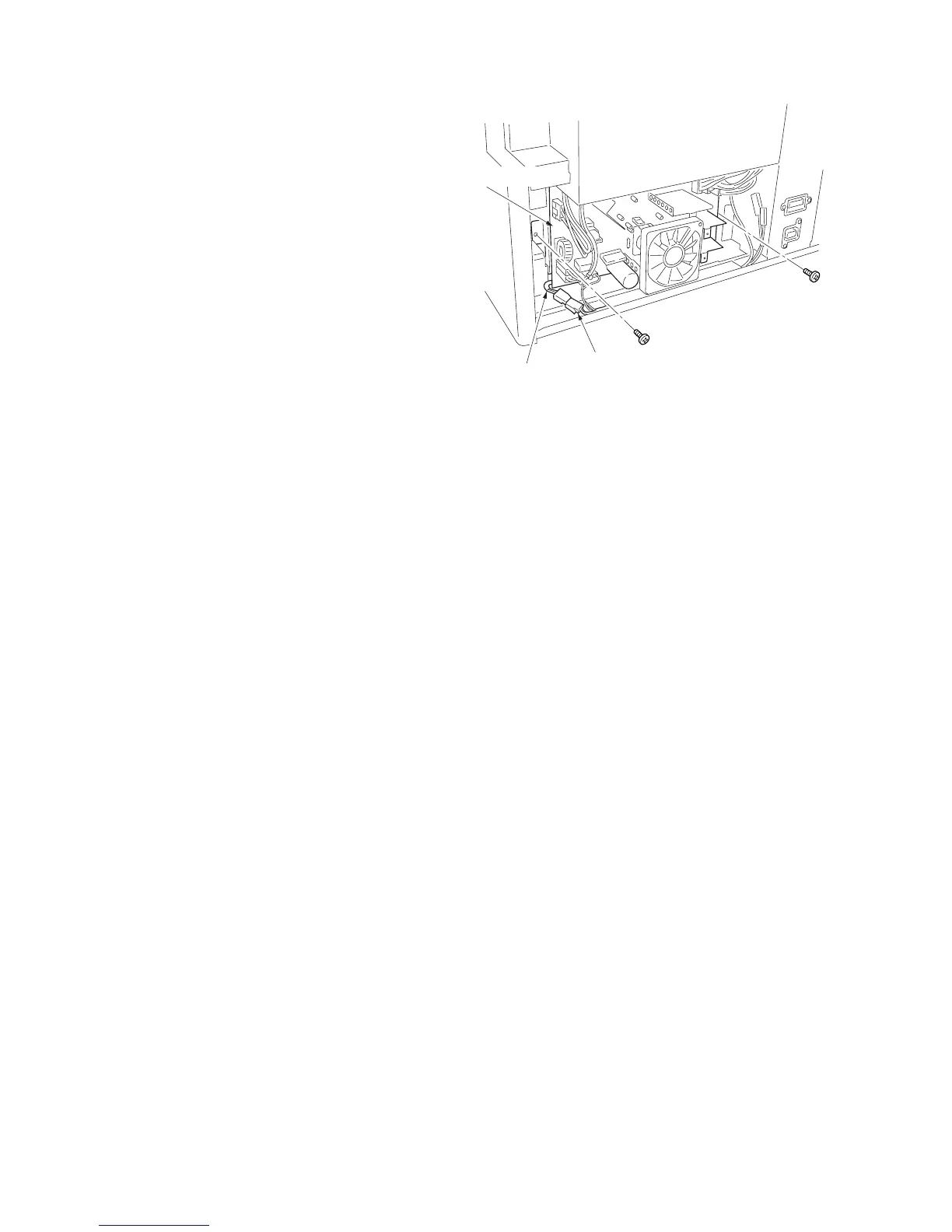

Figure 1-3-17
Connector
Wire of the drawer heater
Power source PCB unit
6. Remove the two screws and pull out the wire
of the drawer heater that has been put out of
the rear frame while raising the power source
PCB unit.
7. Insert the connector of the drawer heater into
the connector of the machine.
8. Refit all the removed parts.
