1-3-11 Installing the built-in finisher (option)
Preparation
Note: When placing the transfer unit on the floor
or the like, be sure to place it upside down.
If not, the stapler mounting plate may be
deformed, resulting in a malfunction.

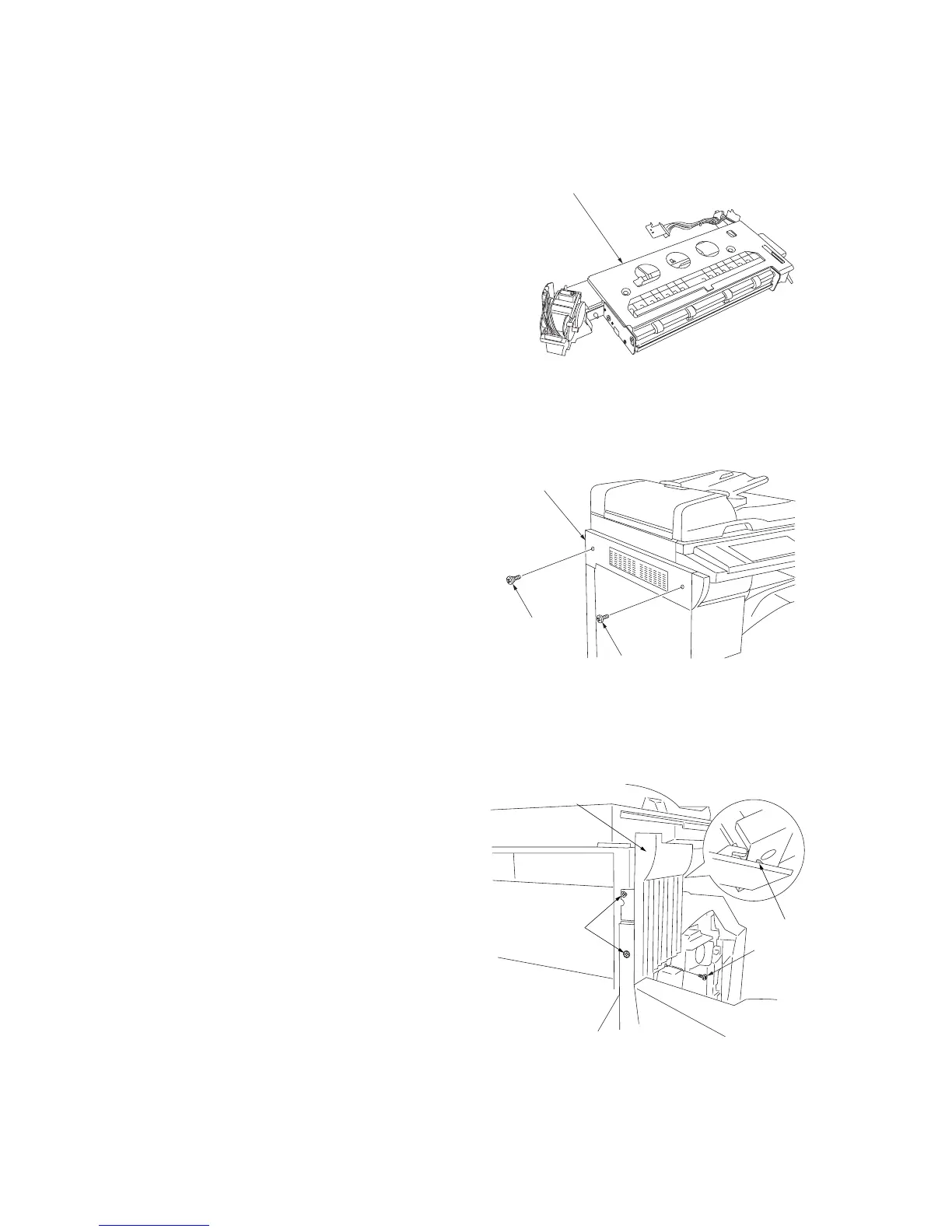

Figure 1-3-86
Upper left cover
Screw
Pin
2. Open the conveying cover and the front
cover.
3. Loosen the two screws on the left side and
the screw on the front side, open the hook on
the right side, and remove the left front cover.
Left front cover
Screws
Screw
Hook
Figure 1-3-87
Figure 1-3-85
Procedure
1. Remove the screw and the pin to remove the
upper left cover.
Transfer unit
