1-6-8 Others

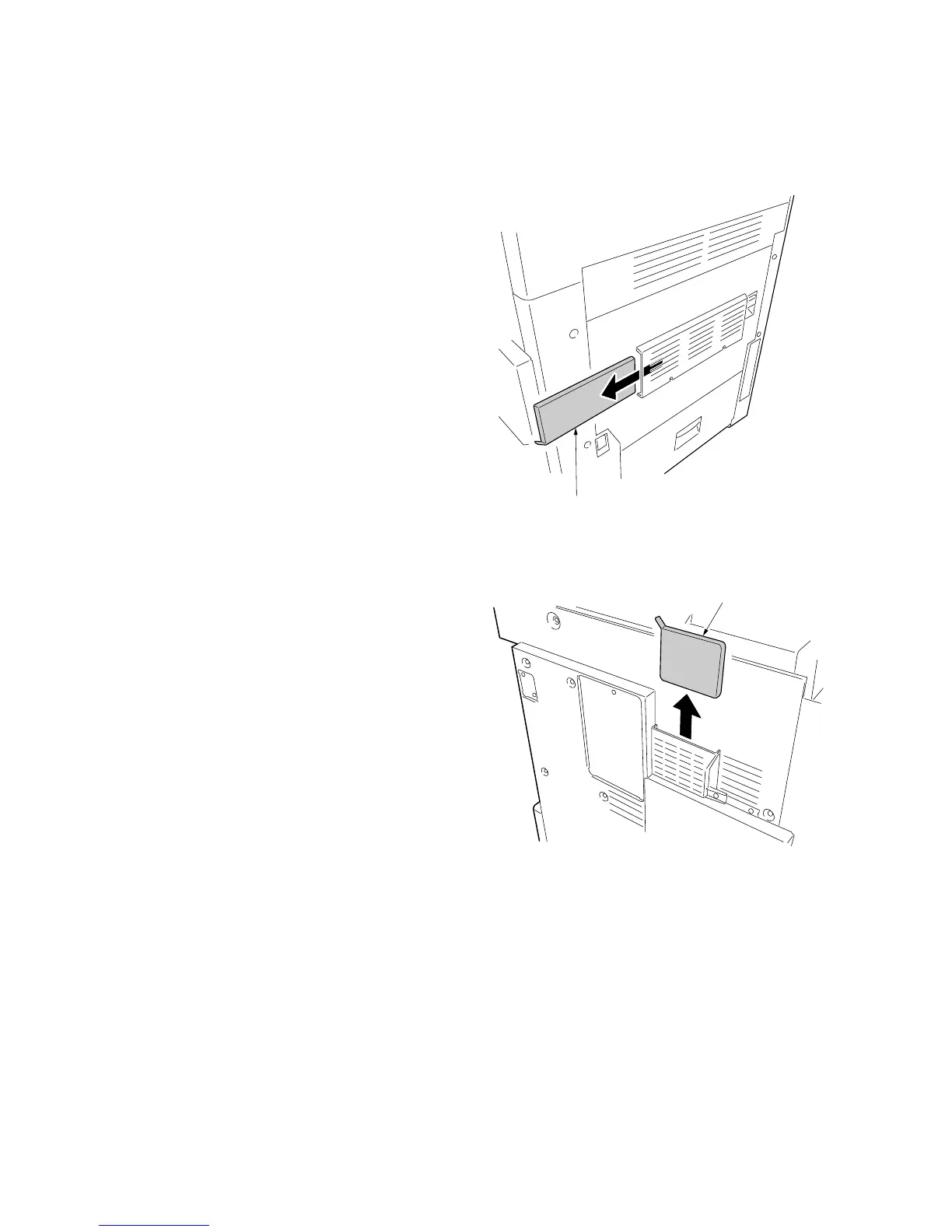

(1) Detaching and refitting the ozone filters (only for 230 V specifications)
Follow the procedure below to replace the ozone filters.
Procedure
1. Remove the ozone filter A from the conveying
cover.
Figure 1-6-81
2. Remove the ozone filter B from the rear
cover.
3. Replace the ozone filter A and B, and refit all
the removed parts.
Figure 1-6-82
Ozone filter A
Ozone filter B
