Kyocera KM-4035

2FD/2FF/2FG
2-1-6
ESW
EM
MC REM
DM
Start key
100 ms
100 ms
515 ms
309 ms

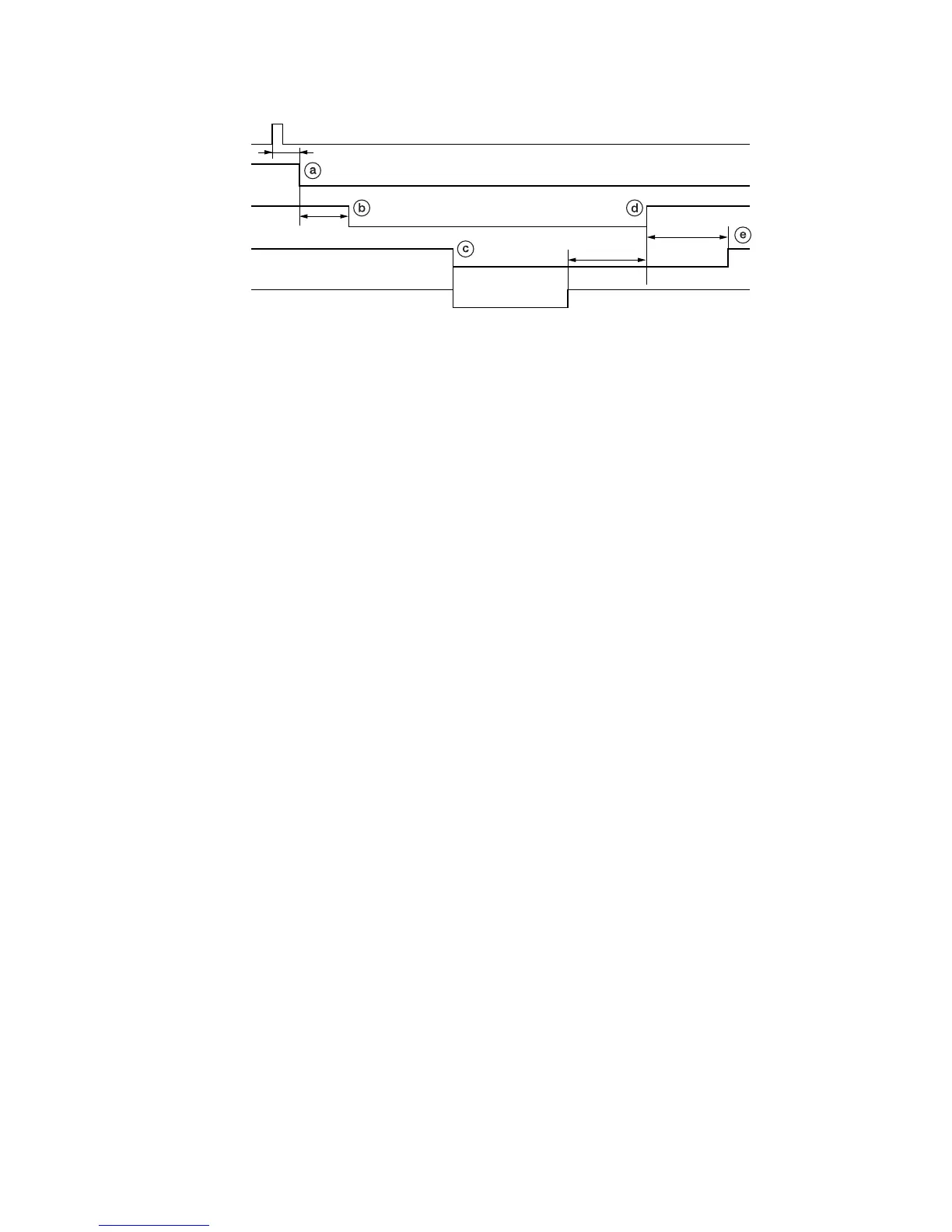

Timing chart 2-1-3 Main charging section operation
a:100 ms after the start key is pressed, the drive motor (DM) turns on.
b:100 ms after the drive motor (DM) turns on, main charging (MC REM) starts.
c:The leading edge of the paper turns on the eject switch (ESW), and at the same time the eject motor (EM) turns on.
d:309 ms after the paper is ejected and the eject switch (ESW) turns off, main charging (MC REM) ends.
e:515 ms after the end of main charging (MC REM), the eject motor (EM) turns off.
