(6) Detaching and refitting the fixing unit thermistor 1 and 2
Follow the procedure below to replace the fixing unit thermistor 1 and 2.
Procedure
1. Remove the fixing unit (see page 1-6-36).
2. Remove the upper fixing cover (see page 1-
6-36).
3. Disconnect the connector of the fixing unit
thermistor 1.

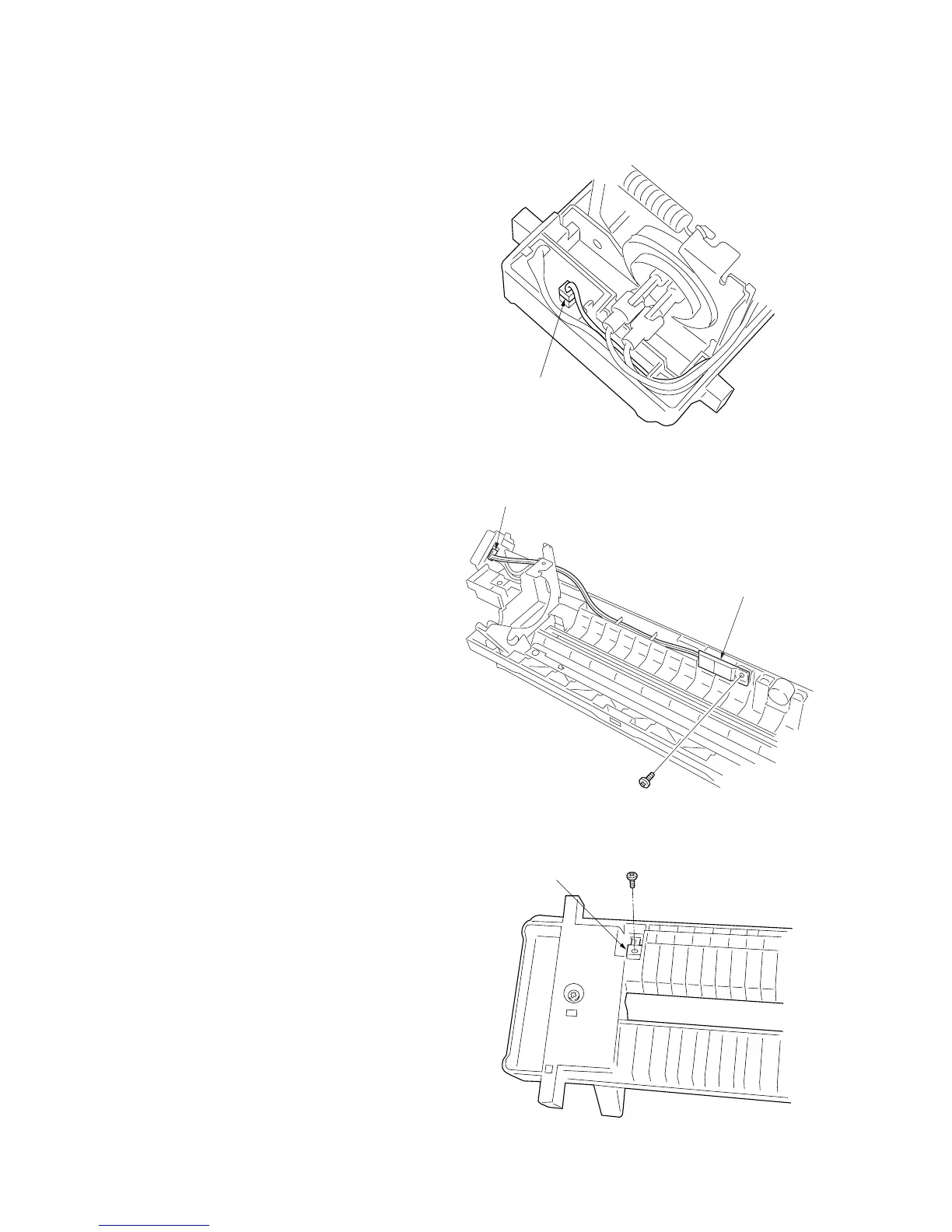

Figure 1-6-76
4. Remove the heat roller (see page 1-6-39).
5. Remove the screw and disconnect the
connector, and then remove the fixing unit
thermistor 2.
Figure 1-6-77
6. Turn the fixing unit over and remove the
screw to remove the fixing unit thermistor 1.
Figure 1-6-78
Connector
Fixing unit thermistor 1
Connector
Fixing unit thermistor 2
