2FD/2FF/2FG
1-1-8

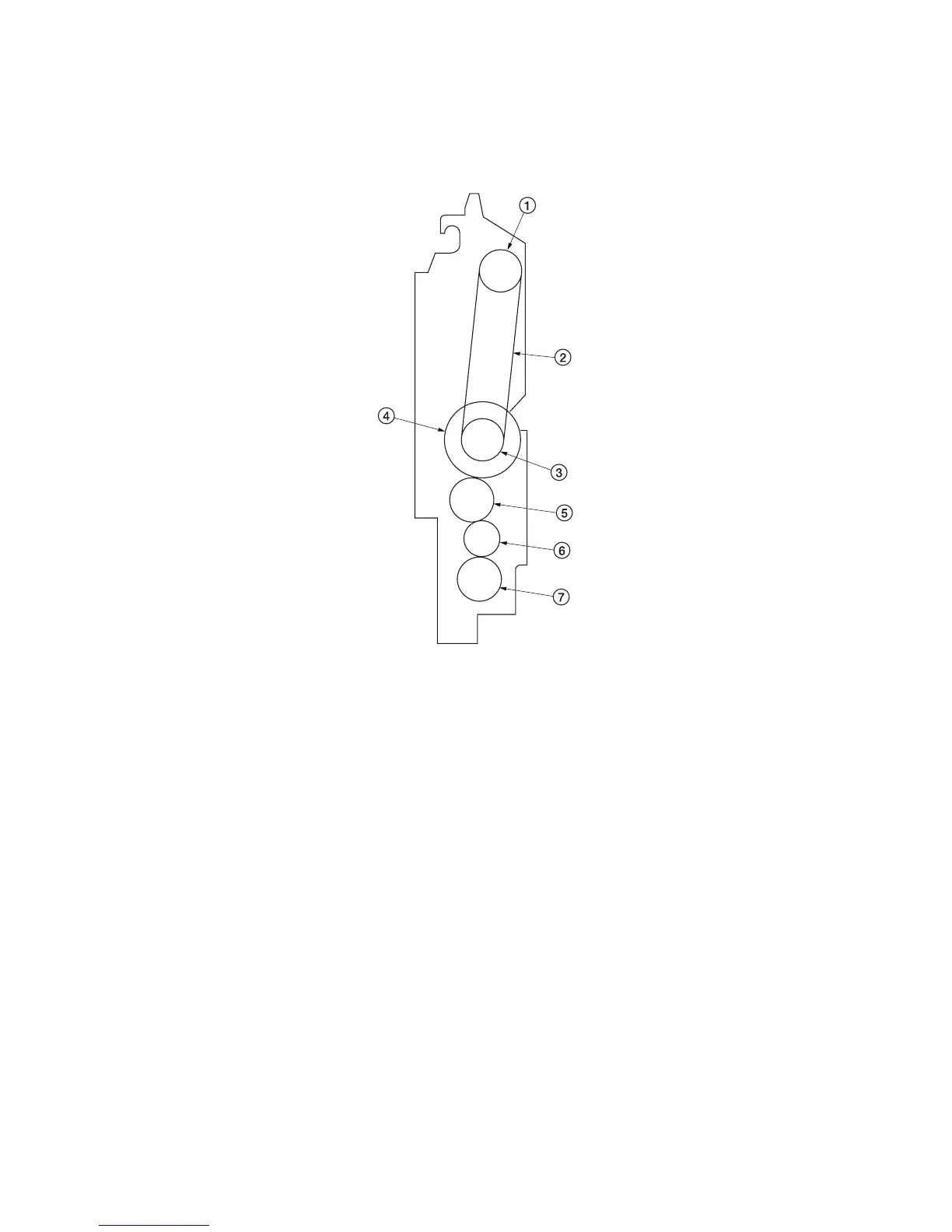

Figure 1-1-6
1 Pulley T30
2 Duplex belt
3 Pulley T30
4 Duplex feed clutch gear
5 Gear 25
6 Idle gear 20
7 Gear 25
(3) Drive system 3 (duplex section)
