Kyocera KM-4035

2FD/2FF/2FG
1-3-31

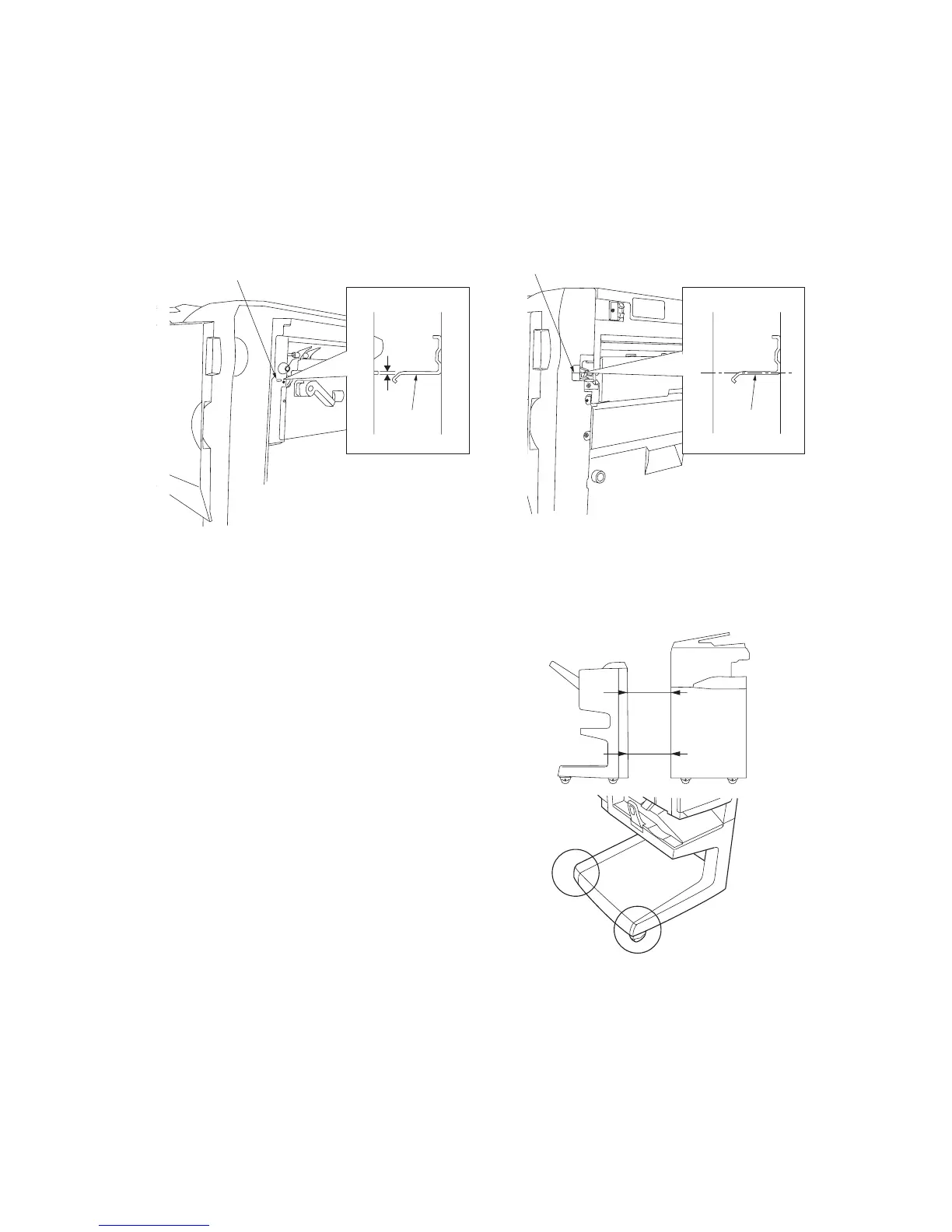

Figure 1-3-67
7. Adjust the height of the left two casters in the
same manner as in step 4 so that the top and
bottom gaps (A) between the finisher and the
copier are the same when the finisher is
detached from the copier.
8. Retighten the two screws on each of the four
casters.
9. Refut the two covers and four caps.
A
A
When the switchback unit is installed
6. Adjust the height of the front right caster in the same manner as in step 4 so that the hook of the latch catch is
aligned with the projection of the switchback unit when the finisher is joined to the copier (viewed from front).
When the switchback unit is not installed
6. Adjust the height of the front right caster in the same manner as in step 4 so that the center of the hook of the latch
catch is aligned with the marking of the finisher when the finisher is joined to the copier (viewed from front).
Projection
Hook
Hook
Marking
Figure 1-3-66
