Kyocera TASKalfa 181 - Page 160

2KJ/2KH
1-5-8
8. Remove the springs, stop ring and bush and
then remove the shaft holder from the upper
paper feed unit.

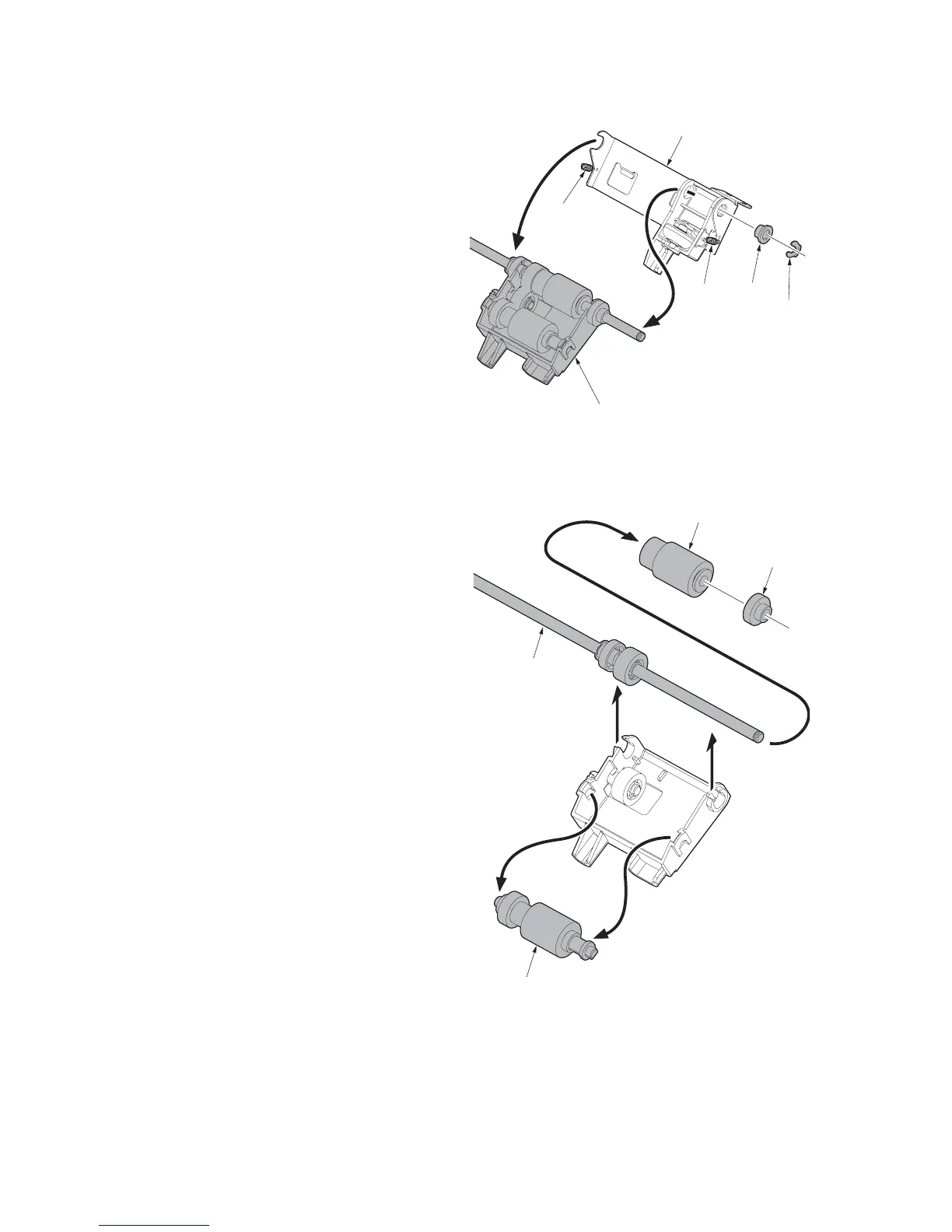

Figure 1-5-12
9. Remove the forwarding pulley from the
upper paper feed unit.
10. Remove the paper feed pulley shaft from the
upper paper feed unit.
11. Remove the collar and the paper feed pulley
from the upper paper feed shaft.
12. Replace the forwarding pulley and paper
feed pulley and refit all the removed parts.
Figure 1-5-13
Upper paper feed unit
Stop ring
Bush
Spring
Spring
Shaft holder
Forwarding pulley
Paper feed
pulley shaft
Paper feed pulley
Collar
