2KJ/2KH
1-3-53

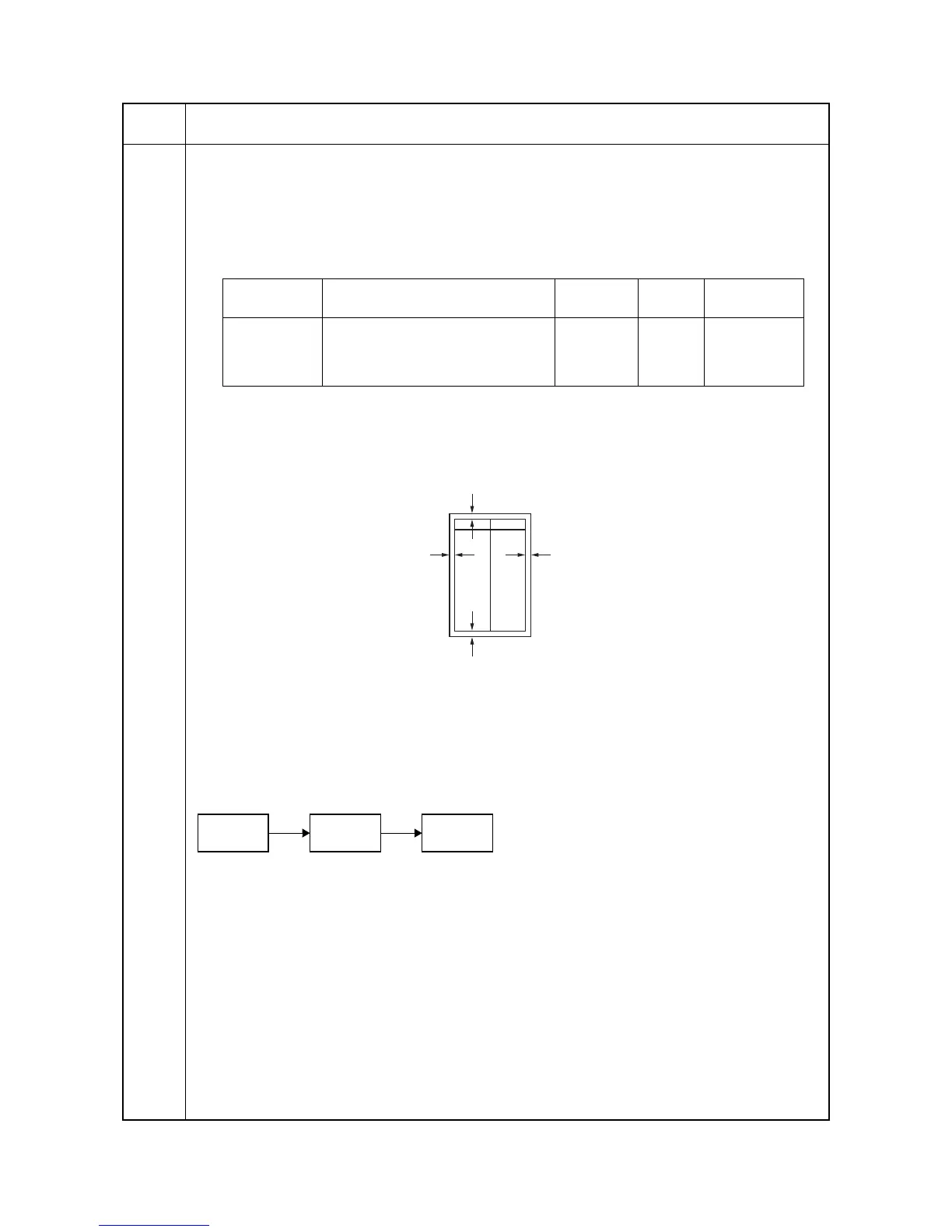

U402
Adjusting margins of image printing
Description
Adjusts margins for image printing.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Select the item to be adjusted using the cursor up/down keys.
3. Press the interrupt key.
4. Press the start key to output a test pattern.
5. Change the setting value using the cursor left/right keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-17
6. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Completion
Press the stop/clear key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
Display Description
Setting
range
Initial
setting
Change in
value per step
LEAD Printer leading edge margin 0 to 10.0 3.0 0.1 mm
AC Printer left and right margin -3.4 to 10.0 3.0 0.1 mm
TRAIL Printer trailing edge margin -5.0 to 10.0 4.0 0.1 mm
Printer leading edge margin
(3.0±1.0 mm)
Printer
left margin
Printer
right margin
Printer trailing edge margin
(3.0±1.0 mm)
(2.5±1.0 mm) (2.5±1.0 mm)
U402
U403
(P.1-3-54)
U404
(P.1-3-55)
