Kyocera TASKalfa 181

2KJ/2KH
2-1-12
2-1-5 Transfer and separation sections
The transfer and separation sections consists of the transfer roller, separation electrode and drum separation claws.
A high voltage generated by the high voltage PWB (HVTPWB) is applied to the transfer roller for transfer charging.
Paper after transfer is separated from the drum by applying separation bias that is output from the high voltage PWB
(HVTPWB) to the separation electrode.

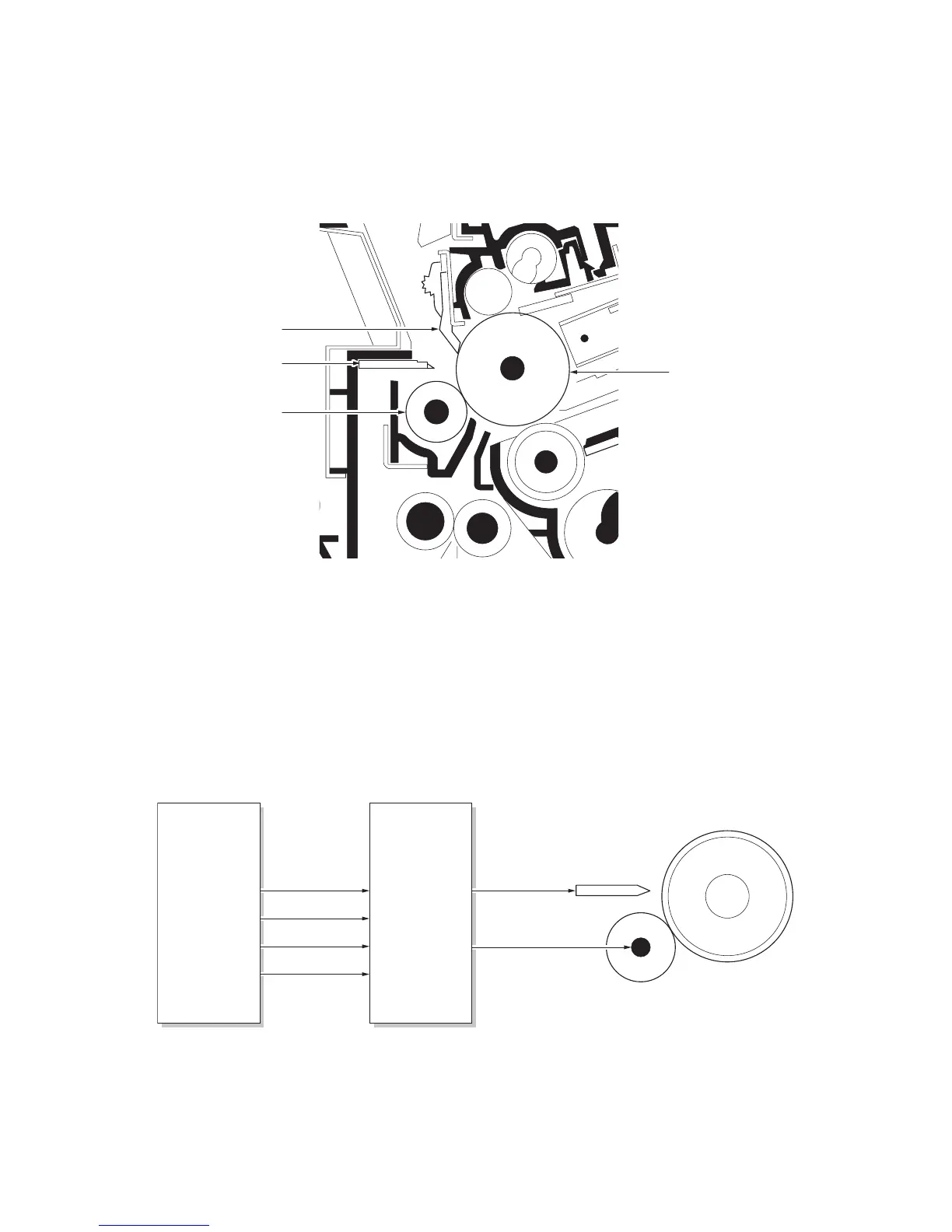

Figure 2-1-12 Transfer and separation sections
Figure 2-1-13 Transfer and separation sections block diagram
3
2
1
4
(1) Transfer roller
(2) Separation electrode
(3) Drum separation claw
(4) Drum
Drum
Transfer roller
Separation
electrode
Separation
high voltage
SHVDRN
Transfe
high voltage
HVTPWB
CN1-6
SHVISELN
CN1-8
THVADJC
CN1-3
THVDRN
CN1-4
EPWB
YC8-6
YC8-8
YC8-3
YC8-4
