Kyocera TASKalfa 181 - Motors

2KJ/2KH
2-2-5
(3) Motors

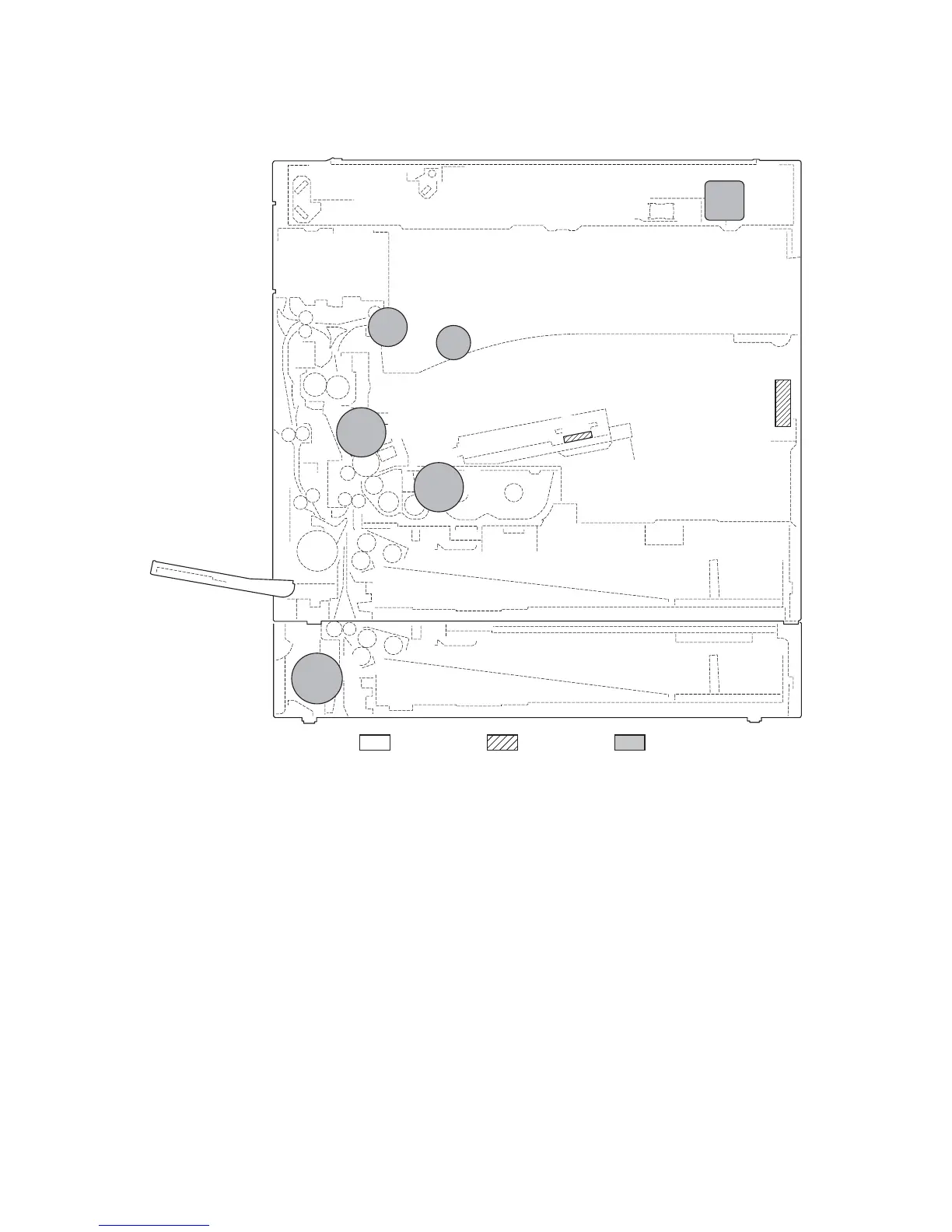

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Drum motor (DRM) ...................................... Drives the drum.
3. Eject motor (EM) .......................................... Drives the eject section.
4. Scanner motor (SM)..................................... Drives the optical system.
5. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
6. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
7. Polygon motor (PM) ..................................... Drives the polygon mirror.
8. Cassette drive motor (CDM)
*1
...................... Drives the paper feeder.
*1: Option for 18 ppm model/standard for 22 ppm model
2
4
1
8
3
7
5
6
Machine front
Machine inside
Machine rear
