Kyocera TASKalfa 181 - Detaching and Refitting the Cassette Forwarding Pulley and Cassette Paper Feed Pulley (22 Ppm Model Only)

2KJ/2KH
1-5-13
(5) Detaching and refitting the cassette forwarding pulley and cassette paper feed pulley (22 ppm model only)
Follow the procedure below to replace the cassette forwarding pulley and cassette paper feed pulley.
Procedure
1. Remove the feed roller (see page 1-5-9).
2. Remove the lower paper feed unit (see page
1-5-11).
3. Remove the screw and the pin and then
remove the cassette rear cover.

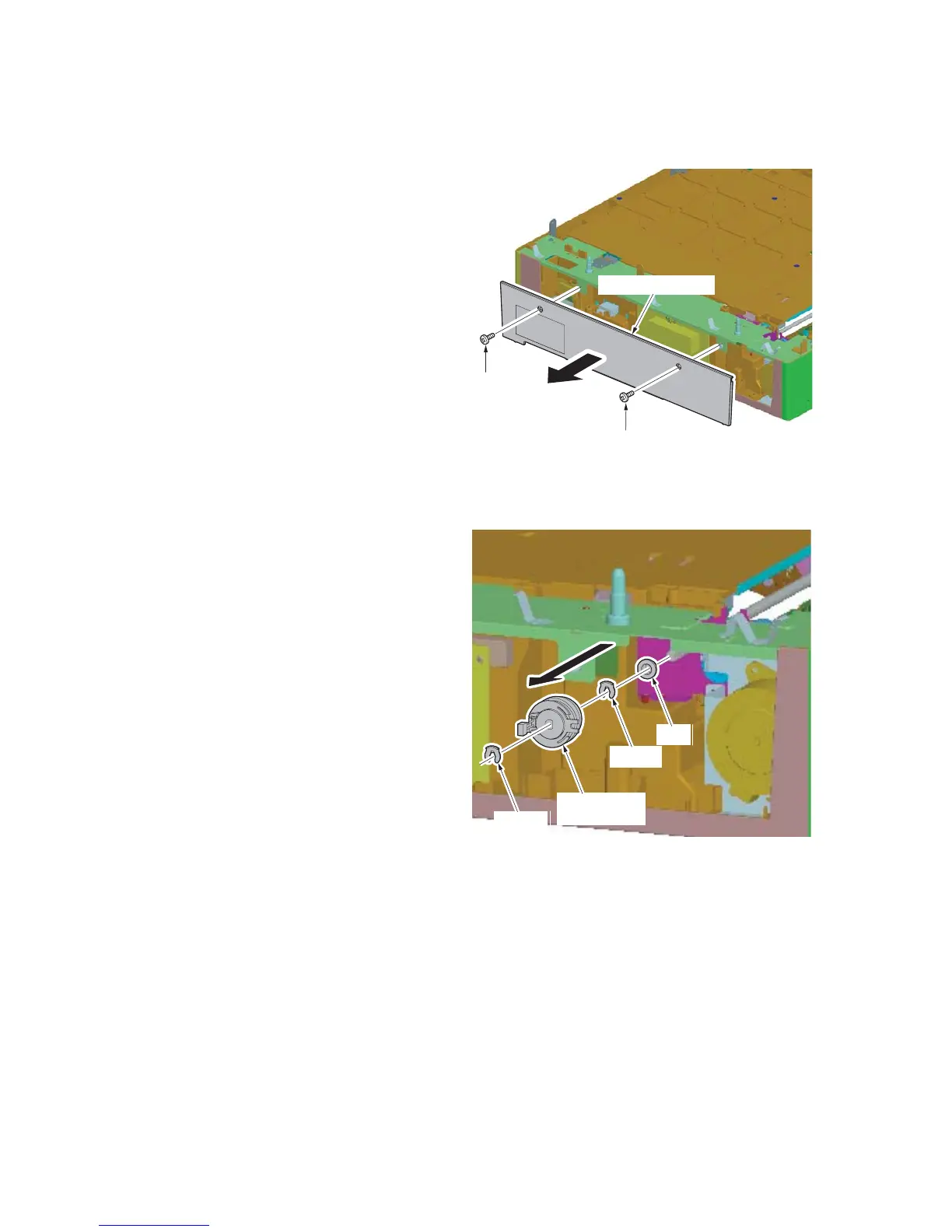

Figure 1-5-20
4. Remove the connector of the cassette paper
feed clutch.
5. Remove the stop ring and remove the cas-
sette paper feed clutch.
6. Remove the stop ring and the bush.
Figure 1-5-21
Screw
Pin
Cassette rear cover
Cassette paper
feed clutch
Stop ring
Stop ring
Bush
