2-1 Mechanical construction
2-1-1 Paper feed section
The paper feed section conveys paper from the cassette (one cassette is standard for 18 ppm model/two cassettes are
standard for 22 ppm model) or MP tray to the left and right registration rollers, at which point secondary feed takes place
and the paper travels to the transfer section in sync with the printing timing.
Cassette can hold up to 300 (80 g/m
2
) sheets of paper. Paper is fed from the cassette by the rotation of the forwarding pul-
ley and paper feed pulley. The separation pulley prevents multiple sheets from being fed at one time, via the torque limiter.
The MP tray can hold up to 100 (80 g/m
2
) sheets of paper. Paper is fed from the MP tray by the rotation of the MP paper
feed pulley.

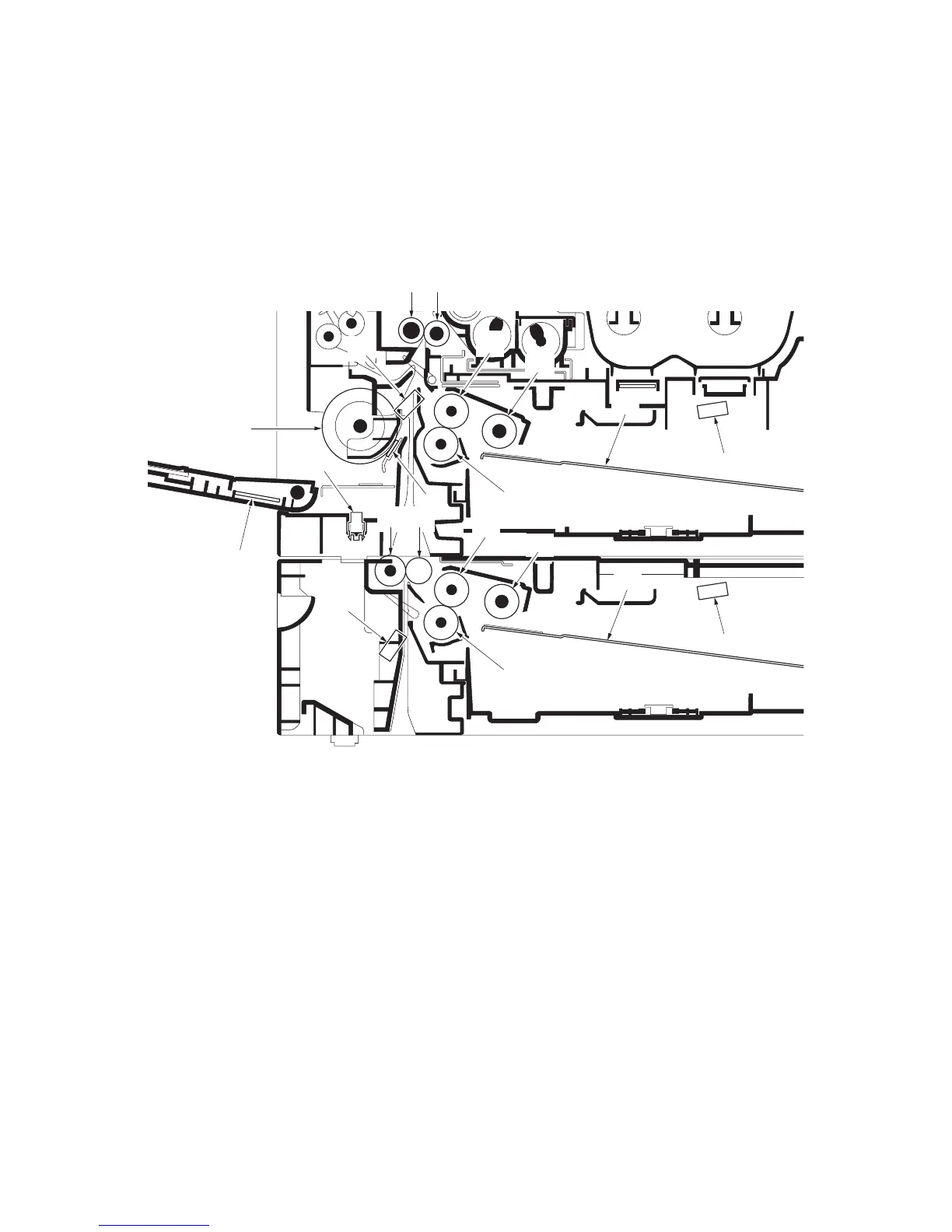

Figure 2-1-1 Paper feed section
5
12
10
20
2
9
19
87
1817
1
4
3
6
11
14
13
16
15
(1) Forwarding pulley
(2) Paper feed pulley
(3) Separation pulley
(4) Cassette base
(5) MP paper feed pulley
(6) MP separation pad
(7) Left registration roller
(8) Right registration roller
(9) Registration switch (RSW)
(10) Paper switch (PSW)
(11) MP paper switch (MPPSW)
(12) MP paper size width switch (MPPWSW)
(13) Cassette forwarding pulley*
(14) Cassette paper feed pulley*
(15) Cassette separation pulley*
(16) Cassette base*
(17) Feed pulley*
(18) Feed roller*
(19) Cassette feed switch (CFSW)*
(20) Cassette paper switch (CPSW)*
*: 22 ppm model only.
