(5) Detaching and refitting the heat roller
Follow the procedure below to replace the heat roller.
Procedure
1. Separate the right and left fuser unit (see
page 1-5-49).
2. Remove the fuser heater (see page 1-5-51).
3. Remove the heat roller separation claws
(see page 1-5-54).
4. Press the heat roller bush in the rear side of
the right fuser unit from outside to make the
roller removable.

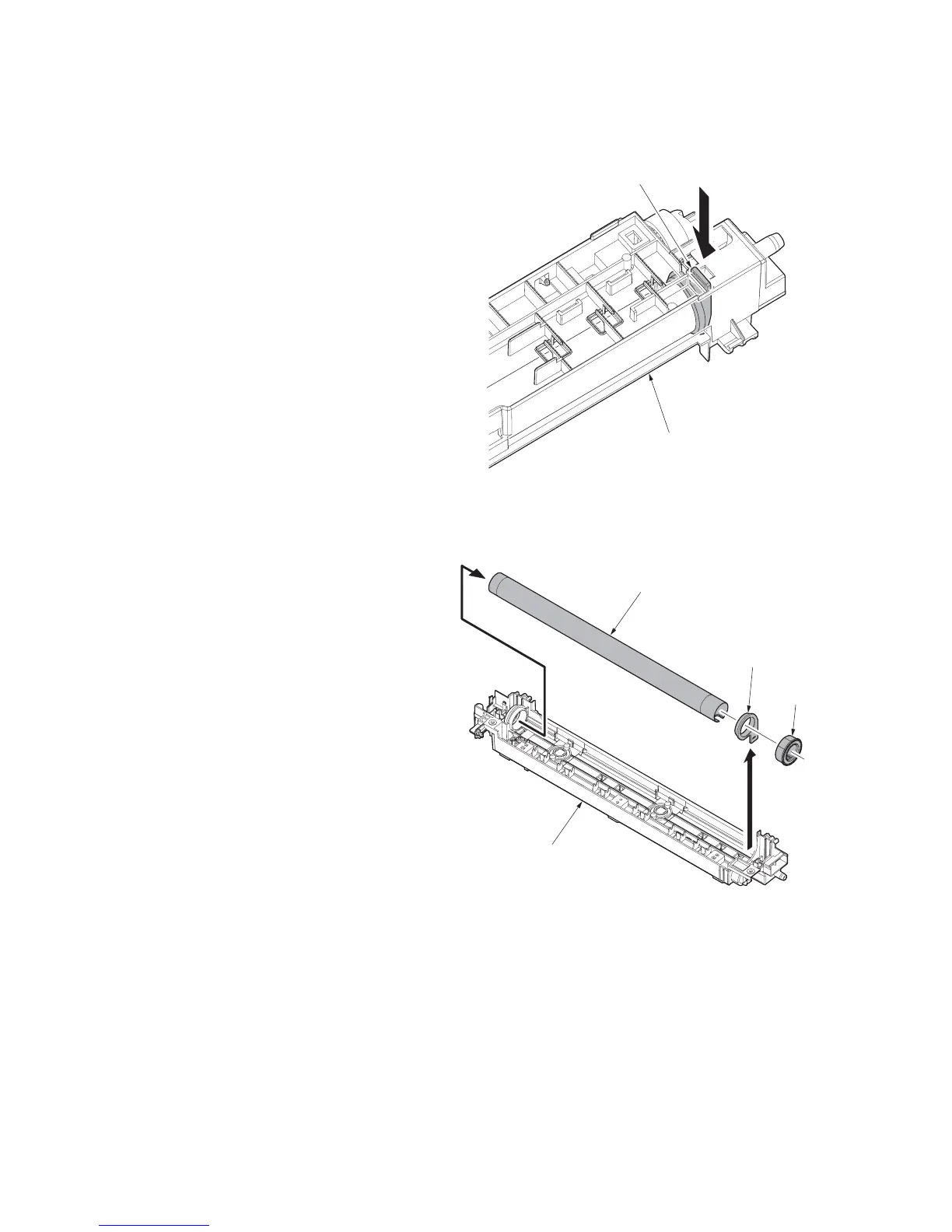

Figure 1-5-92
5. Remove the heat roller, heat roller bush and
heat roller gear.
Caution
Remove the heat roller, with the heat roller
bush in the front side being mounted.
Figure 1-5-93
Heat roller bush
Right fuser unit
Heat roller
Right fuser unit
Heat
roller bush
Heat
roller gea
r
