Kyocera TASKalfa 181 - Fuser Section; Detaching and Refitting the Fuser Unit

2KJ/2KH
1-5-47
1-5-7 Fuser section
Caution
(1) Detaching and refitting the fuser unit
Follow the procedure below to check or replace the fuser unit.
Procedure
1. Open the front cover and left cover.
2. Remove the screw and release three
inserted parts and then remove the front left
cover.

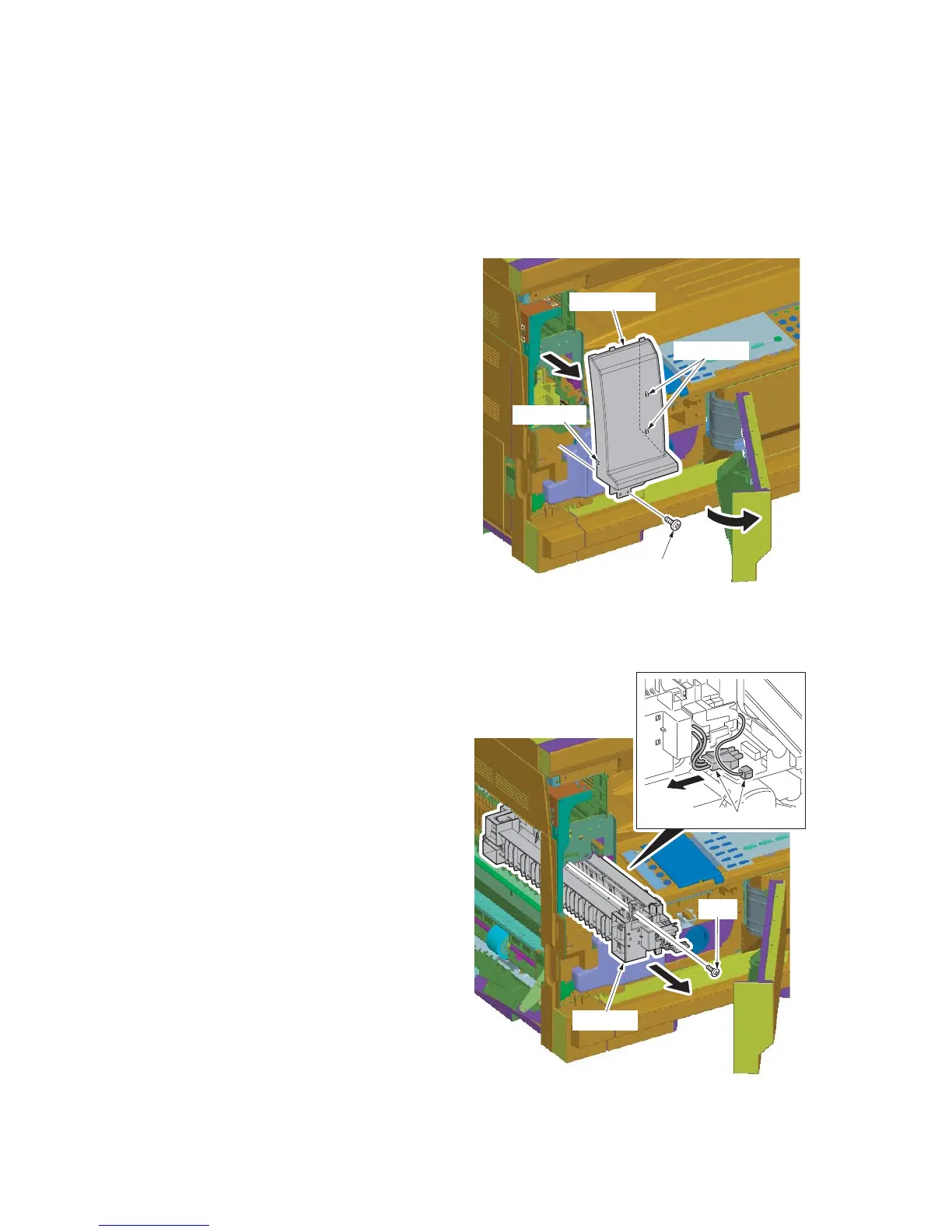

Figure 1-5-78
3. Remove the screw and two connectors and
then remove the fuser unit.
Figure 1-5-79
Front left cover
Inserted part
Screw
Inserted part
Fuser unit
Screw
Connectors
