2-1-8 Duplex section
In duplex mode, after copying on to the reverse face of the paper, the paper is reversed in the switchback section and con-
veyed to the duplex unit. The paper is then conveyed to the paper feed section by the upper and lower duplex feed rollers.

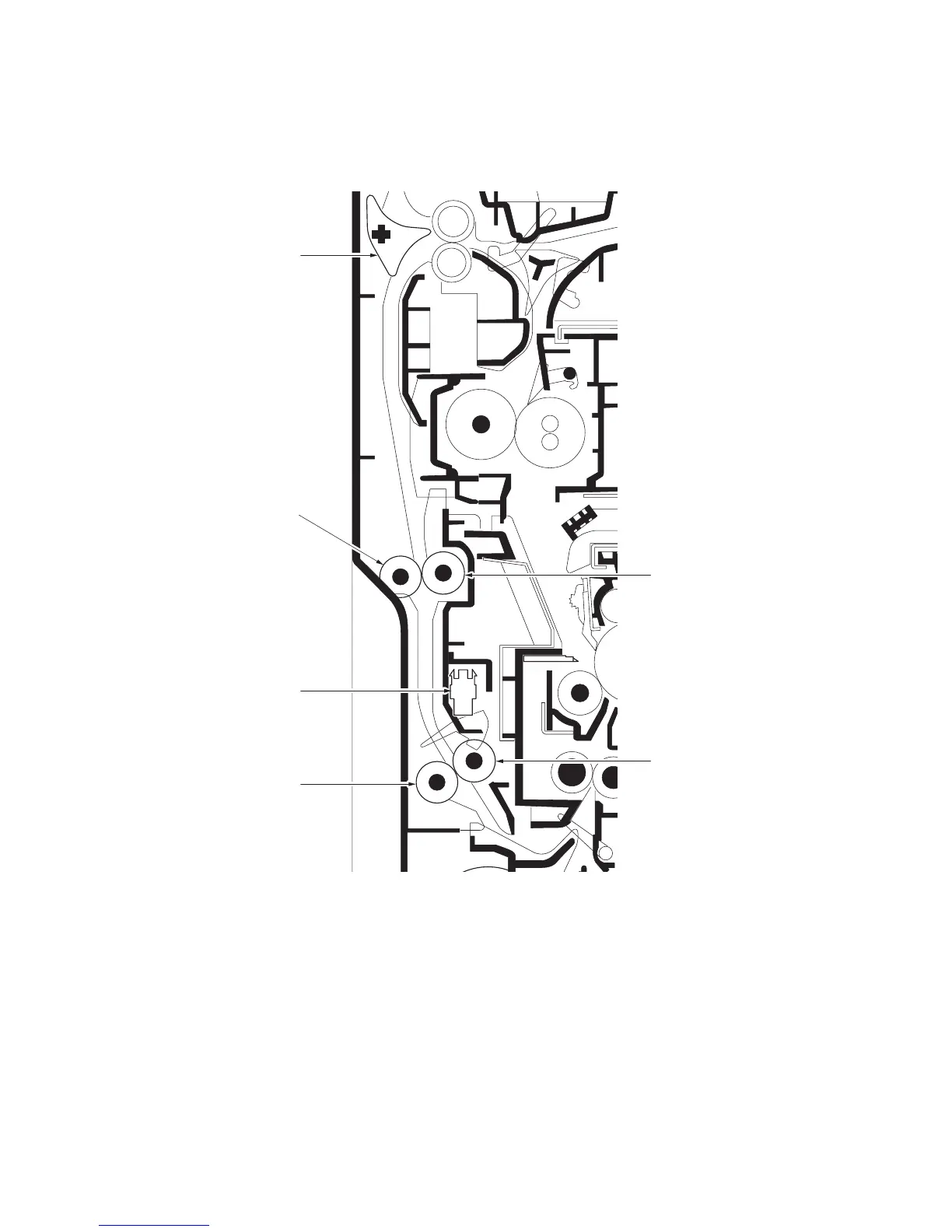

Figure 2-1-18 Duplex section
1
3
5
6
4
2
(1) Feedshift guide
(2) Duplex feed pulley
(3) Upper duplex feed roller
(4) Duplex feed pulley
(5) Lower duplex feed roller
(6) Duplex paper conveying switch (DUPPCSW)
