Kyocera TASKalfa 181 - Detaching and Refitting the Scanner Wires; Detaching the Scanner Wires

2KJ/2KH
1-5-26
(2) Detaching and refitting the scanner wires
Take the following procedure when the scanner wires are broken or to be replaced.
(2-1) Detaching the scanner wires
Procedure
1. Remove the exposure lamp (see page 1-5-
24).
2. Open the left cover.
3. Release six hooks and both and then
remove the left middle cover.

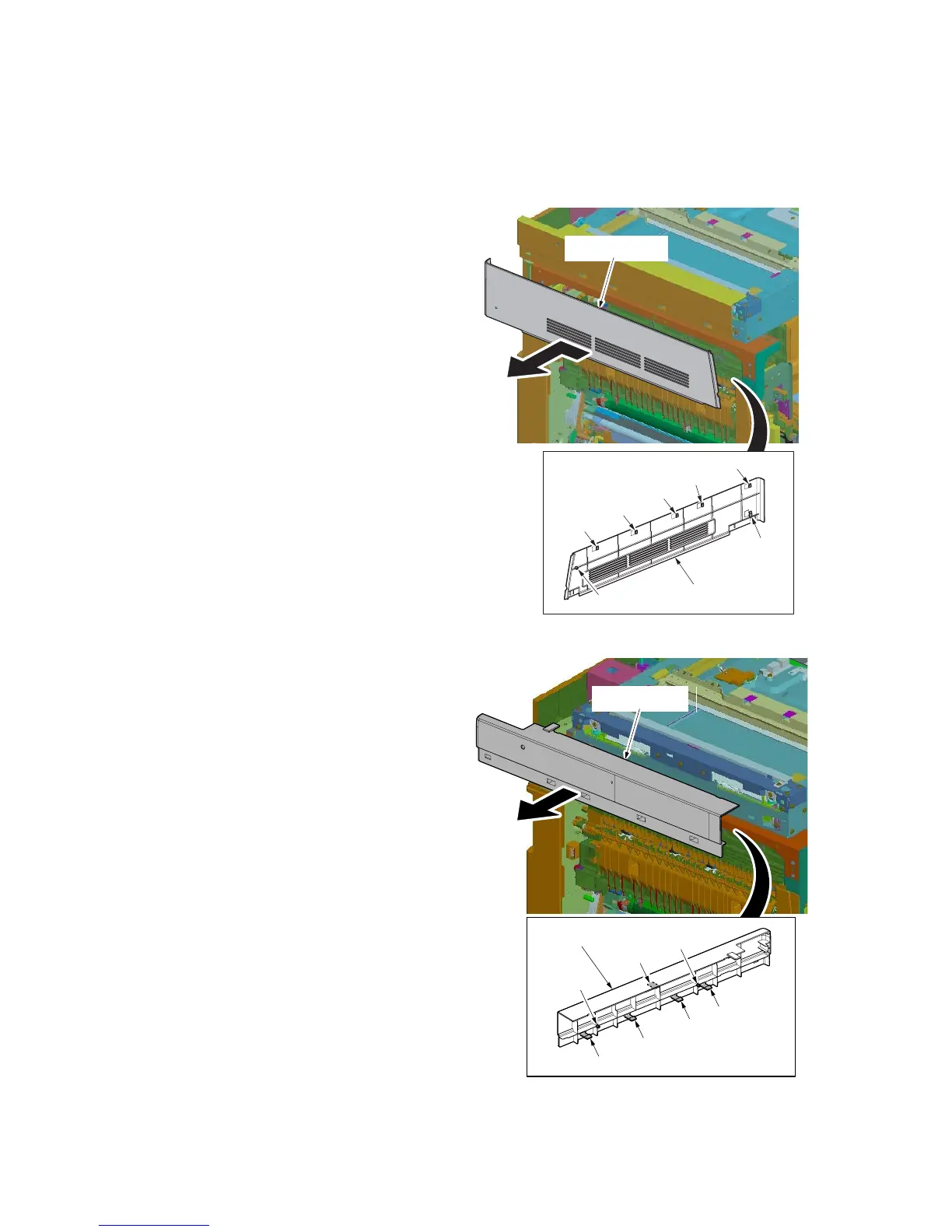

Figure 1-5-43
4. Release five hooks and two bothes and then
remove the left upper cover.
Figure 1-5-44
Left middle cover
Hook
Hook
Left middle cover
Both
Hook
Hook
Hook
Hook
Left upper cover
Left upper cover
Hook
Hook
Both
Both
Hook
Hook
Hook
