Kyocera TASKalfa 181 - Detaching and Refitting the ISU (Reference)

2KJ/2KH
1-5-33
(3) Detaching and refitting the ISU (reference)
Follow the procedure below to replace the ISU.
Procedure
1. Remove the contact glass (see page 1-5-
24).
2. Remove four screws and remove the ISU
cover.

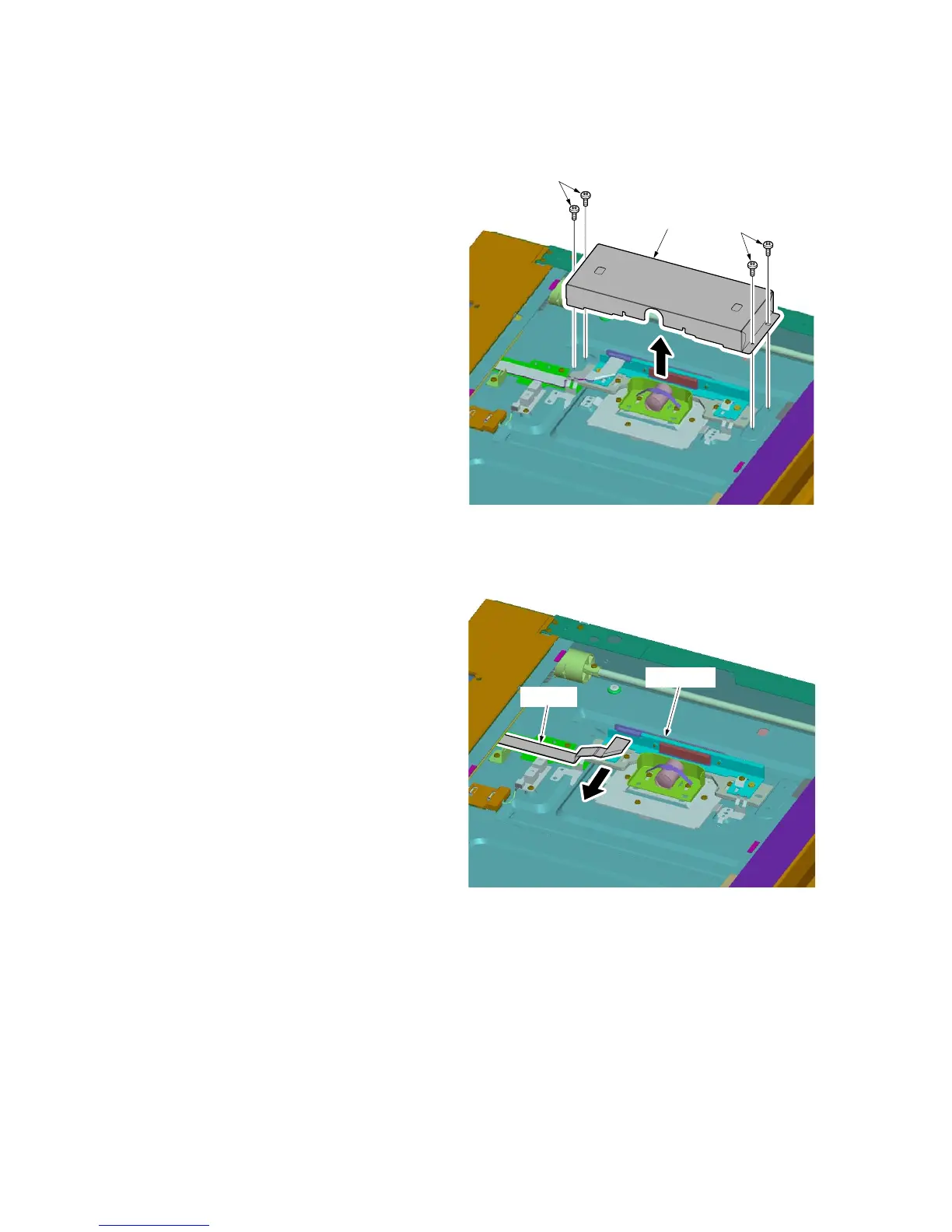

Figure 1-5-56
3. Remove the CCD wire from the CCD PWB.
Figure 1-5-57
ISU cover
Screws
Screws
CCD wire
CCD PWB
