Kyocera TASKalfa 181

2KJ/2KH
1-5-49
(2) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fuser unit (see page 1-5-47).
2. Remove two screws and open the fuser unit.
3. Separate the right and left fuser unit.

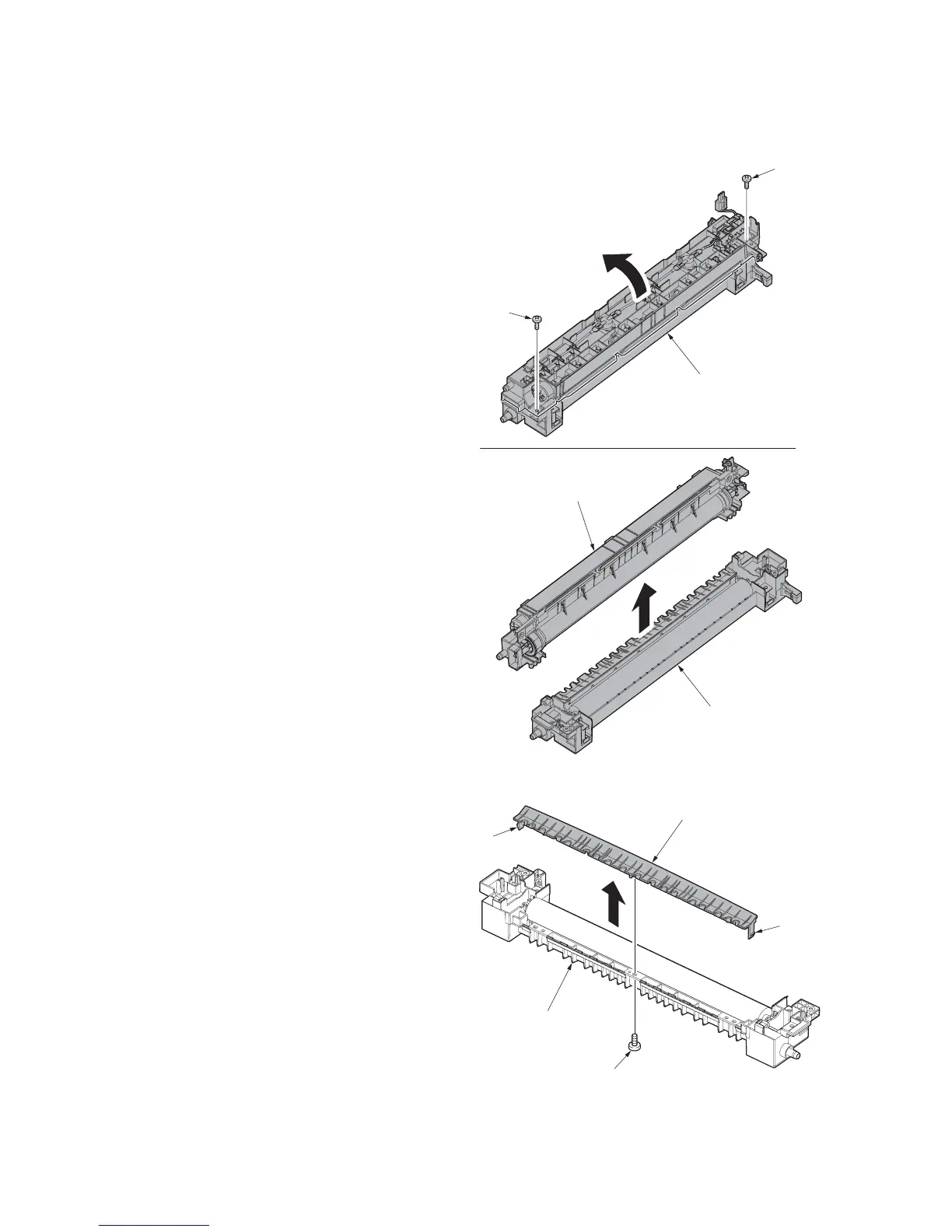

Figure 1-5-81
4. Remove the screw and release two hooks
and then remove the press roller guide from
the left fuser unit.
Figure 1-5-82
Right fuser unit
Left fuser unit
Fuser unit
Screw
Screw
Press roller guide
Hook
Hook
Screw
Left fuser unit
