2KJ/2KH
1-5-10
4. Open the cassette left cover.
5. Remove the stop ring from rear side of the
feed roller and slide the bush toward the
inside.
6. Lift the rear of the feed roller upward. Slide
the feed roller toward the rear side and
remove the roller from the paper feeder.

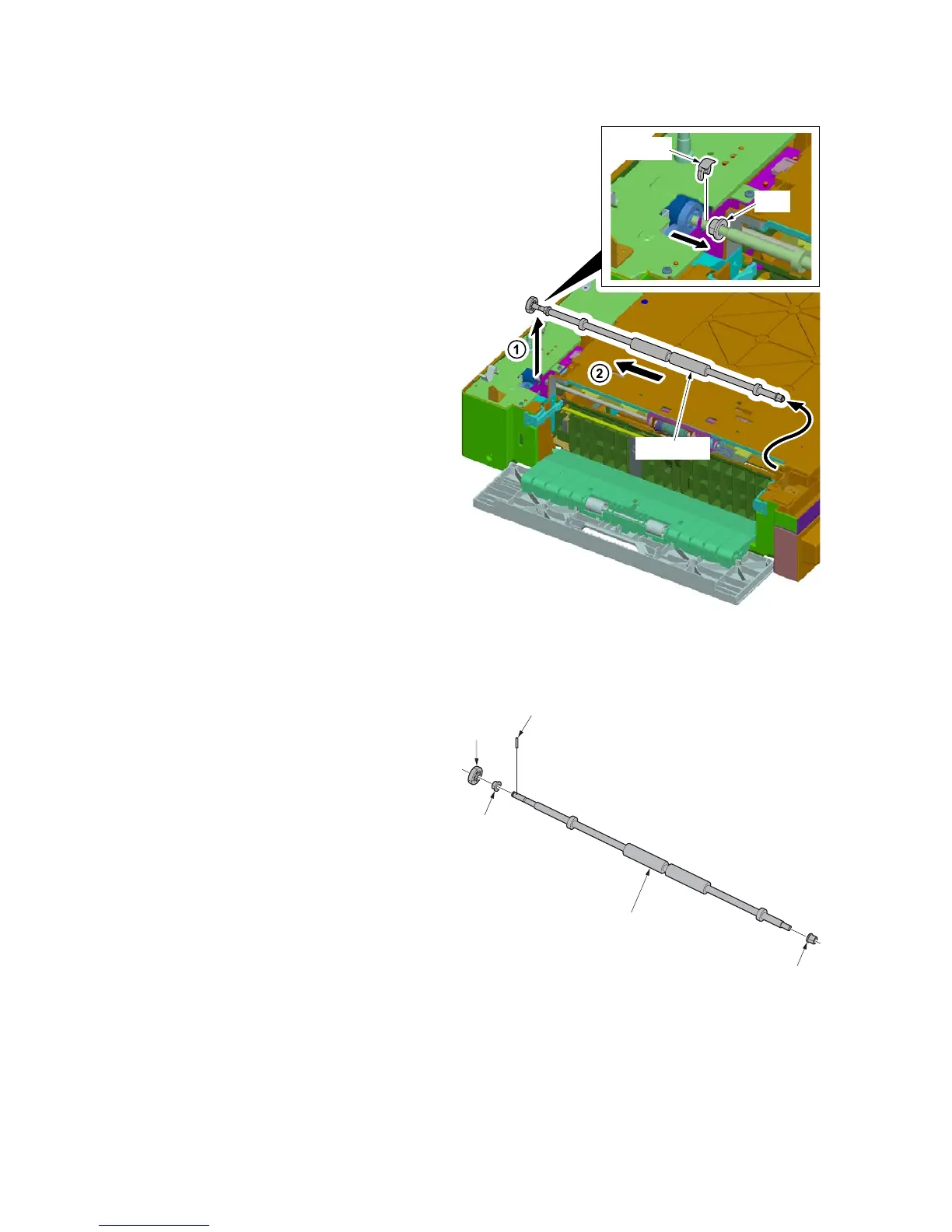

Figure 1-5-15
7. Remove the gear, spring pin and two
bushes from the feed roller.
8. Replace the feed roller and refit all the
removed parts.
Figure 1-5-16
Feed roller
Stop ring
Bush
Feed roller
Bush
Gear
Spring pin
Bush
To Next Page
