X-Stream Operator’s Manual
WM-OM-E Rev I 109

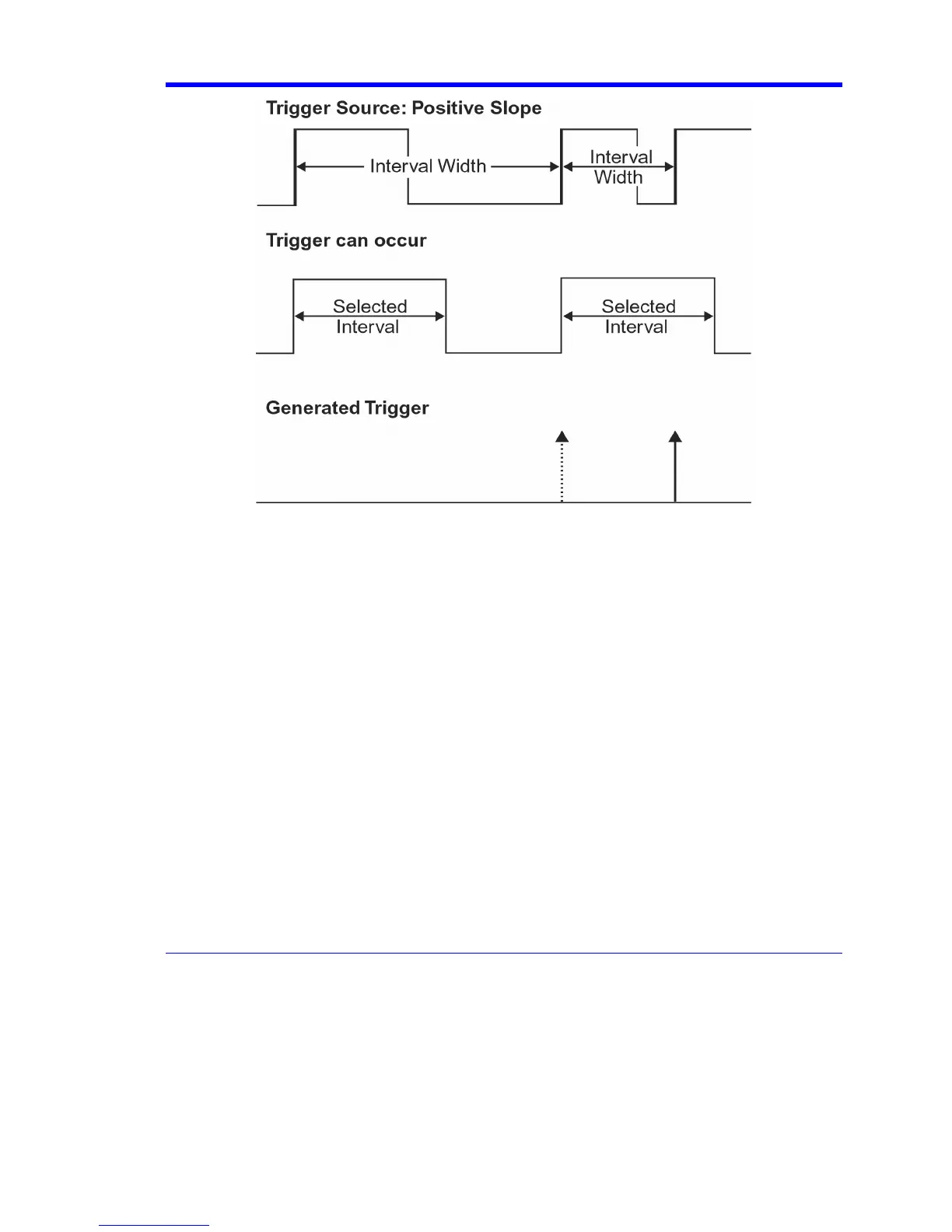

Interval Trigger that triggers when the interval width is smaller than the selected interval. The broken,
upward-pointing arrow indicates a potential trigger, while the bold one shows where the actual trigger occurs on
the positive edge within the selected interval.
Interval Greater Than: For this Interval Trigger, generated on an interval larger than the one that
you set, select a minimum interval between two edges of the same slope. The instrument
generates the trigger on the second edge if it occurs after the set interval. The timing for the interval
is initialized and restarted whenever the selected edge occurs. You can set an interval from 2 ns to
20 s.
