76 WM-OM-E Rev I

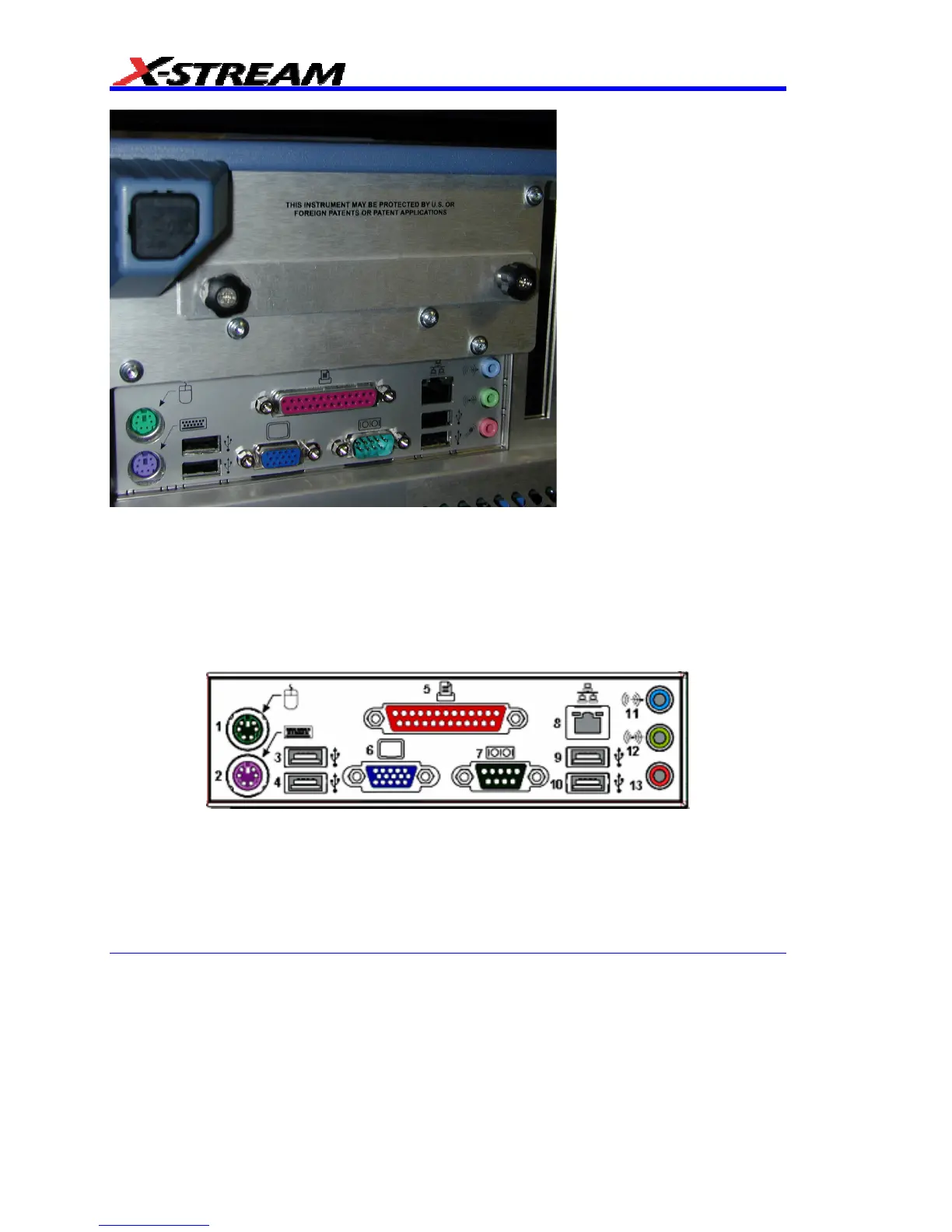

Protective Cover
External Monitor
If your X-Stream scope's processor runs at greater than 1 GHz, the external monitor must be
configured manually. You can find out your processor's speed by touching Utilities in the menu bar,
then touching the Status tab of the "Utilities" dialog. If the speed is greater than 1 GHz, proceed as
follows:
1. Connect the external monitor to the VGA port at the rear of the instrument (item 6 in the
diagram).
2. Plug in the monitor's power cord, and apply power to the monitor.
3. After boot-up, touch Display in the menu bar, then Display Setup... in the drop-down
menu.
4. Touch the Monitor tab of the "Display" dialog:
