64 WM-OM-E Rev I
INSTALLATION
Hardware
Instrument Rear Panel

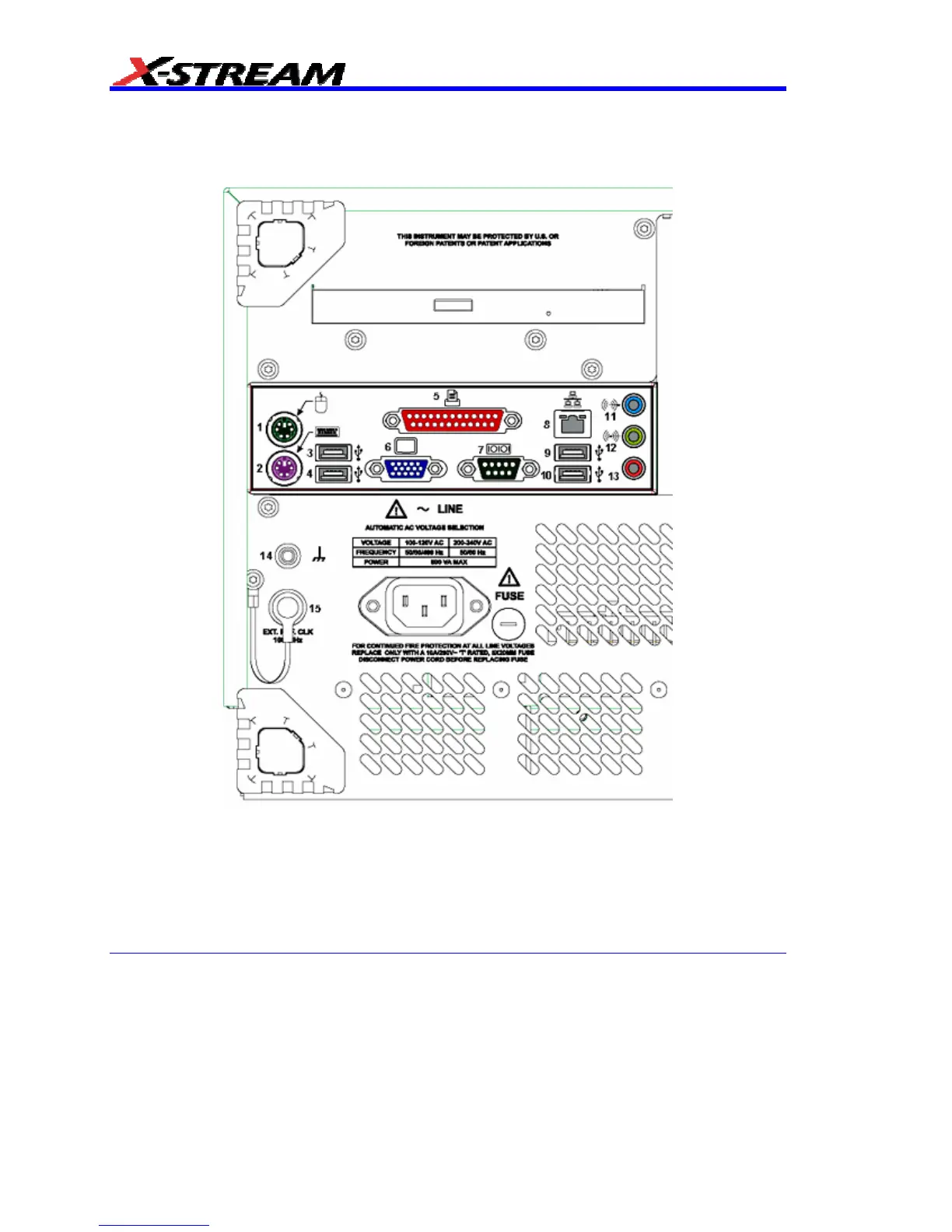

(1) Mouse; (2) Keyboard; (3) USB Port; (4) USB Port; (5) Centronics Port; (6) External VGA Monitor; (7) RS-232-C
Port; (8) Ethernet Port; (9) USB Port; (10) USB Port; (11) Line In; (12) Speakers; (13) Microphone; (14) Ground
Connector; (15) External Clock Input with Grounded EMI Shield installed (required when port is not in use)
Software
Checking the Scope Status
To find out the scope's software and hardware configuration, including software version and
