X-Stream Operator’s Manual

WM-OM-E Rev I 343

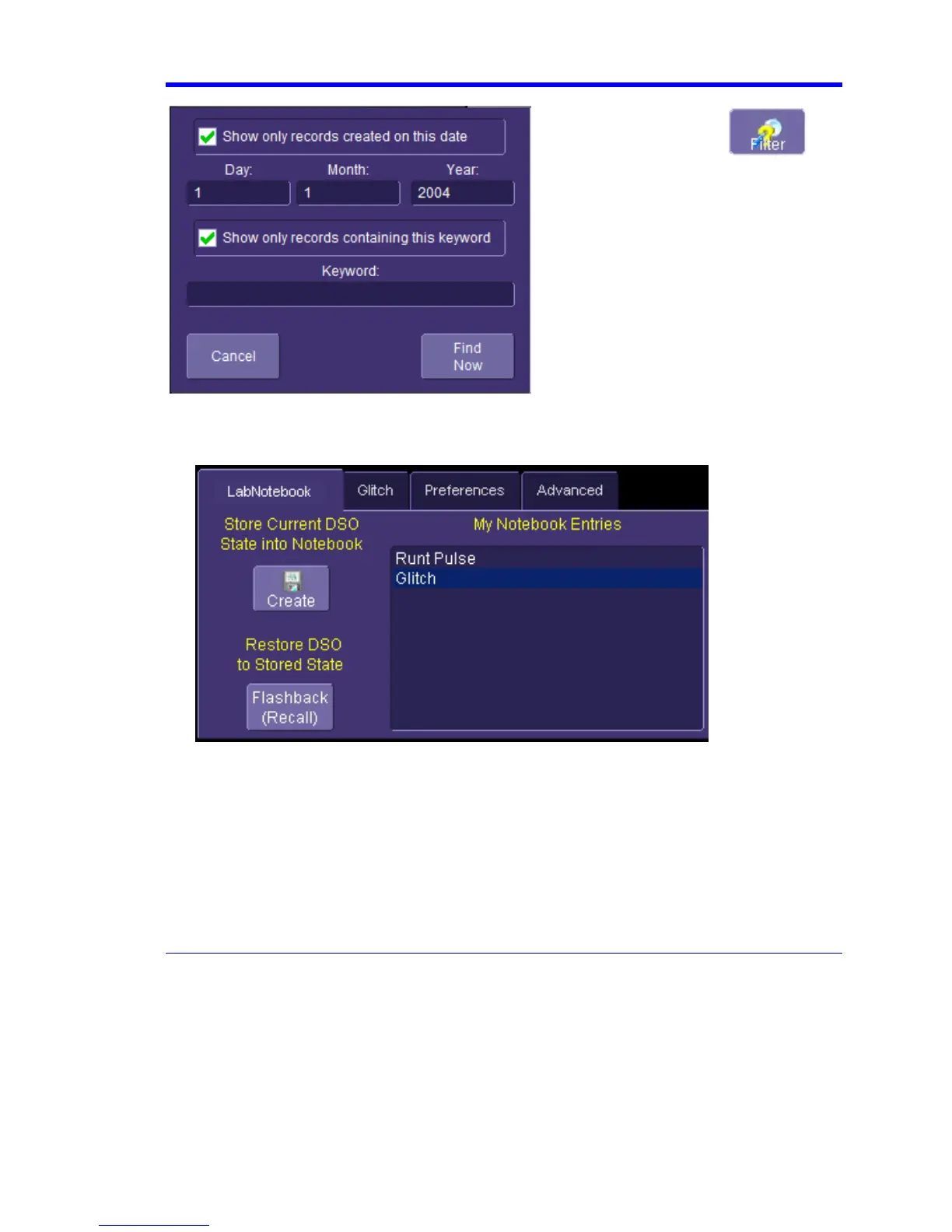

1. Touch the Filter button . A

search dialog box opens.

2. Touch inside the Day, Month, and Year

fields and enter a date. Or touch inside

the Keyword field and enter a keyword

or phrase.

3. Touch Find Now. Only the entries fitting

the date or keyword criteria will now

appear in the list box.

Creating the Report

1. Select a notebook entry in the list box
