X-Stream Operator’s Manual
WM-OM-E Rev I 183

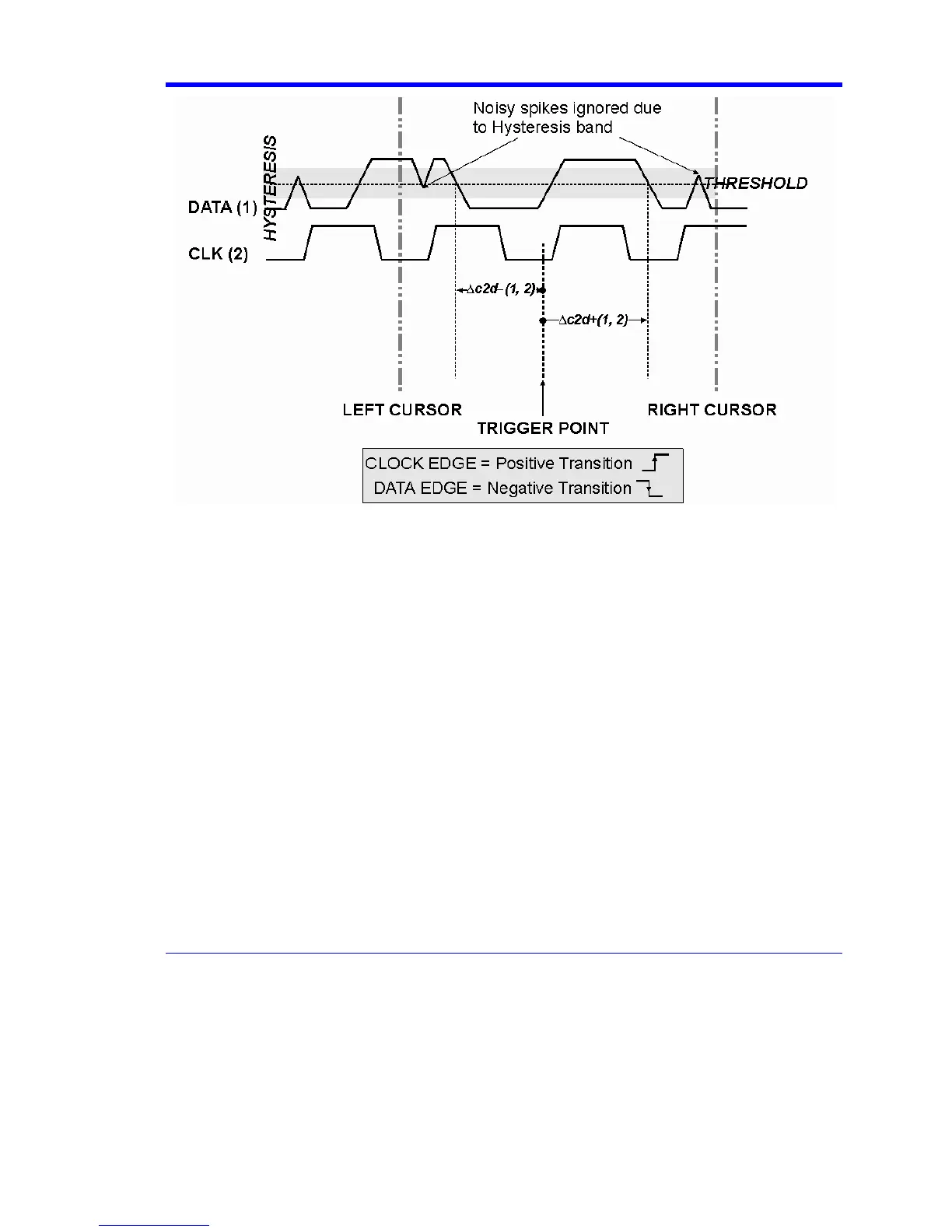

Figure 3
Moreover, a hysteresis range may be specified to ignore any spurious transition that does not
exceed the boundaries of the hysteresis interval. In Figure 3, Delta c2d- (1, 2) measures the time
interval separating the rising edge of the clock (trigger) from the first negative transition of the data
signal. Similarly, Delta c2d+ (1, 2) measures the time interval between the trigger and the next
transition of the data signal.
Level and Slope
For several time based measurements, you can choose positive, negative, or both slopes to begin
parameter measurements. For two-input parameters, such as Dtime@level, you can specify the
slope for each input, as well as the level and type (percent or absolute).
