LeCroy WaveMaster 8600A User Manual

244 WM-OM-E Rev I

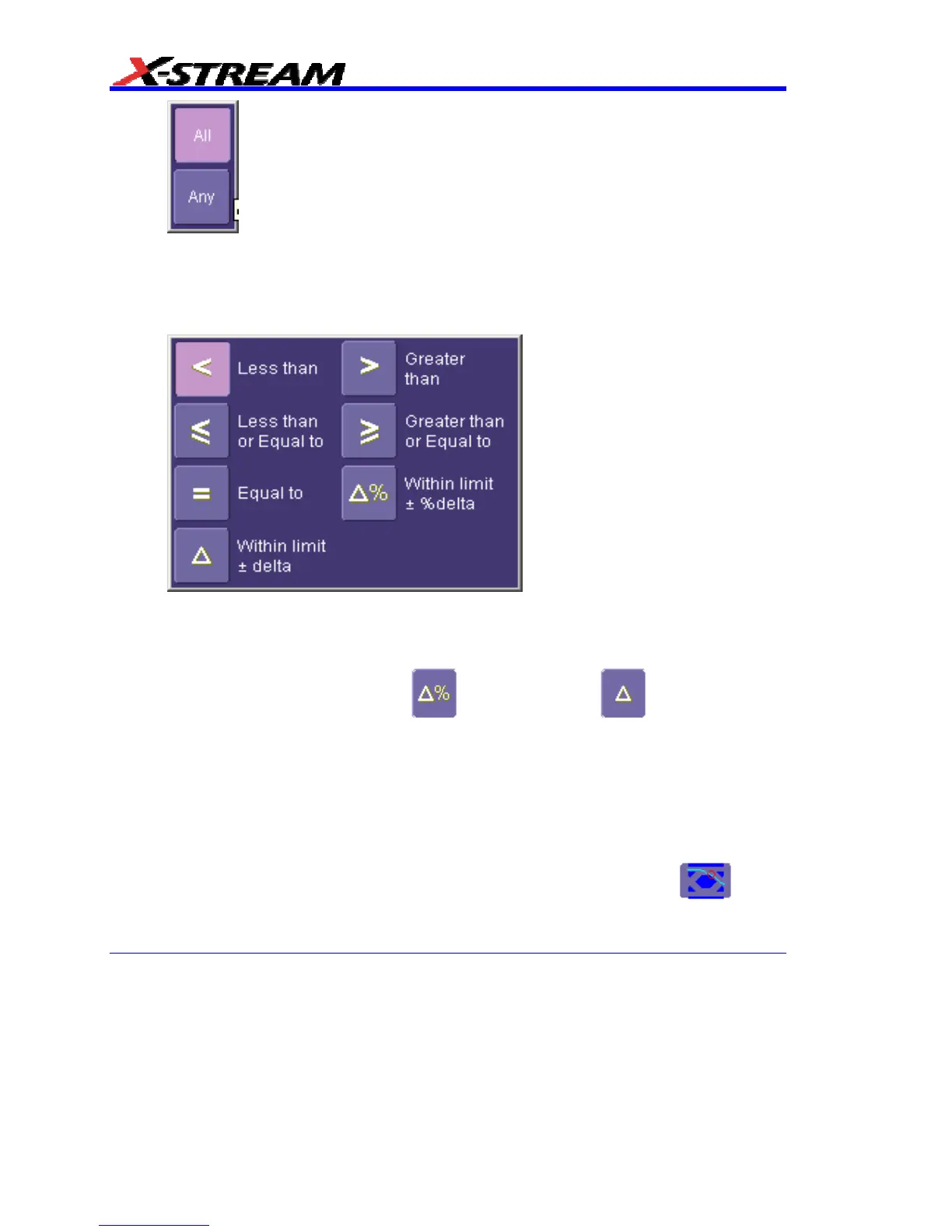

. By selecting All, the test will be true only if every waveform falls within the limit
that you will set. By selecting Any, the test will be true if just one waveform falls within the
limit.
7. Touch inside the Condition field in the "ParamCompare" mini-dialog and select a math
operator from the pop-up menu:
.
8. Touch inside the Limit field and enter a value, using the pop-up numeric keypad. This
value takes the dimension of the parameter that you are testing. For example, if you are
testing a time parameter, the unit is seconds.
9. If you chose either WithinDeltaPct
or WithinDeltaAbs from the Condition
menu, touch inside the Delta field and enter a value.
Mask Testing
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch a Qx tab; a setup dialog for that position will open.
3. Touch inside the Source1 field and select a source from the pop-up menu.
4. Touch inside the Condition field in the main dialog and select Mask Test
.
5. From the "Test" mini-dialog, make a selection in the Test is True when group of buttons.

LeCroy WaveMaster 8600A Specifications

General

Bandwidth	6 GHz
Sample Rate	20 GS/s
Channels	4
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Input Impedance	50 Ω, 1 MΩ
Input Voltage Range	±1 V (50 Ω), ±5 V (1 MΩ)
Trigger Modes	Edge, Pattern, Video
Display	10.4 inch Color LCD
Interface	USB, Ethernet, GPIB
Operating Temperature	0 to 50 °C
Weight	40 lbs (18.2 kg)
