LeCroy WaveMaster 8600A User Manual

X-Stream Operator’s Manual
WM-OM-E Rev I 337
LABNOTEBOOK
Introduction to LabNotebook
LeCroy's LabNotebook feature extends the documentation capabilities of your scope. It allows you
to create an annotated notebook entry containing all displayed waveforms, the setup of the scope,
and user-supplied annotation. The notebook entry can then be converted to hardcopy format -- pdf,
rtf, or html -- and printed or e-mailed. You can also use the default report layout or configure your
own, and even substitute your own company logo in the header.
Notebook entries are stored in an internal database and are available for recall at any time. Besides
storing the waveform data, LabNotebook also stores your panel setups and parameter
measurements. You have the capability to back up the database to external media.
The Flashback feature allows you to recall the state of the scope at a later date, including the saved
waveforms and the scope setup, so that you can make additional measurements. A keyword filter
makes it easy to find the correct notebook entry to recall.
You can choose which notebook to use for your entries, and label the notebook by project or user.
If the scope is shared among several users, for example, or used for different projects, the data can
be kept separately. Similarly, hardcopy reports can be stored in different folders.
Preferences
You should set your preferences before creating notebook entries.

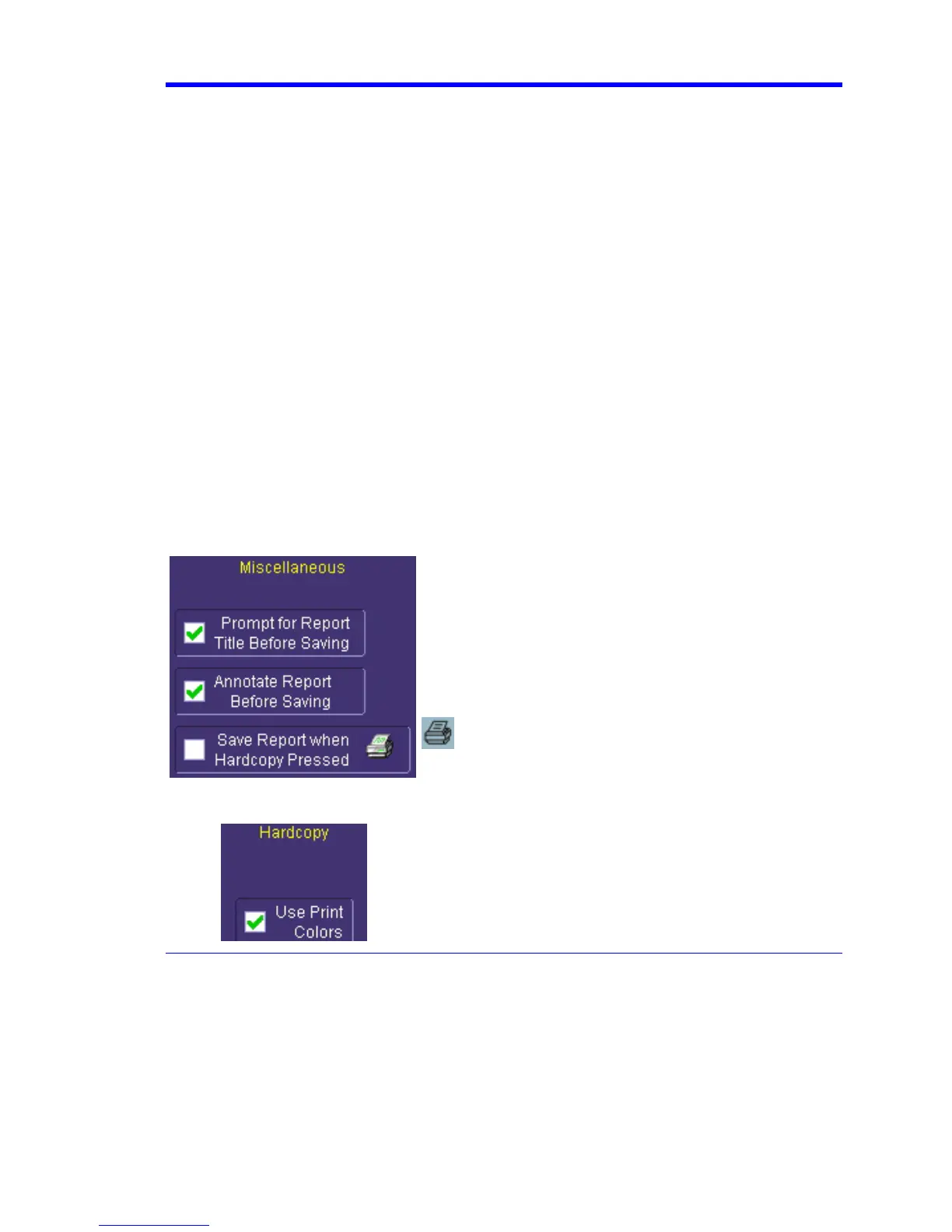

Miscellaneous Settings
You can elect to name notebook entries with the default date
and time by leaving the top box unchecked. Check the box if
you want the opportunity to rename the notebook entry as
soon as it is created.
Check the middle box if you want to be able to annotate a
notebook entry as soon as it is created.
Check the last box if you want to generate a notebook entry
by simply touching the Hardcopy (Print) front panel button
. By checking this box, you override any other
configuration for this button; for example, send e-mail or
output to printer.
Hardcopy Setup
Check the Use Print Colors checkbox to place your
waveforms on a white background in the notebook entry. This
will save printer ink later when you print the hardcopy report.
Touch inside Hardcopy Area to determine how much of the
screen image to include in the report: grid area only, grid area
plus dialog, whole screen.
